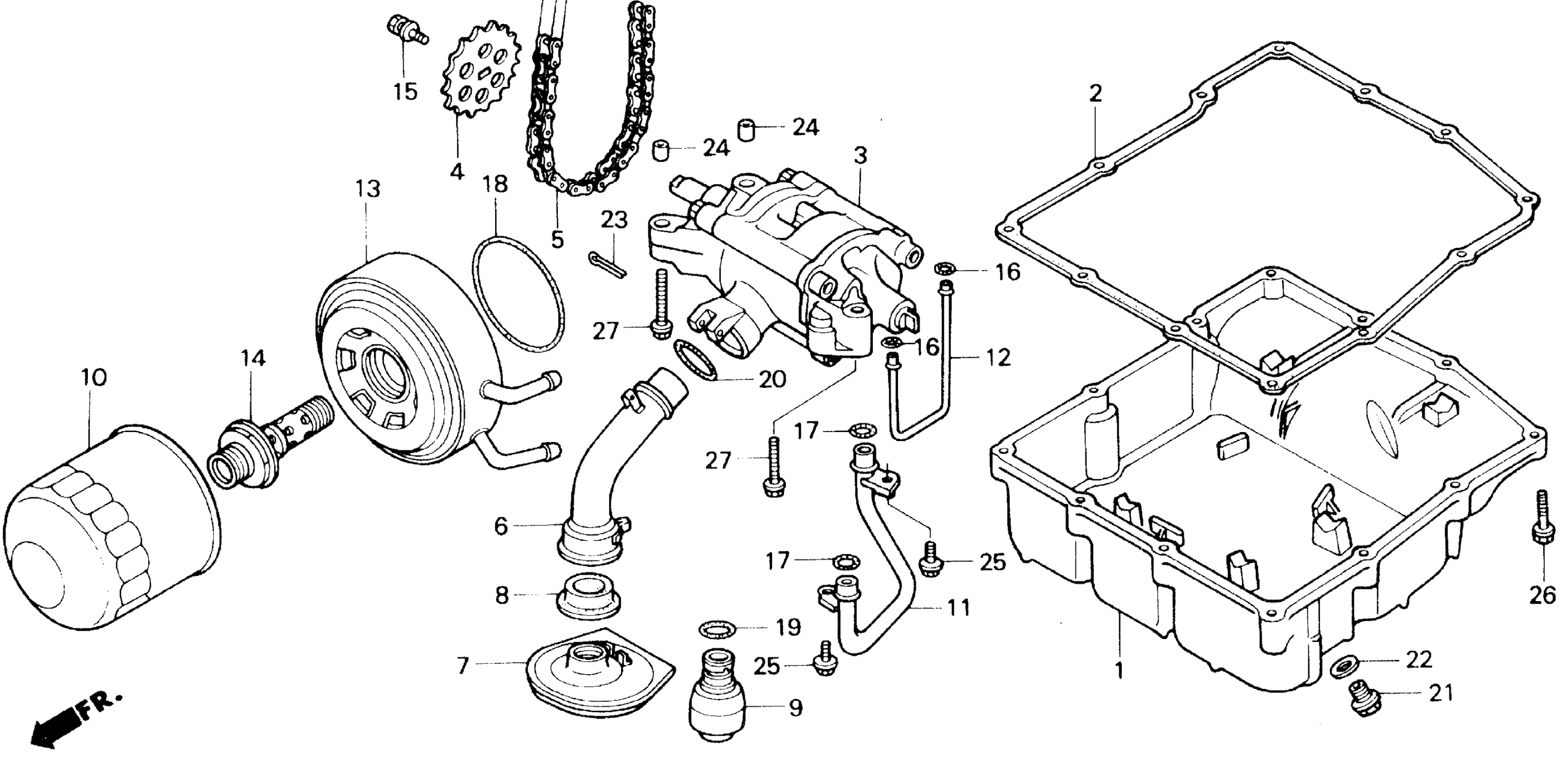

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MR7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-ML7-000.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-ML7-306.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-MR7-780.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN

11315-MY7-000

Unavailable

3

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MR7-000

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MB0-010

Unavailable

5

CHAIN, OIL PUMP (48L)

15140-ML7-003

$35.67

6

PIPE, OIL STRAINER

15151-ML7-000

Unavailable

7

STRAINER, OIL

15153-ML7-690

Unavailable

8

GASKET, OIL STRAINER

15154-ML7-000

Unavailable

9

VALVE ASSY., RELIEF

15220-MJ6-000

Unavailable

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-003.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

11

PIPE A, OIL

15511-MR7-000

Unavailable

12

PIPE B, OIL

15512-ML7-000

Unavailable

13

COOLER, ENGINE OIL

15700-MR7-003

Unavailable

14

BOLT, OIL COOLER

90019-MR7-003

Unavailable

15

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

16

O-RING (6X2) (NOK)

91307-ML7-004

$2.90

17

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

18

O-RING (57.8X2.4)

91312-PC6-003

$5.03

19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

19

O-RING (14.8X2.2)

91313-MG7-004

$3.67

20

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

20

O-RING (21.2X2.4) (ARAI) This part replaces 91331-PC9-004.

91331-PC9-003

$3.13

21

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, SPLIT (2.0X35)

94201-20350

$1.49

24

PIN, DOWEL (8X14)

94301-08140

$2.25

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

26

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

27

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
