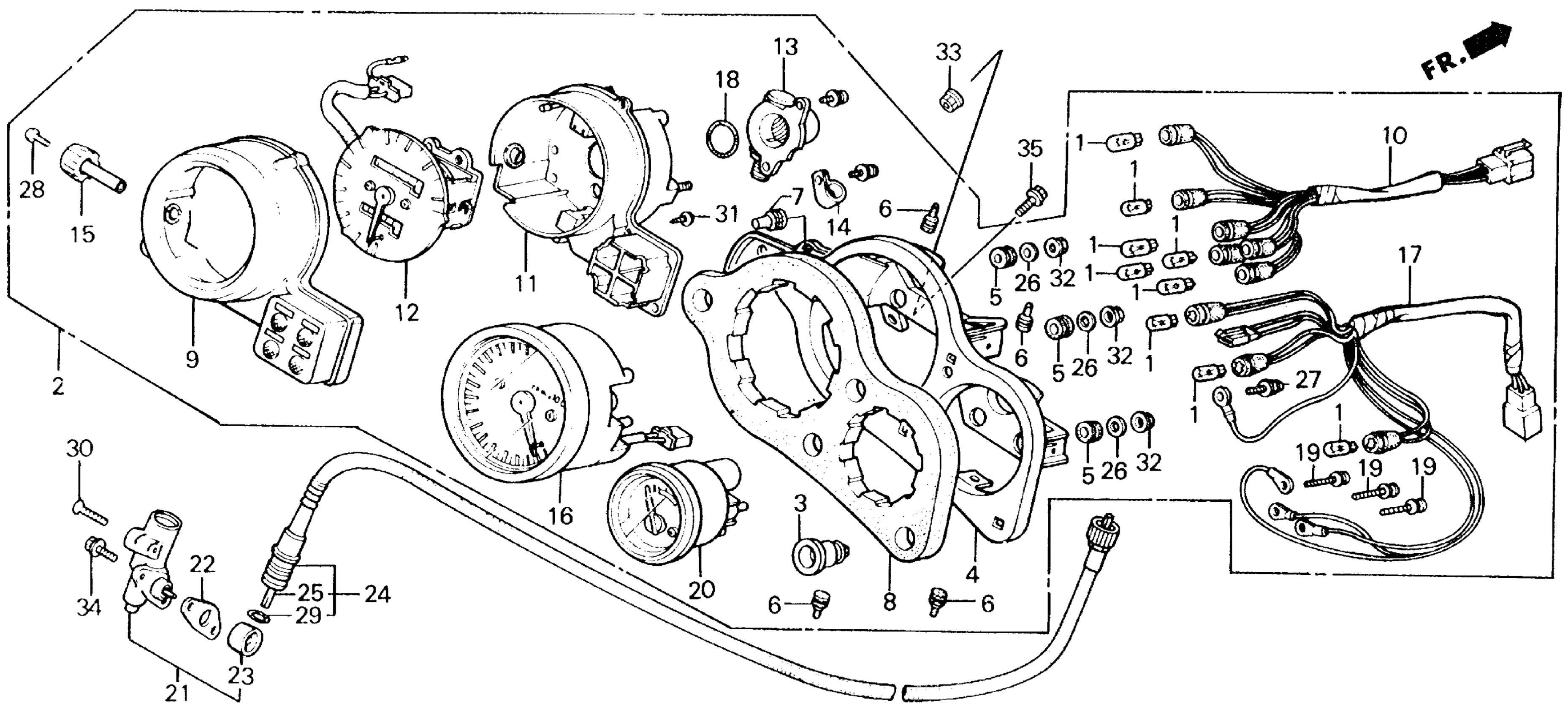

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 METER Diagram
#
Description
Price
2
METER ASSY., COMBINATION (NOT AVAILABLE) This part replaces 37100-MR7-770.
37100-MR7-870
Unavailable
3
CLIP, METER PANEL
37112-MR7-003
Unavailable
4
BRACKET ASSY., METER This part replaces 37120-MR7-601.
37120-MR7-008
Unavailable
5
RUBBER, SPEEDOMETER SETTING
37125-MR7-008
Unavailable
6
CUSHION, RUBBER
37126-MR7-008
Unavailable
7
GROMMET
37127-MR7-008
Unavailable
8
CUSHION This part replaces 37130-MR7-008.
37111-KV3-701
Unavailable
9
CASE, SPEEDOMETER This part replaces 37202-MR7-601.
37202-MR7-761
Unavailable
10
SOCKET, SPEEDOMETER
37205-MR7-601
Unavailable
11
CASE ASSY., SPEEDOMETER (LOWER) (NOT AVAILABLE)
37208-MR7-601
Unavailable
12
SPEEDOMETER
37210-MR7-770
Unavailable
13
BOSS, ELBOW
37211-MR7-008
Unavailable
15
KNOB, TRIP METER
37220-445-008
Unavailable
16
TACHOMETER ASSY. This part replaces 37250-MR7-018.
37250-MR7-602
Unavailable
16
TACHOMETER ASSY.
37250-MR7-602
Unavailable
17
SOCKET, TACHOMETER (NOT AVAILABLE)
37255-MR7-008
Unavailable
20
METER ASSY., TEMPERATURE
37400-MR7-008
Unavailable
21
BOX ASSY., SPEEDOMETER GEAR
44800-MR7-003
Unavailable
22
GASKET, SPEEDOMETER GEAR BOX This part replaces 44802-MR7-000.
44802-MR7-505
Unavailable
22
GASKET, SPEEDOMETER GEAR BOX
44802-MR7-505
Unavailable
24
CABLE ASSY., SPEEDOMETER
44830-MR7-000
Unavailable
25
CABLE (INNER) (NOT AVAILABLE)
44831-KM3-000
Unavailable
26
WASHER, PLAIN (5MM)
84103-443-740
Unavailable
32
NUT, HEX. (5MM)
94001-05300-0S
Unavailable
