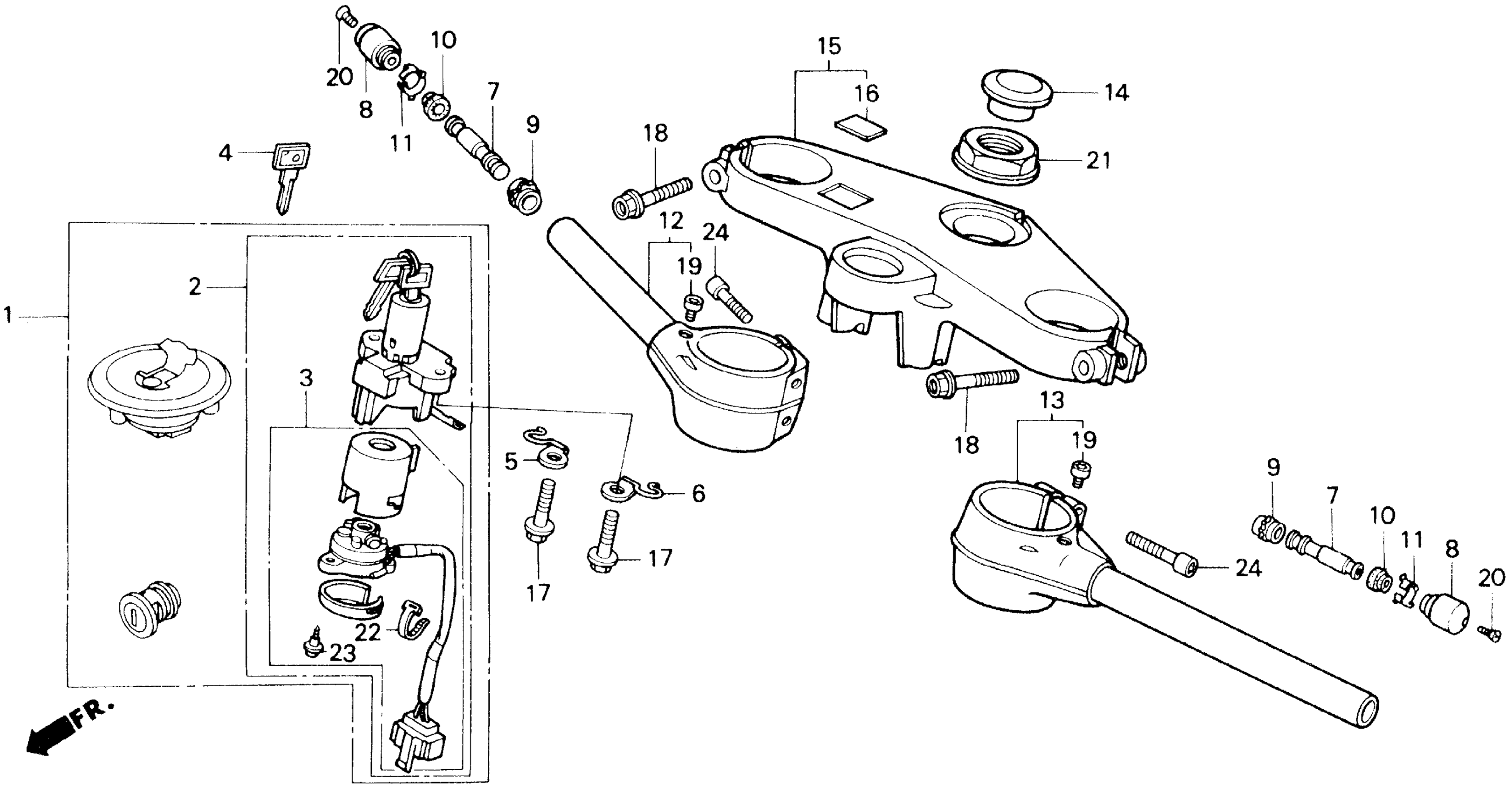

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 HANDLEBAR Diagram
#
Description
Price
1
LOCK SET This part replaces 35010-MR7-601.
35010-MR7-605
Unavailable
2
SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MR7-600.
35100-MR7-601
Unavailable
2
SWITCH ASSY., COMBINATION & LOCK
35100-MR7-601
Unavailable
3
BASE, CONTACT This part replaces 35101-MR7-600.
35101-MR7-601
Unavailable
3
BASE, CONTACT
35101-MR7-601
Unavailable
4
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-KB7-810.
35121-KW3-771
$10.10
4
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-KB7-810.
35122-KW3-771
$10.10
5
CLIP, R. HANDLE SWITCH CORD
50407-MR7-000
Unavailable
6
CLIP, L. HANDLE SWITCH CORD
50408-MR7-000
Unavailable
7
WEIGHT, HANDLE (B)
53104-MJ0-000
Unavailable
8
WEIGHT, HANDLEBAR
53105-MJ0-000
Unavailable
11
RING, HANDLE WEIGHT SNAP
53108-MK4-000
Unavailable
12
HANDLEBAR ASSY., R. (NOT AVAILABLE)
53110-MR7-000
Unavailable
13
HANDLEBAR ASSY., L.
53160-MR7-000
Unavailable
14
CAP, STEERING NUT This part replaces 53232-MR7-000.
53232-MR7-010
Unavailable
15
BRIDGE, FORK TOP
53300-MR7-000
Unavailable
19
BOLT, TORX (8X10)
90111-MJ6-700
Unavailable
