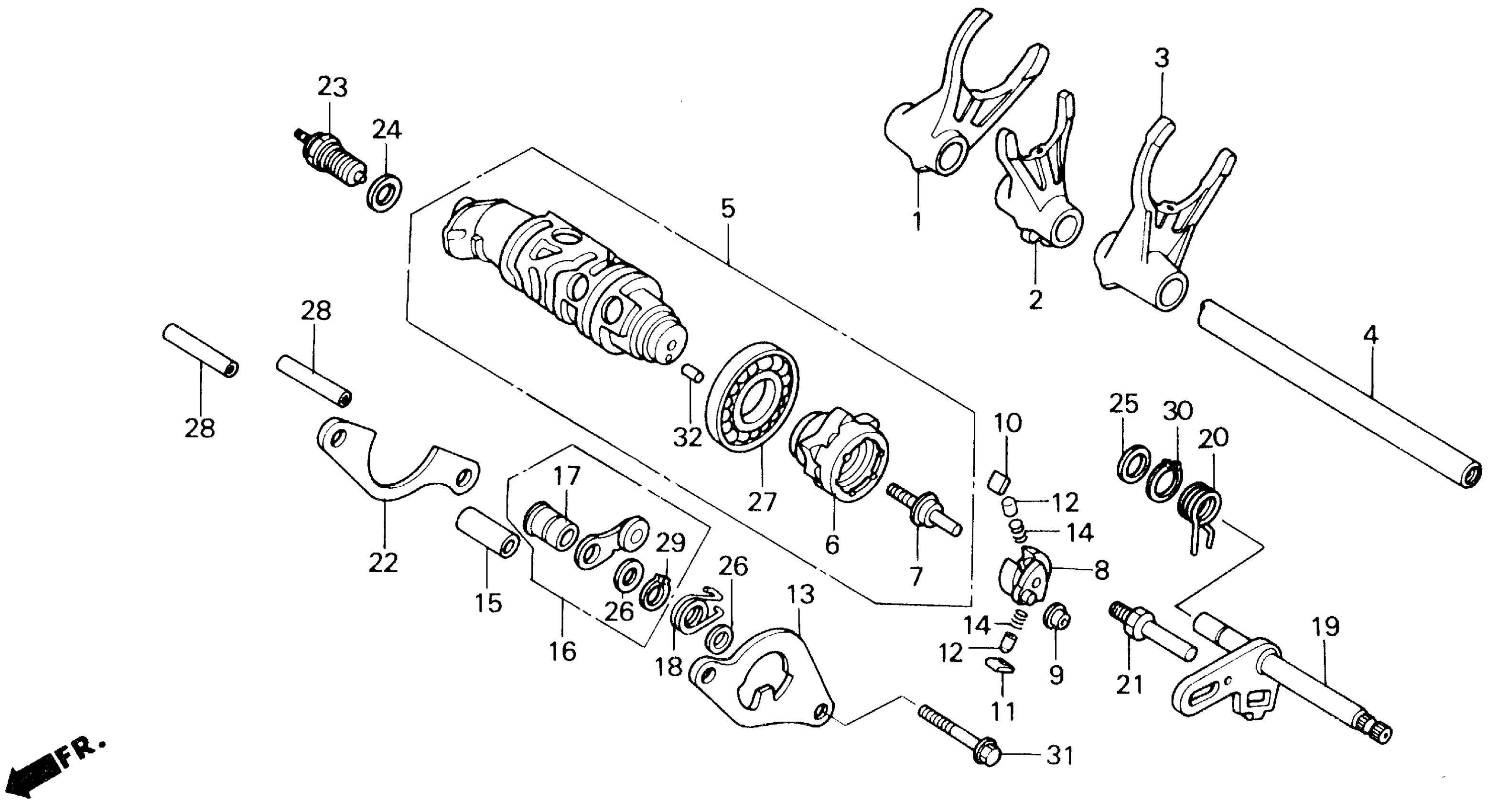

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-ML7-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-ML7-000

Unavailable

3

FORK, L. GEARSHIFT

24213-ML7-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-ML7-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-MR7-000

Unavailable

6

CENTER, GEARSHIFT DRUM This part replaces 24312-KT7-751.

24312-KT7-752

$38.00

6

CENTER, GEARSHIFT DRUM

24312-KT7-752

$38.00

7

PIN, SHIFTER

24315-HA0-000

$12.60

8

SHIFTER, DRUM This part replaces 24321-KT8-010.

24321-KT8-030

$55.03

8

SHIFTER, DRUM This part replaces 24321-KT8-020.

24321-KT8-030

$55.03

8

SHIFTER, DRUM

24321-KT8-030

$55.03

9

COLLAR, SHIFTER

24322-MM4-000

$5.12

10

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

10

PAWL A, RATCHET

24324-KA3-711

$13.21

11

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

11

PAWL B, RATCHET

24325-KA3-711

$13.21

12

PLUNGER, PAWL

24326-KBH-901

$5.81

12

PLUNGER, PAWL This part replaces 24326-KT7-000.

24326-KBH-901

$5.81

13

PLATE, GUIDE

24328-MR7-010

$18.61

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

15

COLLAR, GUIDE PLATE DISTANCE

24329-KT7-000

$5.49

16

STOPPER, DRUM

24430-MR7-000

$26.75

17

COLLAR, DRUM STOPPER

24434-MR7-000

$9.03

18

SPRING, DRUM STOPPER

24435-MR7-000

Unavailable

19

SPINDLE, GEARSHIFT

24610-MR7-000

$108.36

20

SPRING, GEARSHIFT RETURN

24651-MR7-000

Unavailable

21

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

22

PLATE, SHIFT DRUM BEARING SETTING

24655-MR7-000

$13.70

23

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

23

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-010.

35600-KE8-003

$18.90

24

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

25

WASHER (14MM)

90451-155-000

$3.78

26

WASHER (12MM)

90485-MR7-000

$5.48

27

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

29

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

30

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

31

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

31

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

32

ROLLER (4X8)

96220-40080

$1.49
