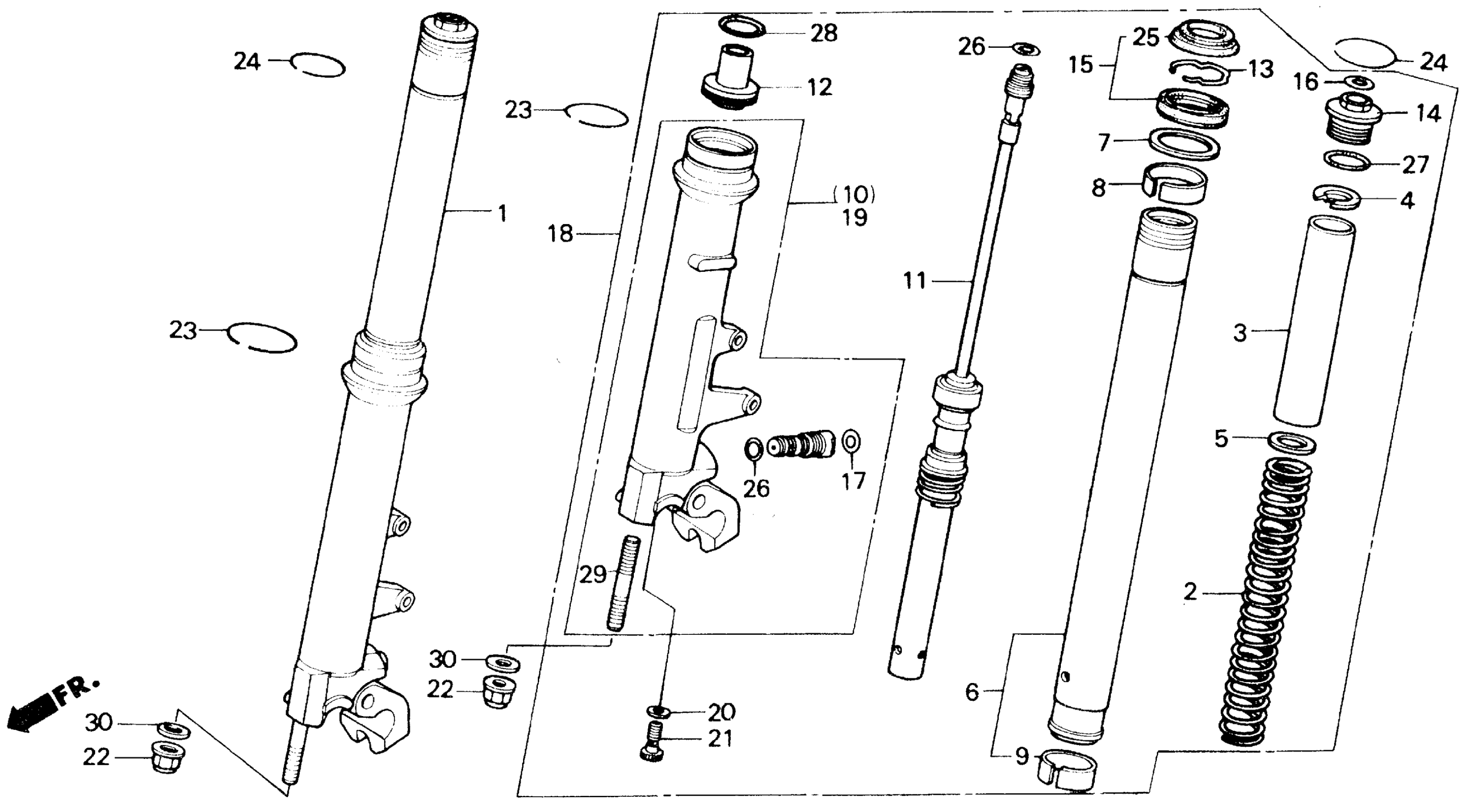

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MR7-601

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-MR7-003

Unavailable

3

COLLAR, SPRING

51402-MR7-003

Unavailable

4

SEAT, SPRING

51404-MR7-003

$11.28

5

SEAT, SPRING

51405-KA4-711

$6.23

6

PIPE, FR. FORK

51410-MR7-003

Unavailable

7

RING, BACK-UP

51412-KA4-711

$9.65

8

BUSH, GUIDE

51414-MAZ-751

$7.14

8

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

9

BUSH, SLIDER This part replaces 51415-KS6-831.

51415-MFN-D01

$31.52

10

CASE, R. (LOWER) This part replaces 51421-MR7-003.

51421-MR7-611

Unavailable

11

DAMPER, FR. FORK

51430-MR7-003

Unavailable

12

PIECE, OIL LOCK

51432-MR7-003

Unavailable

13

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

14

BOLT, FR. FORK (NOT AVAILABLE)

51454-MR7-003

Unavailable

15

SEAL SET, FR. FORK

51490-MR7-305

Unavailable

16

LABEL

51496-MR7-003

$3.26

17

LABEL C

51497-MR7-003

Unavailable

18

FORK ASSY., L. FR. (SHOWA)

51500-MR7-601

Unavailable

19

CASE, L. (LOWER) This part replaces 51521-MR7-003.

51521-MR7-611

Unavailable

20

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

21

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

22

NUT, FLANGE (12MM)

90306-181-761

$6.08

23

RING, SNAP

90605-MR7-000

Unavailable

24

RING, STOPPER

90657-MR7-000

$3.12

25

DUST SEAL

91254-MR7-003

Unavailable

26

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

26

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

27

O-RING (35.2X2.4)

91356-KA4-711

$3.76

28

O-RING (39.5X2.0)

91358-MA6-003

$4.10

29

BOLT 2, STUD (12X45)

92900-12045-0E

Unavailable

30

WASHER, PLAIN (12MM)

94101-12000

$1.49
