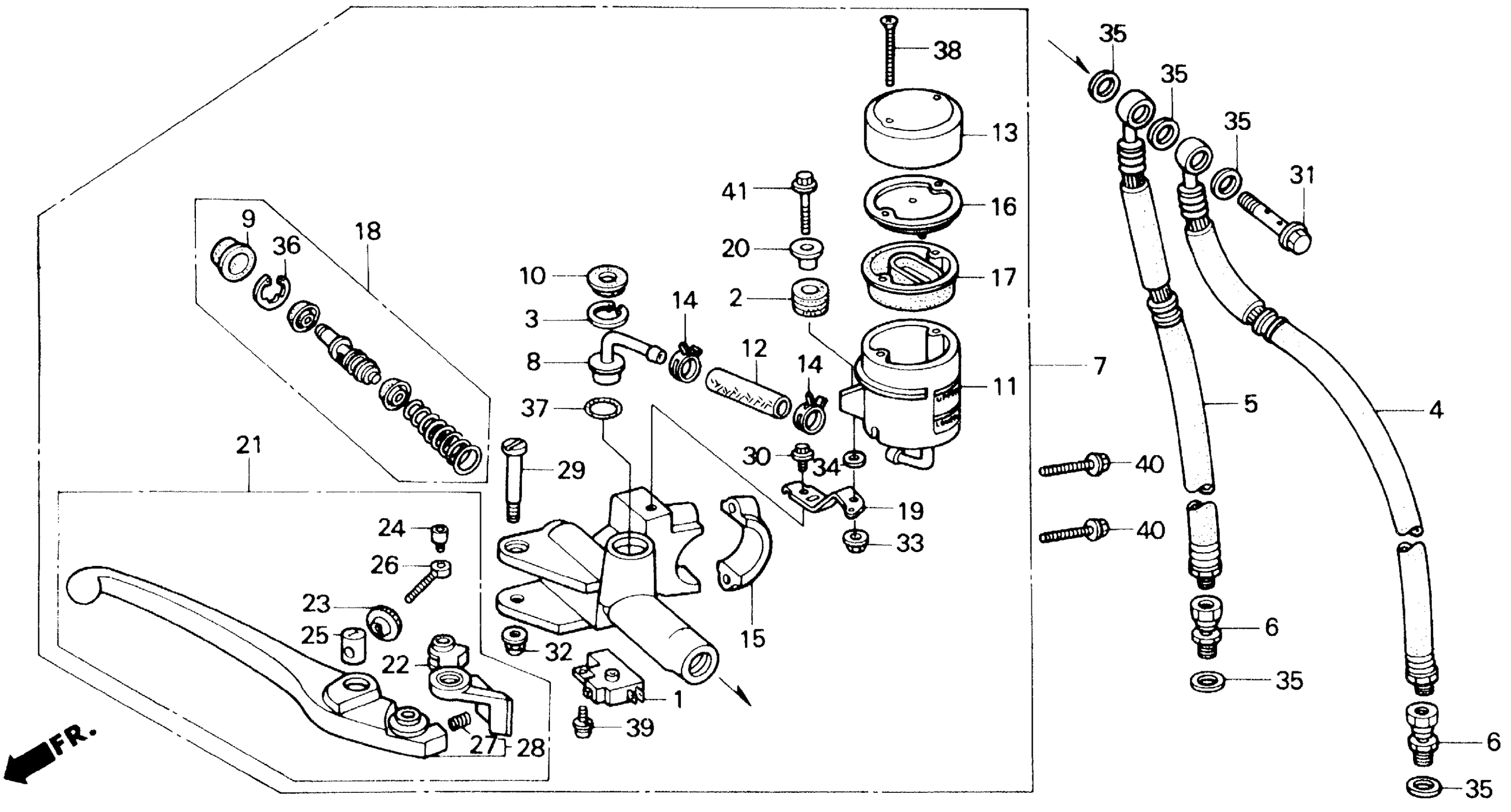

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.28

3

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

4

HOSE, L. FR. BRAKE

45124-MR7-771

Unavailable

5

HOSE, R. FR. BRAKE

45125-MR7-771

Unavailable

6

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45500-MR7-006.

45510-MR7-305

Unavailable

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MR7-305

Unavailable

8

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.65

9

BOOT

45504-410-003

$11.17

10

COVER, DUST

45505-KV3-006

$3.97

11

CUP, OIL

45511-KV3-016

$33.82

12

HOSE, FR. MASTER CYLINDER OIL

45512-MR7-006

Unavailable

13

CAP, OIL CUP

45513-KV3-006

$32.22

14

CLAMP, MASTER CYLINDER OIL HOSE

45514-KV3-006

$14.51

15

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

16

PLATE, DIAPHRAGM

45518-KV3-006

$11.46

17

DIAPHRAGM

45520-KV3-006

$12.83

18

MASTER CYLINDER SET (NISSIN)

45530-MR7-305

Unavailable

19

STAY, FR. MASTER CYLINDER OIL

45550-MR7-006

Unavailable

20

COLLAR (6.3X13)

50324-425-010

$4.51

21

LEVER ASSY., R. HANDLE This part replaces 53170-KV0-006.

53170-MW0-006

$38.93

21

LEVER ASSY., R. HANDLE

53170-MW0-006

$38.93

22

KNOCKER, MASTER CYLINDER

53171-MJ4-701

Unavailable

23

ADJUSTER, R. HANDLE LEVER

53172-KV0-006

Unavailable

24

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

25

JOINT, LEVER

53179-KV0-006

Unavailable

26

BOLT, ADJUSTING

53180-KV0-006

Unavailable

27

SPRING, HANDLE LEVER

53181-KV0-006

$3.69

28

LEVER SET, R. HANDLE

53185-KV0-006

Unavailable

29

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

30

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

31

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$6.72

31

BOLT, OIL (10X34)

90145-MR8-014

$6.72

32

NUT, CAP (6MM)

90201-415-000

Unavailable

33

NUT, U (6MM)

90301-473-003

$3.89

34

WASHER (6X16)

90473-147-000

$1.28

35

WASHER, OIL BOLT

90545-300-000

$5.79

36

CIRCLIP

90651-MA5-671

$2.38

37

O-RING (14.8X2.4)

91212-422-006

$2.37

38

SCREW, FLAT (4X50)

93600-04050-1G

$0.94

39

SCREW-WASHER (4X12)

93893-04012-08

$1.32

39

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.32

40

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

41

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
