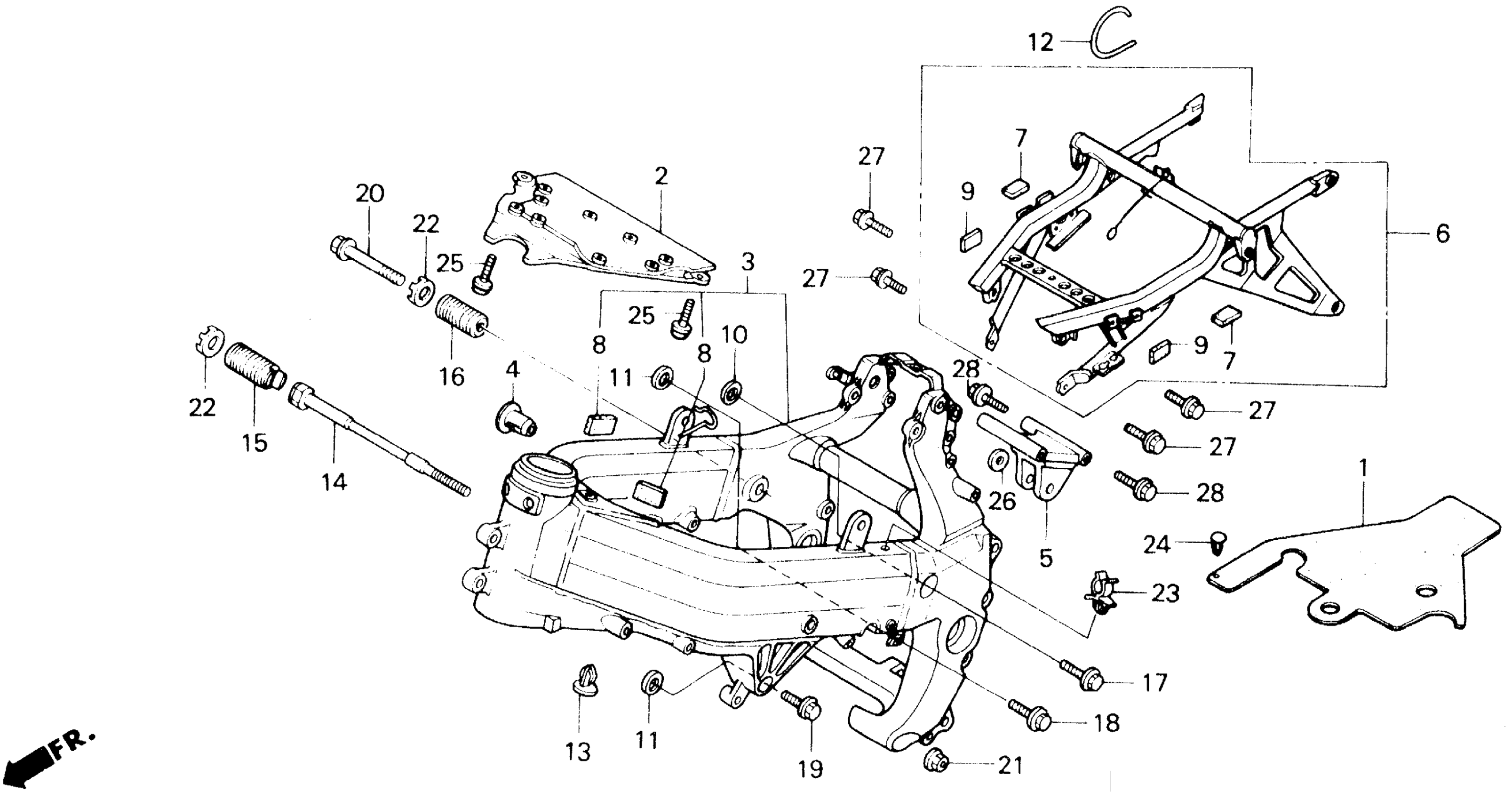

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 FRAME Diagram
#
Description
Price
1
RUBBER, SEAT COWL HEAT
16960-MR7-770
Unavailable
2
GUARD, CARBURETOR HEAT
19125-MR7-600
Unavailable
3
FRAME
50100-MR7-770
Unavailable
4
CAP (10MM)
50103-MR7-630
Unavailable
5
BRACKET, RR. CUSHION
50231-MR7-000
Unavailable
6
RAIL, SEAT
50240-MR7-770
Unavailable
7
RUBBER A, SEAT COWL CUSHION
50280-MR7-300
Unavailable
8
RUBBER, FUEL TANK CUSHION
50281-MR7-770
Unavailable
10
COLLAR, ENGINE HANGER
50370-MR7-000
Unavailable
11
COLLAR, MAIN PIPE ENGINE HANGER
50372-ML7-700
Unavailable
12
TUBE, HELMET WIRE (5X8X170)
77241-MR7-000
Unavailable
13
CLIP, ANCHOR
90045-MR7-000
Unavailable
14
BOLT A, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)
90104-MR7-000
Unavailable
15
BOLT B, RR. ENGINE HANGER (LOWER)
90119-MR7-000
Unavailable
16
BOLT B, RR. ENGINE HANGER (UPPER)
90125-MR7-000
Unavailable
17
BOLT, FLANGE (10X35)
90130-MR7-000
Unavailable
18
BOLT, FLANGE (10X40)
90131-MR7-000
Unavailable
19
BOLT, FLANGE (10X45)
90132-MR7-000
Unavailable
20
BOLT, FLANGE (10X55)
90133-MR7-000
Unavailable
