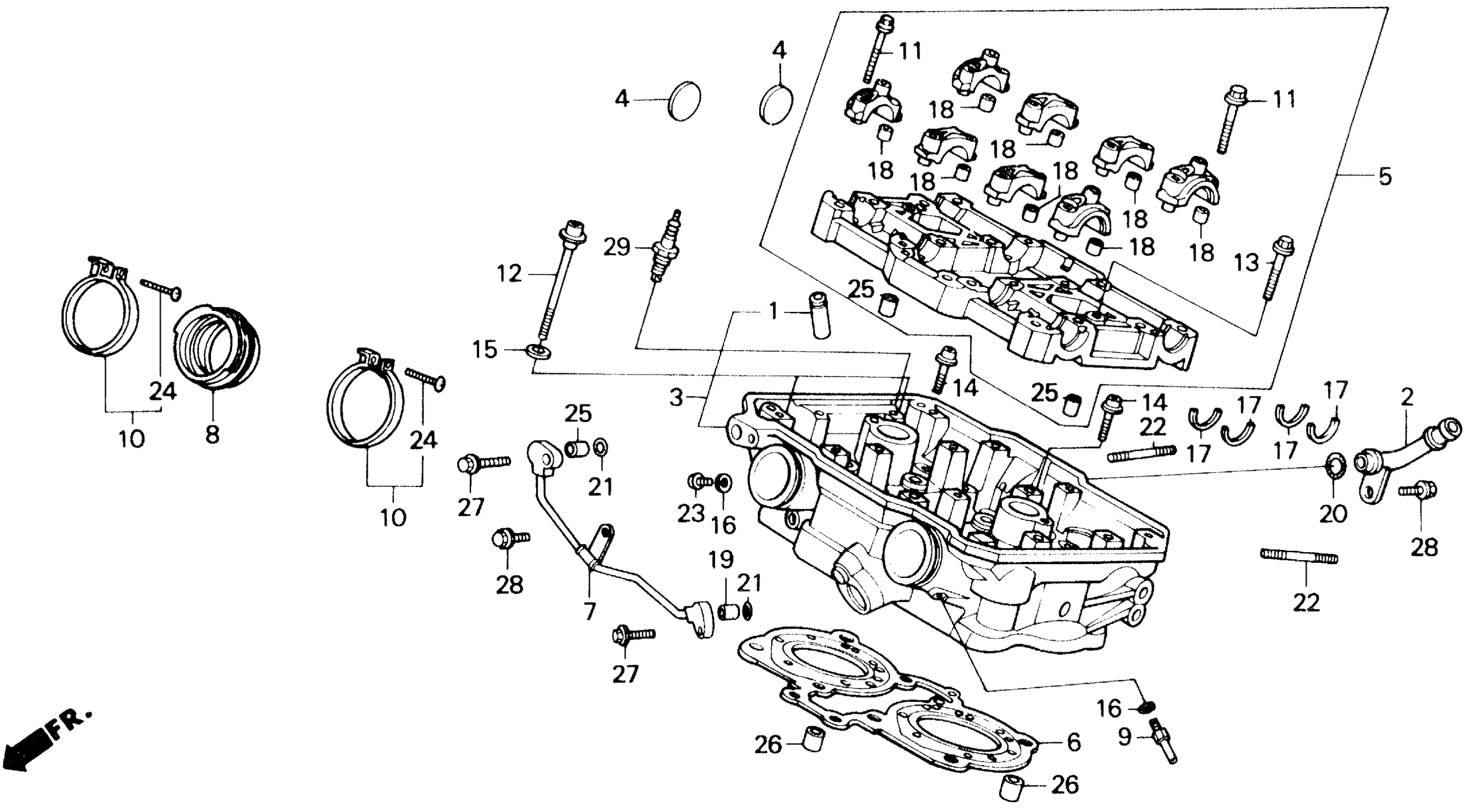

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

GUIDE, VALVE (OVER SIZE) This part replaces 12204-MR7-305.

12204-MT4-305

$21.81

1

GUIDE, VALVE (OVER SIZE)

12204-MT4-305

$21.81

2

JOINT, BREATHER

12208-MR7-000

Unavailable

3

CYLINDER HEAD, RR.

12220-MR7-010

Unavailable

4

PLATE, SIDE SEAL

12225-MR7-000

Unavailable

5

HOLDER ASSY., RR. CAM

12240-MR7-000

Unavailable

6

GASKET, CYLINDER HEAD

12251-MR7-003

Unavailable

7

PIPE, RR. FEED

15320-MR7-000

Unavailable

8

INSULATOR, CARBURETOR

16211-MR7-000

Unavailable

9

JOINT, BOOST

16214-MB0-000

$4.45

10

BAND, INSULATOR

16223-KS5-000

$12.75

10

BAND, INSULATOR This part replaces 16223-MJ0-000.

16223-KS5-000

$12.75

11

BOLT, FLANGE (7X59)

90001-MR7-000

Unavailable

12

BOLT, SOCKET (9X87)

90007-MR7-004

Unavailable

13

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.12

14

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.04

15

WASHER (9MM)

90445-MM4-000

$3.91

16

WASHER, SEALING (5MM)

90452-323-000

$1.52

17

SET-RING (30MM)

90603-MR7-000

Unavailable

18

PIN, DOWEL (9X14)

90701-MR7-000

$4.00

19

ORIFICE, FEEDER (1.5)

90806-ML7-000

Unavailable

20

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.12

21

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80

21

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.80

21

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.80

22

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$0.94

22

BOLT, STUD (6X25)

92900-06025-0E

$0.94

23

SCREW, PAN (5X8)

93500-05008-0G

$0.83

24

SCREW, PAN (5X25)

93500-05025-0G

$0.68

25

PIN, DOWEL (8X14)

94301-08140

$2.04

26

PIN, DOWEL (12X20)

94301-12200

$2.25

27

BOLT, FLANGE (6X22)

95701-06022-07

$0.86

28

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

29

SPARK PLUG (C8EH9) (NGK) | (Optional).

98059-58910

Unavailable

29

SPARK PLUG (U24FE9) (DENSO) | (Optional).

98059-58920

$2.67

29

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

29

SPARK PLUG (CR9EH9) (NGK)

98059-59916

$6.79

29

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79
