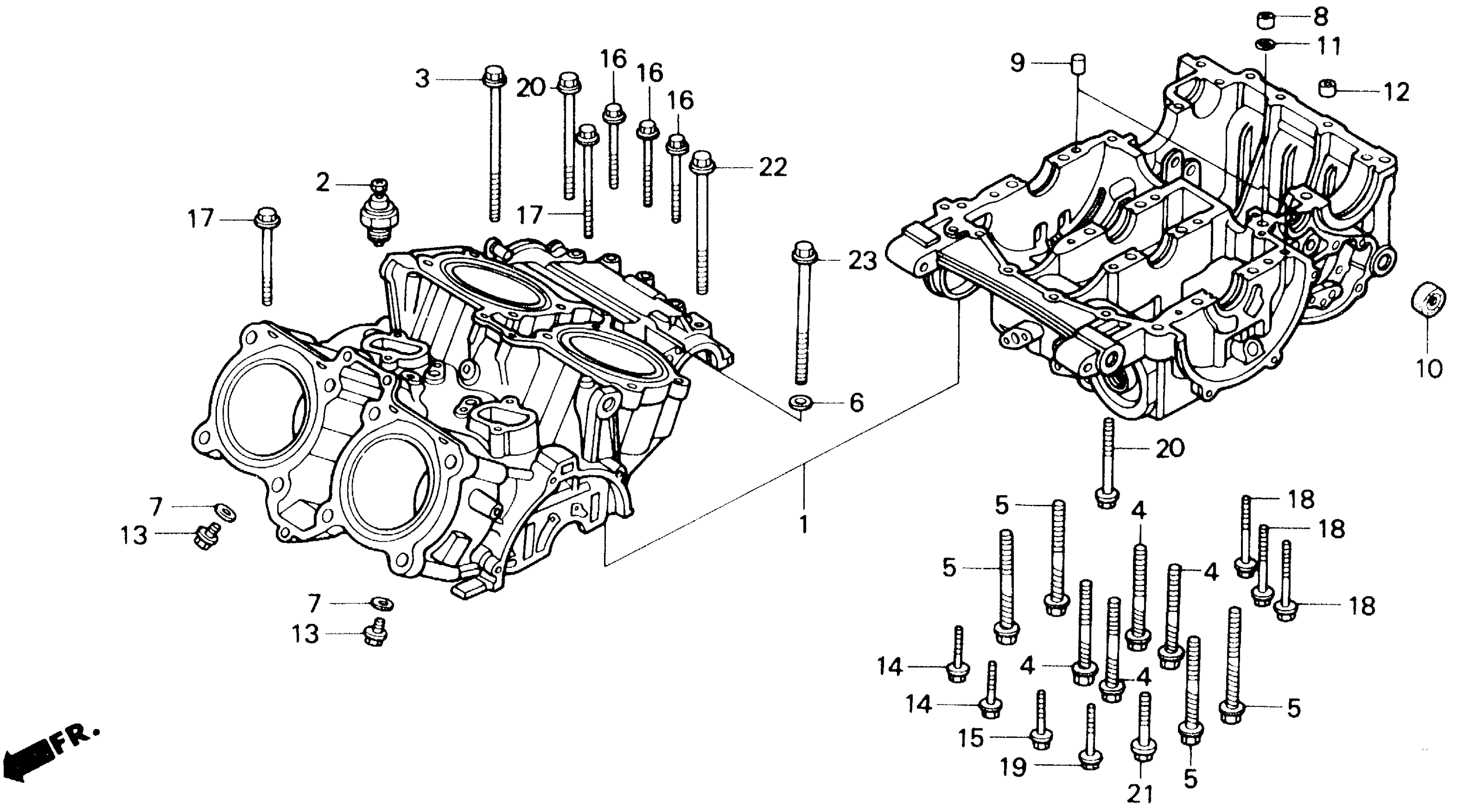

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-MR7-000

Unavailable

2

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

2

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

3

BOLT, FLANGE (6X96)

90003-PC9-000

$7.74

4

BOLT, UBS (9X88)

90014-ML7-000

$10.79

5

BOLT, UBS (9X108)

90016-ML7-000

$12.82

6

WASHER, SEALING (10MM)

90403-MG7-000

$3.26

7

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

8

ORIFICE (LOWER) (1.0)

90701-ML7-000

Unavailable

9

PIN, DOWEL (10X26)

90711-MF5-000

Unavailable

10

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

11

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

11

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

11

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

12

PIN, DOWEL (8X14)

94301-08140

$2.25

13

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

14

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

15

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

16

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

17

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

18

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

19

BOLT, FLANGE (6X55)

95701-06055-07

$1.80

20

BOLT, FLANGE (6X65)

95701-06065-07

$4.30

21

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

22

BOLT, FLANGE (10X85)

95701-10085-07

Unavailable

23

BOLT, FLANGE (10X90)

95701-10090-07

$3.06
