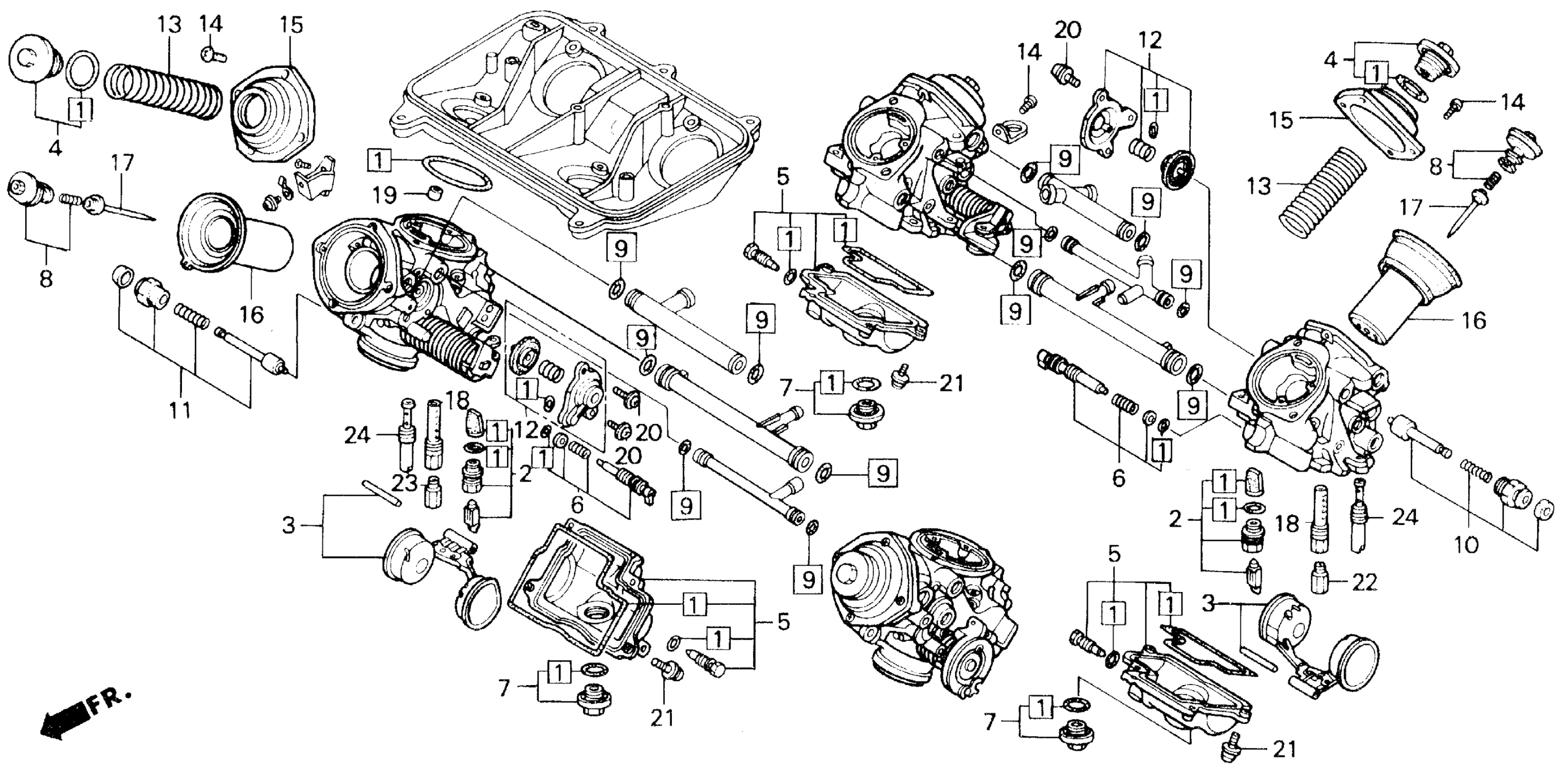

Honda VFR750RA (90) RC30, JPN, VIN# JH2RC300-LM200001 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET A This part replaces 16010-MR7-014.

16010-MR7-505

Unavailable

2

VALVE SET, FLOAT

16011-MR7-004

Unavailable

3

FLOAT SET

16013-MAH-000

$49.54

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

4

CAP SET, TOP

16014-MR7-004

Unavailable

5

CHAMBER SET A, FLOAT This part replaces 16015-MR7-691.

16015-MR7-692

Unavailable

5

CHAMBER SET A, FLOAT

16015-MR7-692

Unavailable

6

SCREW SET This part replaces 16016-MR7-770.

16016-MT4-710

Unavailable

6

SCREW SET

16016-MT4-710

Unavailable

7

CAP SET, TOP

16024-MR7-004

Unavailable

8

PLATE SET, VALVE (NOT AVAILABLE) This part replaces 16037-MK7-771.

16037-MK7-772

Unavailable

8

PLATE SET, VALVE

16037-MK7-772

Unavailable

9

GASKET B SET

16040-MR7-004

Unavailable

10

VALVE SET, STARTER

16046-MG9-681

$69.54

11

VALVE SET B, STARTER

16047-MAJ-870

Unavailable

11

VALVE SET B, STARTER This part replaces 16047-ML7-004.

16047-MAJ-870

Unavailable

12

VALVE SET, AIR CUT

16048-MR7-004

Unavailable

13

SPRING, COMPRESSION COIL

16050-MR7-004

Unavailable

14

SCREW, PAN

16080-MR7-004

Unavailable

15

TOP

16107-MR7-004

Unavailable

16

PISTON, VACUUM

16111-MR7-004

Unavailable

17

NEEDLE, JET

16151-MR7-770

Unavailable

18

HOLDER, NEEDLE JET

16165-MN2-004

Unavailable

19

PIN, KNOCK

16178-MB0-671

$4.98

20

SCREW-WASHER (4X8)

93892-04008-00

$1.49

20

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

21

SCREW-WASHER (4X16)

93892-04016-00

$1.49

21

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

22

JET, MAIN (#110) This part replaces 99101-357-1100.

99113-GHB-1100

$9.32

22

JET, MAIN (#110)

99113-GHB-1100

$9.32

23

JET, MAIN (#112) This part replaces 99101-357-1120.

99113-GHB-1120

$9.89

23

JET, MAIN (#112)

99113-GHB-1120

$9.89

24

JET, SLOW (#38)

99103-MT2-0380

$22.12
