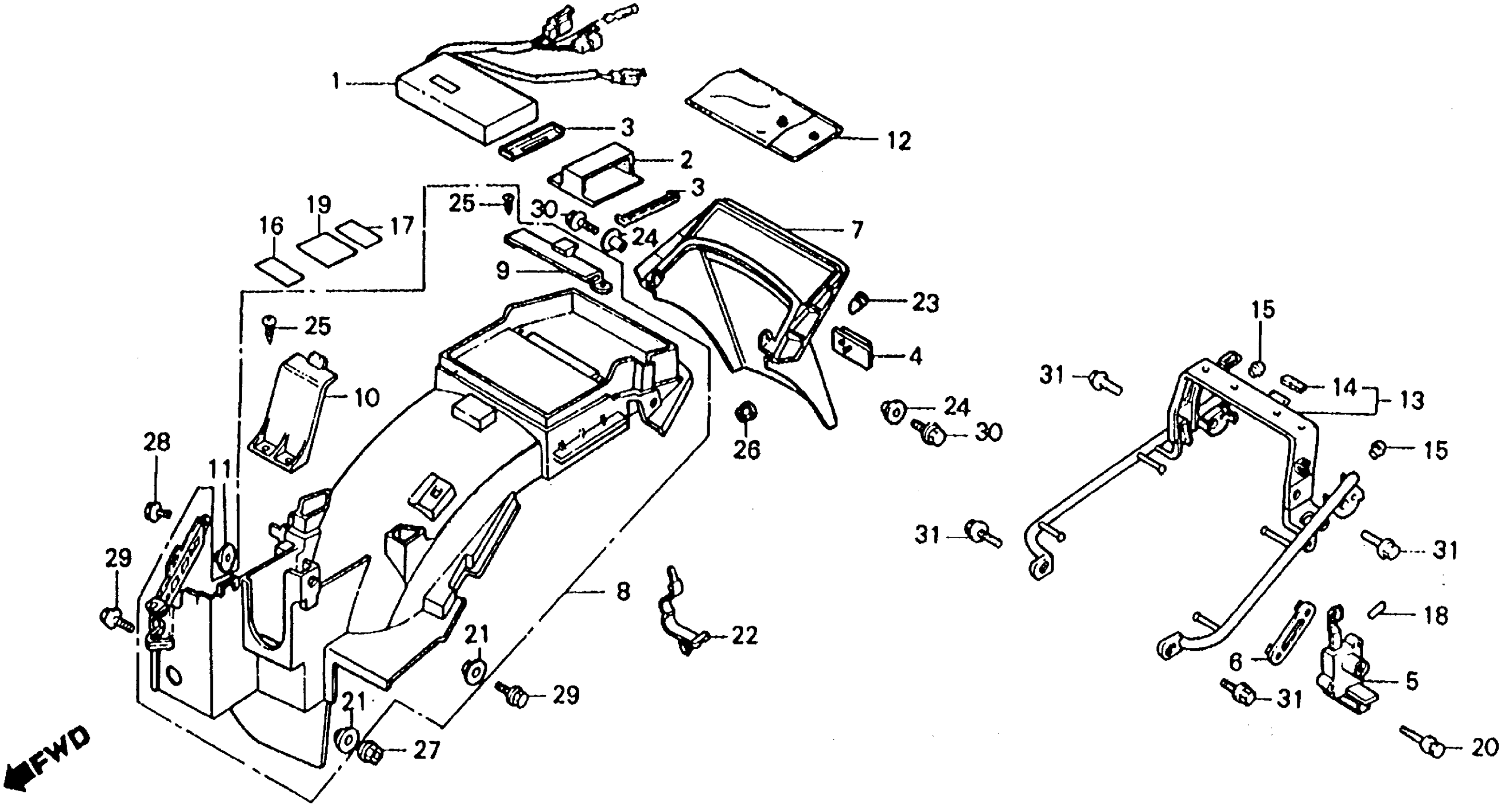

Honda VFR750FAC (86) 750 INTERCEPTOR, JPN, VIN# JH2RC241-GM000002 REAR FENDER + SPARK UNIT Diagram

MODULE, IGNITION CONTROL (CDI) (DENSO)

30400-ML7-601

Unavailable

RUBBER A, SPARK UNIT

30403-ML7-000

Unavailable

RUBBER B, SPARK UNIT

30404-ML7-000

Unavailable

REFLECTOR, REFLEX

33741-MC7-612

$14.43

LOCK ASSY., SEAT

77110-ML7-000

Unavailable

PLATE, SEAT LOCK SETTING

77112-ML7-000

$8.38

FENDER A, RR. This part replaces 80100-ML7-000.

80100-ML7-980

Unavailable

FENDER B, RR. This part replaces 80105-ML7-000.

80105-ML7-405

Unavailable

STOPPER, SPARK UNIT

80108-ML7-000

Unavailable

LID, TOOL SETTING

80109-ML7-000

Unavailable

RUBBER, BATTERY BOX This part replaces 83618-GF0-750.

83618-GF0-751

$3.95

RUBBER, BATTERY BOX

83618-GF0-751

$3.95

BAG, OWNER'S MANUAL

83642-171-000

Unavailable

PIPE, SIDE GRIP This part replaces 84100-ML7-000.

84100-ML7-305

Unavailable

PIPE, SIDE GRIP

84100-ML7-305

Unavailable

RUBBER, SPARK UNIT

84102-ML7-000

$2.90

CAP, RR. BUMPER

84103-443-611

$4.23

DIAGRAM, VACUUM HOSE ROUTING

87135-ML7-710

Unavailable

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

BOLT, BREAK OFF (6MM)

90008-MB6-630

Unavailable

WASHER (6X20)

90512-300-000

$3.08

CLAMP, FUEL FEED PIPE

90665-SB2-931

Unavailable

PLUG, CONE TYPE

90899-422-610

$1.89

COLLAR, DISTANCE

91551-723-650

Unavailable

SCREW, TAPPING (5X16)

93903-25380

$1.49

NUT, FLANGE (5MM)

94050-05080

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X14)

96300-08014-00

$1.80
