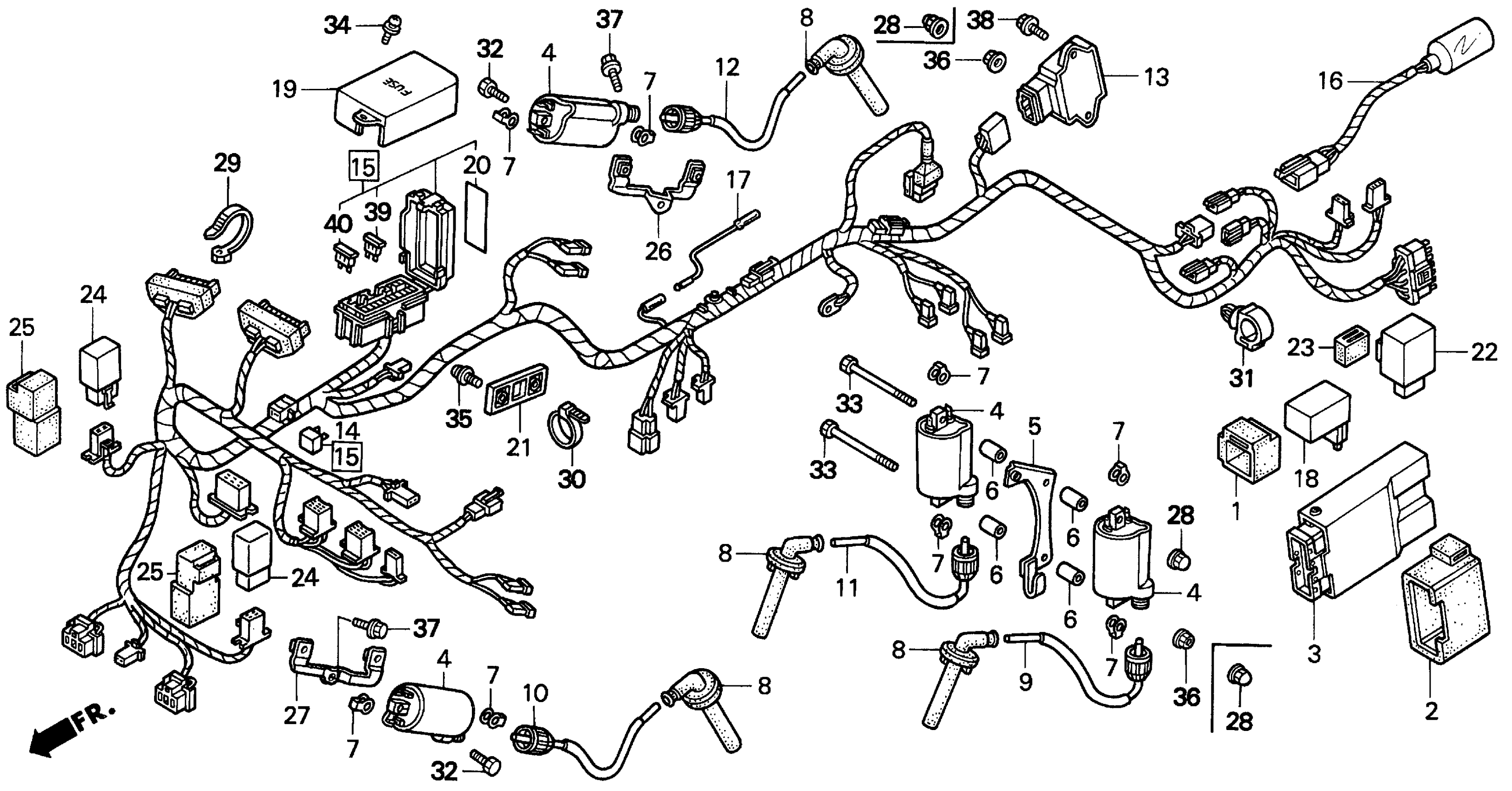

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 WIRE HARNESS 94-97 Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-GE8-000.

30401-GB4-770

$5.72

2

RUBBER, SPARK UNIT

30405-MT6-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-MZ7-003

Unavailable

4

COIL, IGNITION

30500-ML7-013

$88.14

5

STAY, IGNITION COIL

30513-MZ7-000

Unavailable

6

COLLAR, SPECIAL (6X14)

30514-MZ7-000

$4.30

7

SPACER, IGNITION COIL

30520-ML7-000

$3.77

8

CAP ASSY,NOISE SU This part replaces 30700-KAF-010.

30700-KAF-003

$37.16

9

WIRE ASSY., IGNITION (4) (SOURCE: VINTAGE PARTS INC.) This part replaces 30731-MZ7-000.

30734-MBG-505

Unavailable

10

WIRE, IGNITION (1) This part replaces 30732-MZ7-000.

30733-MT3-505

Unavailable

11

WIRE, IGNITION (2) This part replaces 30733-MZ7-000.

30732-MY5-505

Unavailable

12

WIRE, IGNITION (2) This part replaces 30734-MZ7-000.

30732-MY5-505

Unavailable

13

RECTIFIER ASSY., REGULATOR

31600-MY7-305

Unavailable

13

RECTIFIER ASSY., REGULATOR This part replaces 31600-MY7-600.

31600-MY7-305

Unavailable

14

RECTIFIER, SILICON

31700-196-000

$26.42

15

WIRE HARNESS

32100-MZ7-670

Unavailable

16

SUB-HARNESS

32101-MZ7-000

Unavailable

17

SUB-WIRE, THERMOSTAT

32118-MT4-000

Unavailable

18

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

19

COVER, FUSE BOX

38210-MZ7-000

Unavailable

20

LABEL, FUSE

38215-MT4-300

Unavailable

21

BRACKET, FUSE BOX

38216-MT4-000

Unavailable

22

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

23

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

24

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

25

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

26

STAY, R. FR. IGNITION COIL

64517-MZ7-000

Unavailable

27

STAY, L. FR. IGNITION COIL

64518-MZ7-000

Unavailable

28

NUT, CAP (6MM)

90361-SE0-000

Unavailable

29

BAND, WIRE HARNESS

90650-MA6-720

$4.15

30

BAND, WIRE

90651-KV6-003

$2.92

31

CLAMP, HARNESS

90652-HC4-003

$5.95

32

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

33

BOLT, HEX. (6X65)

92101-06065-4J

$6.52

34

SCREW-WASHER (5X10)

93891-05010-07

$1.49

35

SCREW-WASHER (6X14) (NOT AVAILABLE)

93893-06014-00

Unavailable

36

NUT, FLANGE (6MM)

94050-06000

$1.49

37

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

39

FUSE, BLADE (10A)

98200-31000

$1.49

40

FUSE, BLADE (20A)

98200-32000

$1.49
