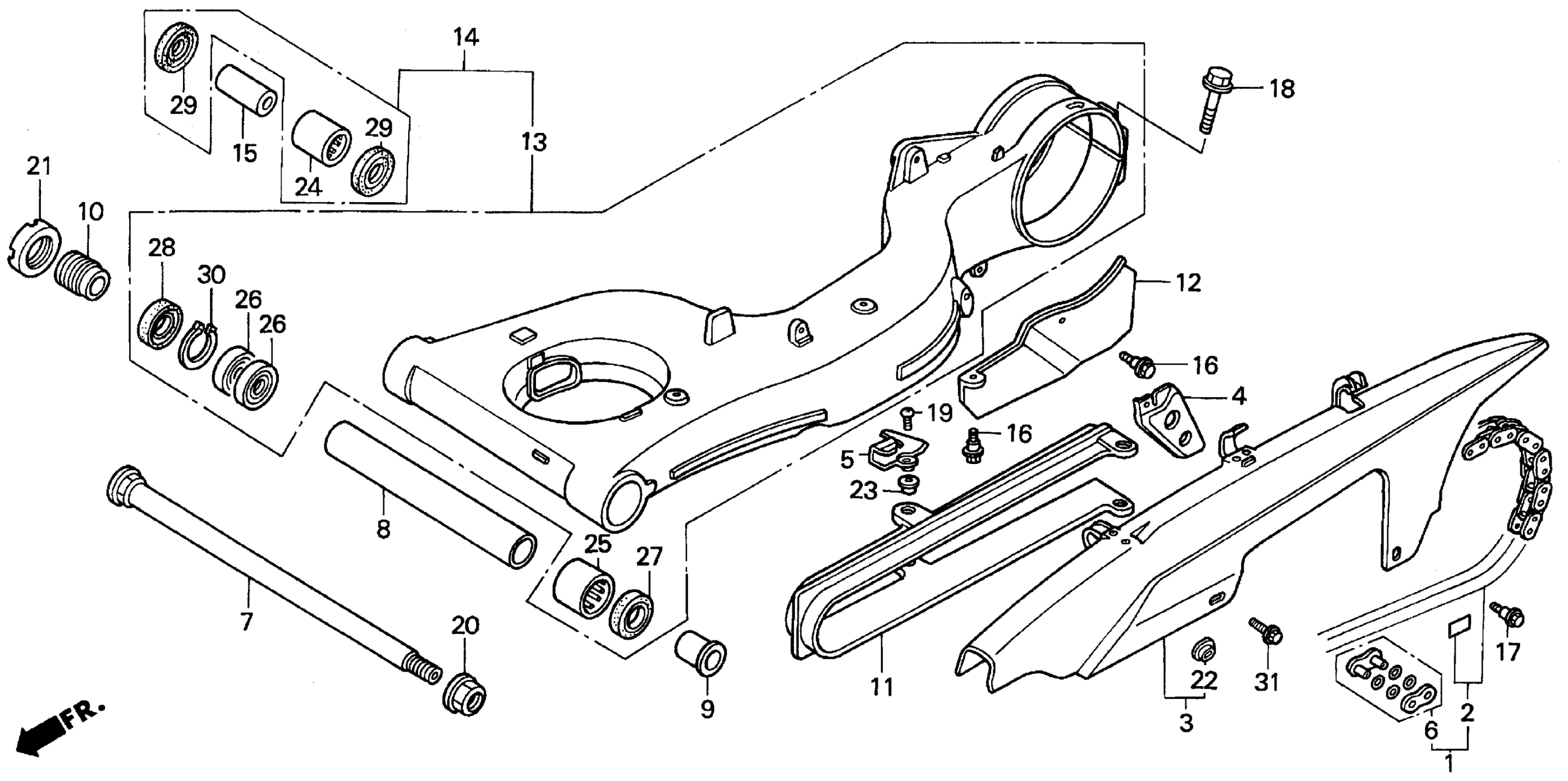

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK50M FOZ1) (102L-120L) (RK EXCEL)

06405-MZ5-P20

Unavailable

1

CHAIN SET, DRIVE (DID50V4-112L-120L) (DAIDO) This part replaces 06405-MZ7-405.

06405-MZ5-P00

Unavailable

1

CHAIN SET, DRIVE (RK50M FOZ1) (102L-120L) (RK EXCEL) This part replaces 06405-MZ7-406.

06405-MZ5-P20

Unavailable

3

CASE, DRIVE CHAIN

40510-MY7-000

Unavailable

5

PLATE, CHAIN CASE SETTING

40516-MY7-000

Unavailable

6

MASTER LINK

40535-MW0-305

Unavailable

6

MASTER LINK

40535-MW0-306

Unavailable

7

BOLT, SWINGARM PIVOT

52101-MZ7-000

Unavailable

8

COLLAR, CENTER PIVOT DISTANCE

52141-MZ7-000

Unavailable

9

COLLAR B, PIVOT

52106-MR7-000

$33.20

10

BOLT, PIVOT ADJUSTING

52109-MZ7-000

Unavailable

11

SLIDER, CHAIN

52170-MT4-000

Unavailable

12

PLATE A, DISK SPLASH GUARD

52180-MT4-010

Unavailable

14

SWINGARM SET, RR.

52200-MZ7-305

Unavailable

15

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

16

BOLT, FLANGE (6MM)

90111-162-000

$2.62

17

BOLT, FLANGE (6MM)

90111-187-000

$5.21

18

BOLT, FLANGE (14X60)

90155-MT4-000

Unavailable

19

SCREW, PAN (6X12)

90156-MT4-000

Unavailable

20

NUT, FLANGE (18MM)

90305-MB4-003

$11.23

21

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

22

WASHER (6X9)

90513-405-000

$2.00

23

WASHER, CHAIN SLIDER

90556-KR3-000

$2.80

24

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

25

BEARING, NEEDLE

91071-MR7-003

$22.90

26

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

27

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

28

DUST SEAL (26X37X5)

91214-MR7-003

$6.51

29

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

30

CIRCLIP (INNER) (37MM)

94520-37000

$1.99

31

BOLT, FLANGE (6X14)

95701-06014-07

$1.32
