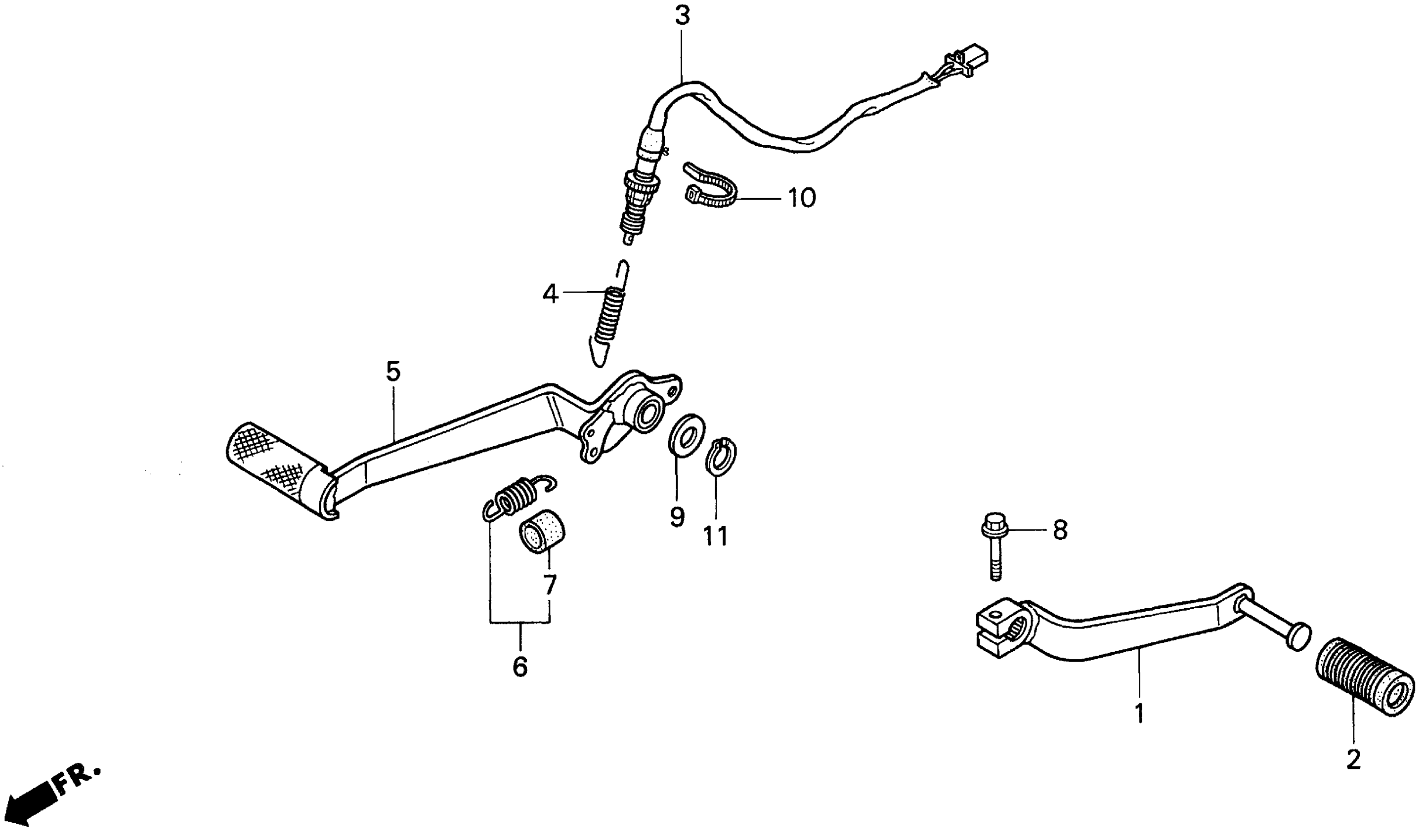

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 PEDAL 94-97 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-MZ7-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

3

SWITCH ASSY., RR. STOP This part replaces 35350-MT4-000.

35350-KR0-405

$17.78

4

SPRING, STOP SWITCH

35357-KY2-700

$5.64

5

PEDAL, RR. BRAKE

46500-MZ7-000

Unavailable

6

SPRING SET, BRAKE PEDAL

46513-KV3-950

Unavailable

7

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.01

8

BOLT, FLANGE (6X20)

90118-KY1-000

$2.93

9

WASHER (15.2X25)

90557-230-000

$2.21

10

BAND, WIRE HARNESS

90652-MB0-000

$3.00

11

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63
