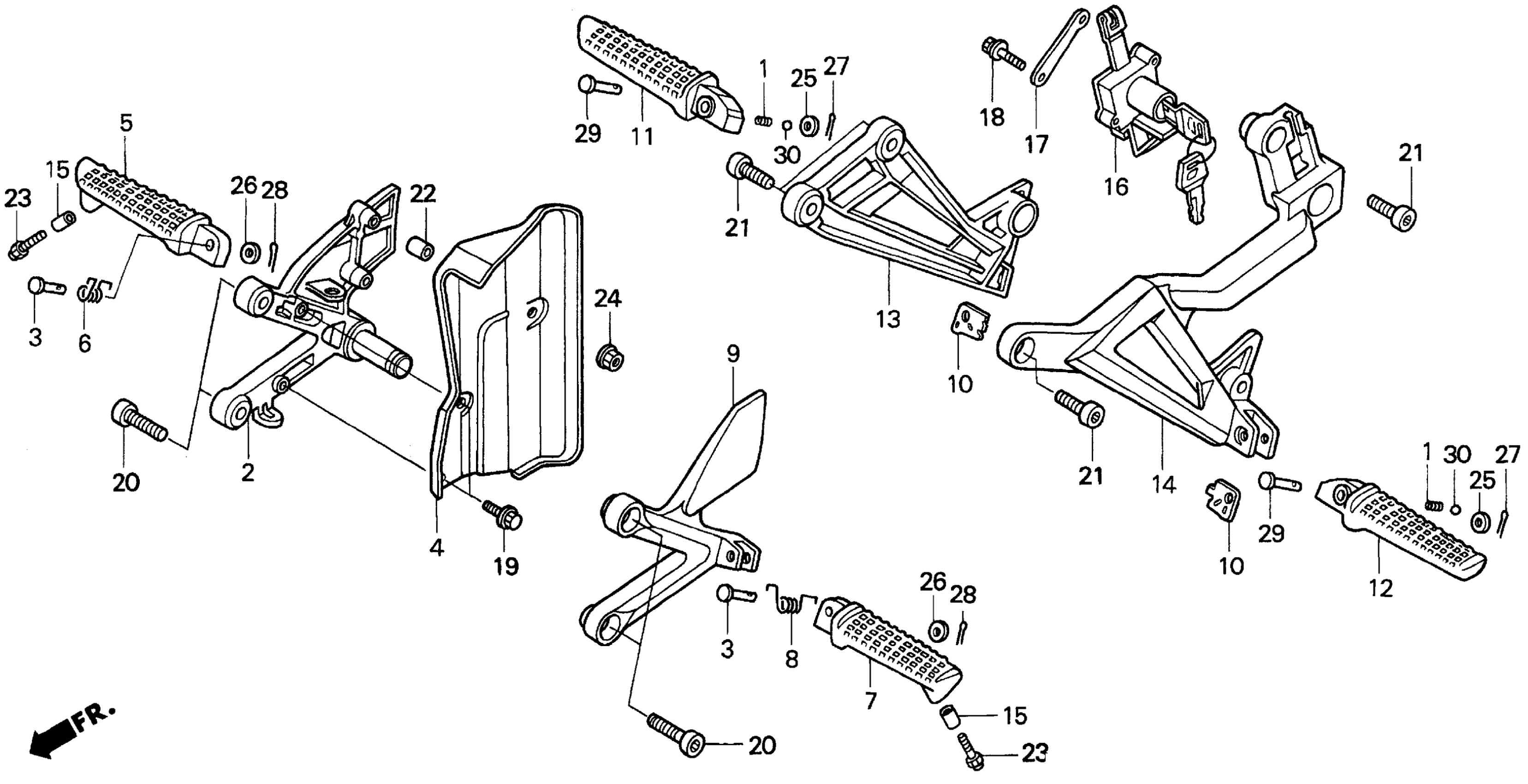

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 STEP 94-97 Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. MAIN STEP

50600-MZ7-000

Unavailable

3

PIN, STEP BAR JOINT

50603-033-010

$3.30

4

GUARD, MAIN STEP HEAT

50606-MZ7-000

Unavailable

5

ARM, R. MAIN STEP

50631-KT7-760

Unavailable

6

SPRING, R. STEP RETURN

50635-ML7-700

Unavailable

7

ARM, L. MAIN STEP

50641-KT7-760

Unavailable

8

SPRING, L. STEP RETURN

50645-KAF-000

Unavailable

8

SPRING, L. STEP RETURN This part replaces 50645-ML7-700.

50645-KAF-000

Unavailable

9

HOLDER, L. MAIN STEP

50700-MZ7-000

Unavailable

10

PLATE, PILLION STEP CLICK

50718-KT7-761

$4.01

11

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$46.30

11

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$46.30

12

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$46.30

12

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$46.30

13

HOLDER, R. PILLION STEP

50750-MZ7-000

Unavailable

14

HOLDER, L. PILLION STEP

50760-MZ7-000

Unavailable

15

COLLAR, STEP (LOWER)

51486-KV3-000

$2.98

16

LOCK ASSY., SEAT

77110-ML7-922

Unavailable

17

PLATE, SEAT LOCK BACK

77160-MZ7-000

Unavailable

18

BOLT, BREAK OFF (6MM)

90008-MZ7-000

$8.03

19

BOLT, FLANGE (6X12)

90029-MT4-000

$2.70

20

BOLT, SOCKET (8X25)

90102-MN8-700

$3.89

21

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

22

COLLAR, ENGINE COVER (17MM) (A)

91552-ZG3-010

Unavailable

23

BOLT, CAP (8X30)

92501-08030-0A

$3.45

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94102-08000

$1.49

27

PIN, SPLIT (1.6X12)

94201-16120

$1.49

28

PIN, SPLIT (2.0X15)

94201-20150

$1.49

29

PIN C, PILLION FOOTPEG

95015-83000

$2.41

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
