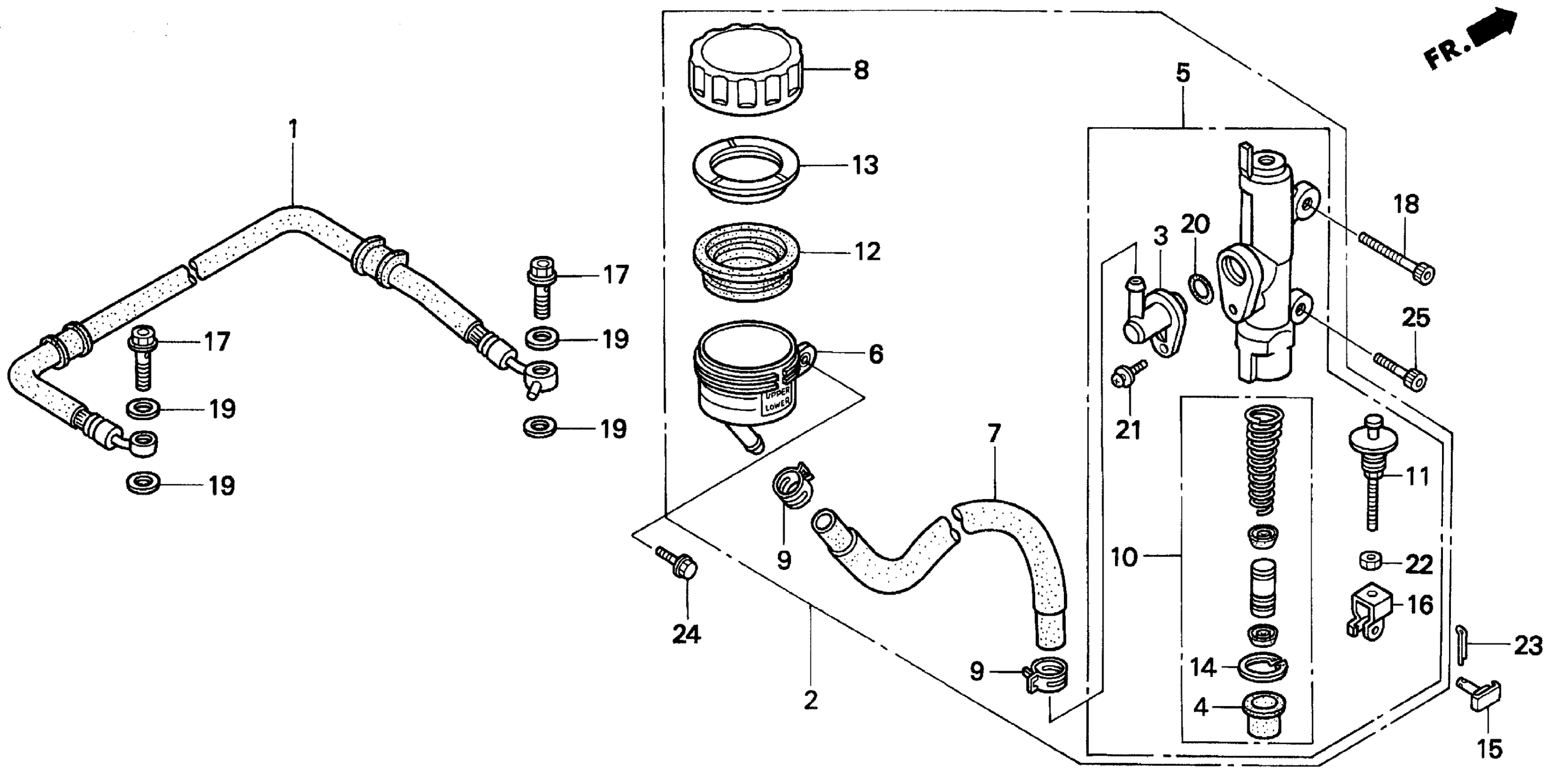

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 RR. BRAKE MASTER CYL. 94-96 Diagram

HOSE, RR. BRAKE

43310-MZ7-003

Unavailable

CONNECTOR

43503-MR7-006

$14.04

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR.

43510-MZ7-305

Unavailable

CUP, OIL (NISSIN)

43511-MR7-016

$32.46

HOSE, MASTER CYLINDER

43512-MZ7-006

Unavailable

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

ROD, PUSH

43530-KV3-701

$19.84

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-500-013

$4.90

PIN, BRAKE ROD

46503-MT4-000

Unavailable

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

BOLT, SOCKET (6X48)

90175-MZ7-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, SOCKET (6X25)

96700-06025-00

$1.80
