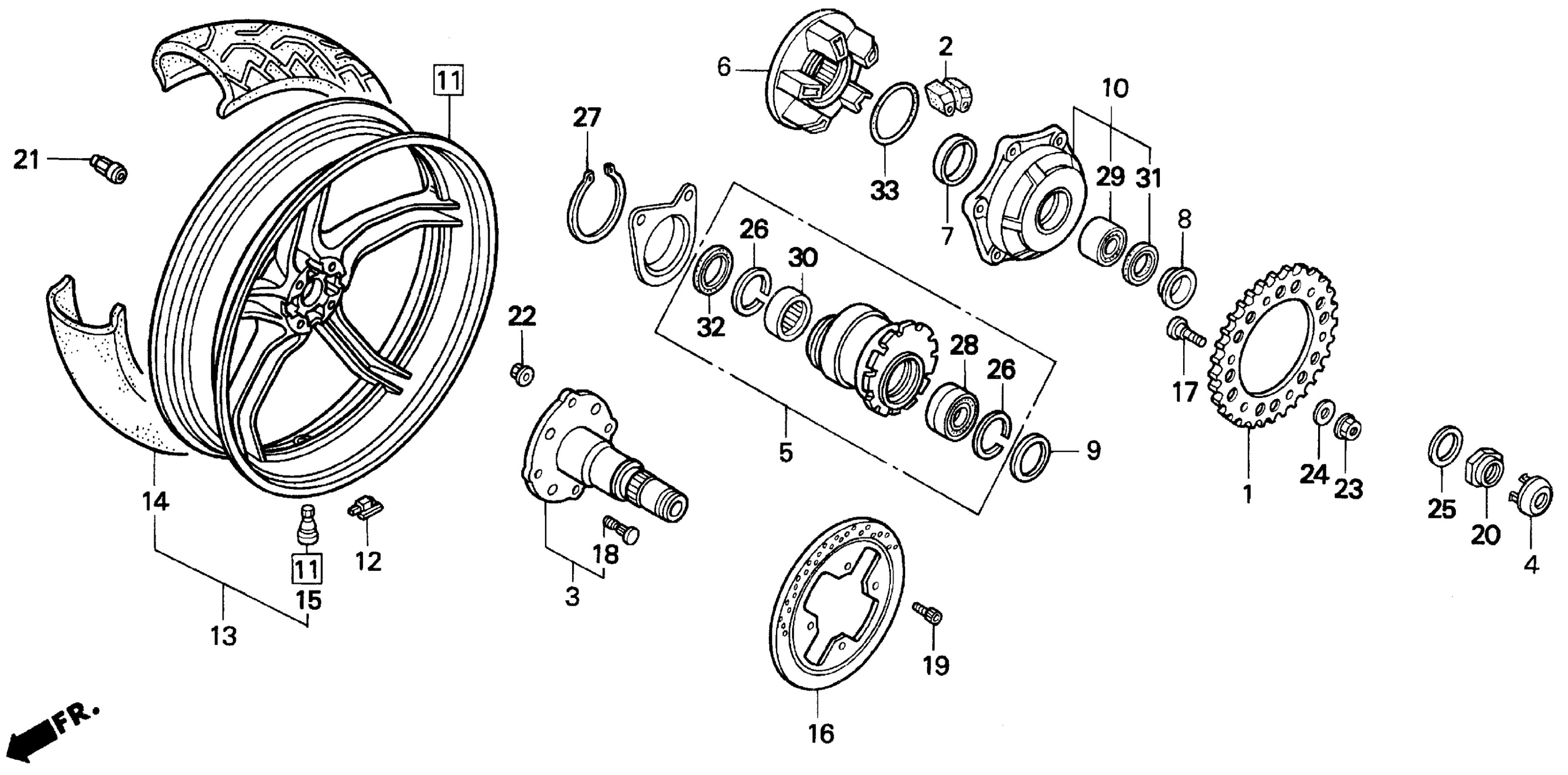

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 REAR WHEEL 94-97 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (43T) This part replaces 41201-MZ7-000.

41201-MBG-000

Unavailable

2

DAMPER, FINAL DRIVEN

41241-MT4-000

Unavailable

3

AXLE, RR.

42300-MZ7-000

Unavailable

4

CAP, RR. AXLE

42303-MT4-000

$10.43

5

HOLDER, BEARING

42500-MN8-000

Unavailable

6

FLANGE, FINAL DRIVEN

42605-MT4-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42621-MT4-000

$19.77

8

COLLAR, RR. AXLE SIDE

42622-MT4-000

$21.89

9

COLLAR, RR. AXLE

42623-MT4-000

Unavailable

10

HUB, SPROCKET

42630-MT4-000

Unavailable

11

WHEEL SET, RR. *NH1* (BLACK)

42650-MZ7-305ZA

Unavailable

12

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

14

TIRE (170/60ZR17) This part replaces 42711-MCS-G02.

42711-MCS-G08

$293.18

14

TIRE (170/60ZR17) This part replaces 42711-MCS-G03.

42711-MCS-G08

$293.18

14

TIRE (170/60ZR17) This part replaces 42711-MCS-G05.

42711-MCS-G08

$293.18

14

TIRE, RR. (170/60ZR17) (BS) (NOT AVAILABLE)

42711-MZ7-003

Unavailable

14

TIRE (170/60ZR17) This part replaces 42711-MZ7-004.

42711-MCS-G08

$293.18

14

TIRE, RR. (170/60ZR17) (MICHELIN)

42711-MZ7-005

Unavailable

14

TIRE (170/60ZR17) This part replaces 42711-MZ7-014.

42711-MCS-G08

$293.18

15

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

16

DISK, RR. BRAKE

43251-MT4-000

Unavailable

17

BOLT, DRIVEN SPROCKET FIXING

90107-MT4-000

$7.60

18

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-025.

90113-SM1-005

$2.78

19

BOLT, SOCKET (8X18)

90152-MR8-000

Unavailable

20

NUT, LOCK (35MM)

90306-MZ7-000

$17.59

21

NUT, WHEEL

90307-MT4-010

$11.70

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

NUT, FLANGE (8MM)

90309-MR8-003

$5.04

24

WASHER (8MM)

90465-MC4-000

$2.51

25

WASHER, CONICAL SPRING (35)

90501-MN8-000

Unavailable

26

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

27

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$10.43

28

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

29

BEARING, RADIAL BALL (35X55X10)

91061-MT4-003

$88.96

30

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

31

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

31

DUST SEAL (45X55X5) (ARAI) This part replaces 91258-ML7-004.

91258-ML7-003

$8.66

32

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

33

O-RING, SPROCKET HUB (52X2)

91352-MN8-003

$2.61
