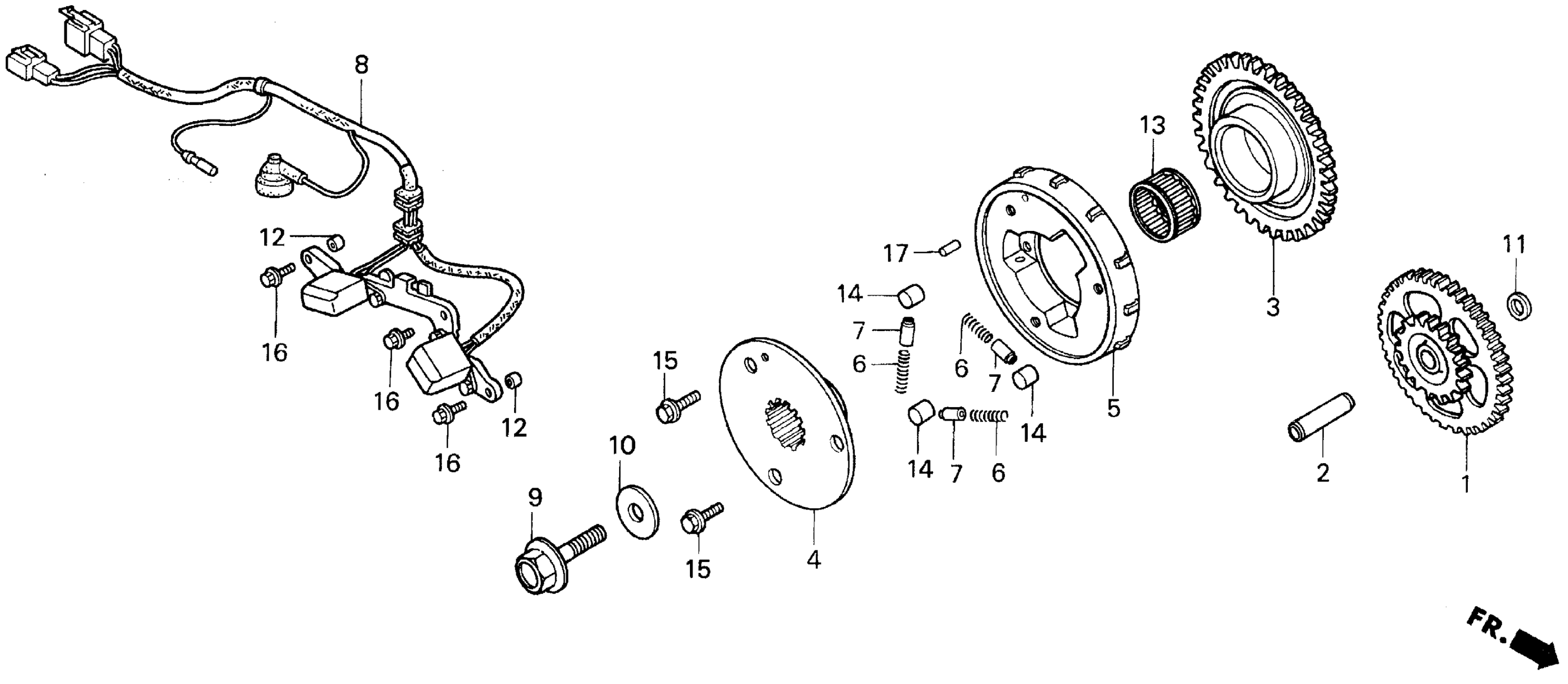

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 PULSE GENERATOR Diagram

GEAR, STARTER REDUCTION (21T/83T)

28101-ML7-920

Unavailable

PIN (10X36.5)

28102-ML7-000

$8.66

GEAR, STARTER CLUTCH (48T)

28110-MB0-010

Unavailable

FLANGE, STARTER CLUTCH

28115-ML7-000

Unavailable

CLUTCH, STARTER (OUTER)

28120-ML7-690

$258.15

SPRING, STARTER CLUTCH ROLLER (RED)

28125-MT4-000

$2.23

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

GENERATOR ASSY., IGNITION PULSE

30300-MZ7-003

Unavailable

BOLT, FLANGE (12X45)

90023-MA6-000

$11.13

WASHER (12X30X4.5)

90401-KK9-960

Unavailable

WASHER (18X10.2)

90405-ML7-000

Unavailable

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.97

BEARING, NEEDLE (30X35X17)

91022-MB0-004

Unavailable

ROLLER (15X13)

91101-516-000

$6.32

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

ROLLER (6X15)

96220-60150

$1.49
