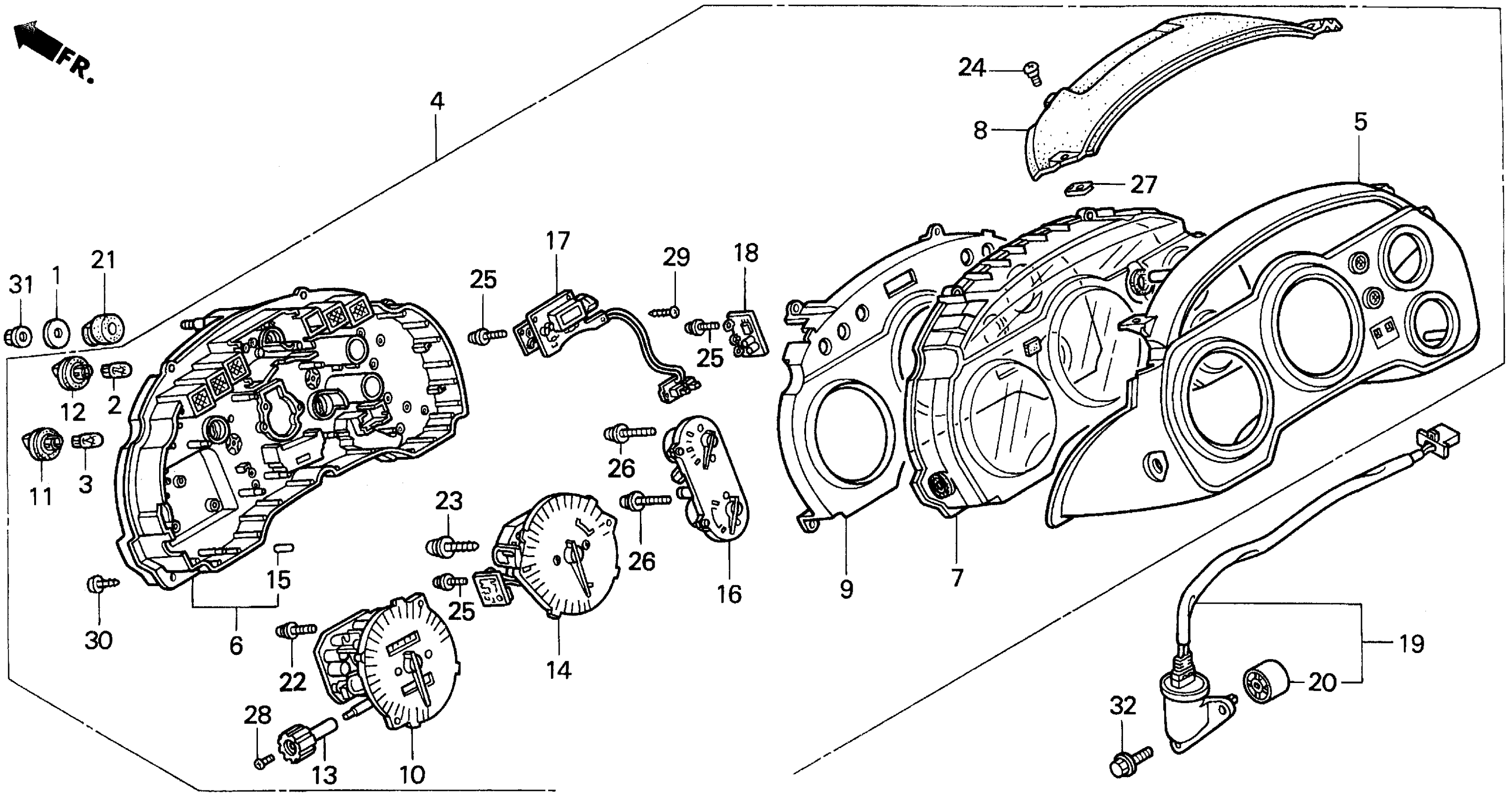

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 METERS 94-97 Diagram

#

Description
Price

1

WASHER, PIVOT

17936-921-000

$1.49

2

BULB (12V 5W 3CP) (STANLEY)

34901-SB0-671

$2.97

3

BULB, WEDGE BASE (12V 1.7W)

34908-MB9-871

$2.78

4

METER ASSY., COMBINATION

37100-MZ7-671

Unavailable

5

CASE ASSY. (UPPER)

37102-MZ7-008

Unavailable

6

CASE ASSY. (LOWER)

37103-MZ7-671

Unavailable

7

LENS ASSY., METER

37104-MZ7-008

Unavailable

8

VISOR

37110-MZ7-008

Unavailable

9

PLATE ASSY., REFLECTING

37120-MZ7-008

Unavailable

10

SPEEDOMETER ASSY.

37200-MZ7-671

Unavailable

11

SOCKET ASSY.

37205-MZ7-008

Unavailable

12

SOCKET ASSY.

37206-MZ7-008

Unavailable

13

KNOB, TRIP

37220-MA6-008

$12.84

14

TACHOMETER ASSY.

37250-MZ7-671

Unavailable

15

RUBBER, CUSHION

37304-198-901

$3.89

16

METER ASSY., FUEL & TEMPERATURE

37430-MZ7-008

Unavailable

17

CLOCK ASSY.

37460-MZ7-008

Unavailable

18

CHECK UNIT, BULB

37640-MZ7-008

Unavailable

19

SENSOR ASSY., SPEED This part replaces 37700-MZ7-601.

37700-MZ7-602

Unavailable

20

JOINT, SPEEDOMETER

44808-MR7-013

$9.98

21

RUBBER A, BATTERY BOX

50328-425-000

$3.83

22

SCREW-WASHER, SPECIAL (3X18)

90102-MAE-611

Unavailable

23

SCREW, TAPPING (4X19)

90103-KV3-951

Unavailable

24

SCREW, HINGE SETTING (4X10)

90106-MZ7-008

Unavailable

25

SCREW-WASHER (3X13) (NS)

90132-SD2-003

$1.59

26

SCREW-WASHER (3X22)

90135-SM4-003

$1.57

27

NUT, SPRING (4MM)

90151-MZ7-008

Unavailable

28

SCREW, PAN (2X6)

90158-KM7-911

$1.92

29

SCREW, TAPPING (3X12)

93901-22320

$1.49

30

SCREW, TAPPING (4X16)

93903-24480

$1.49

31

NUT, FLANGE (6MM)

94050-06080

$1.49

32

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
