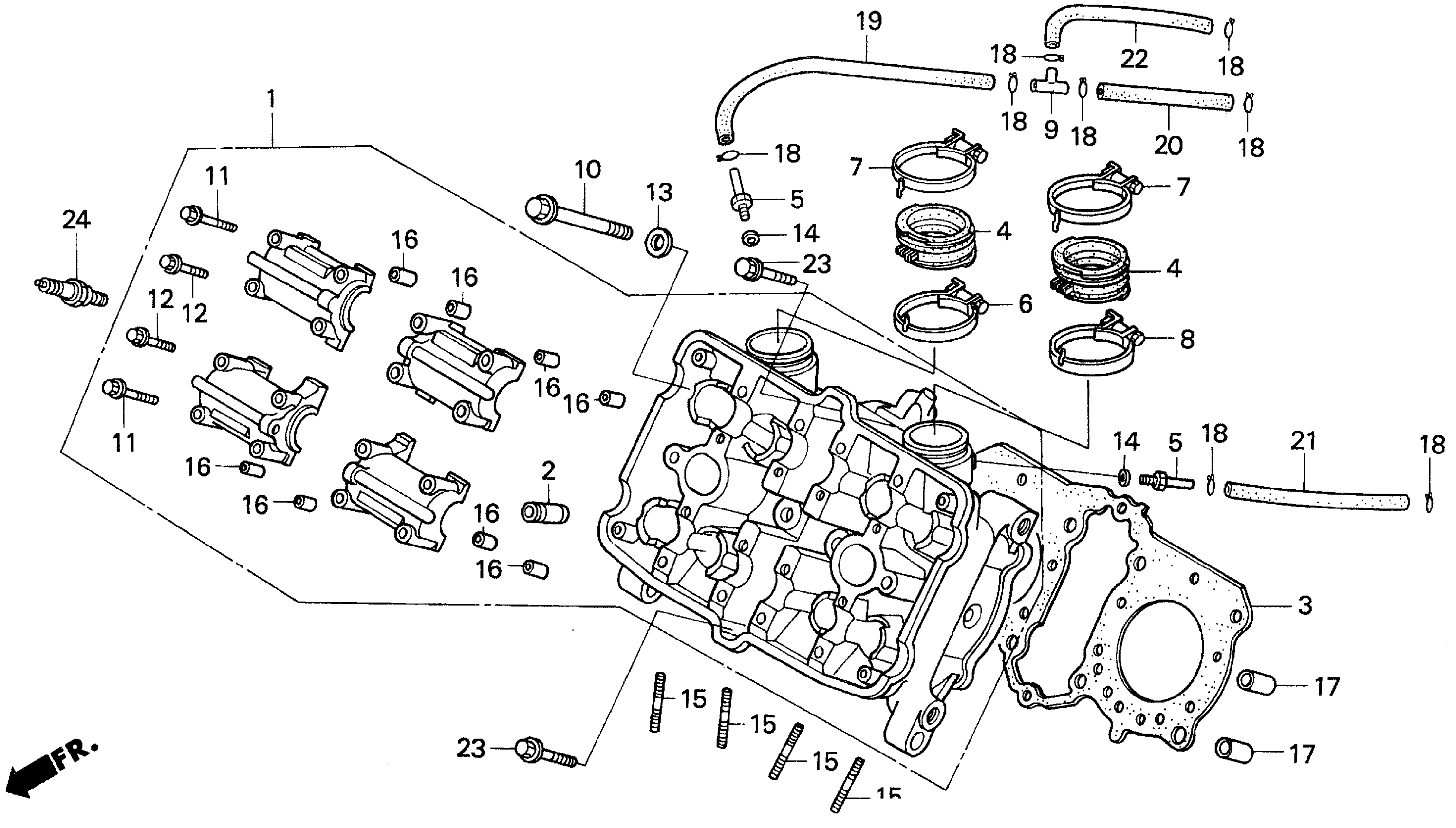

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. | Use up to Engine SN 2704370 This part replaces 12010-MZ7-730.

12010-MZ7-731

Unavailable

1

CYLINDER HEAD ASSY.

12010-MZ7-731

Unavailable

2

GUIDE, VALVE (OS)

12204-MT4-305

$23.95

3

GASKET, CYLINDER HEAD

12251-MT4-014

Unavailable

4

INSULATOR, CARBURETOR

16211-MZ5-000

$56.33

5

JOINT, BOOSTER

16214-MB0-000

$4.76

6

BAND A, INSULATOR

16219-MM4-000

Unavailable

7

BAND B, INSULATOR

16220-MM4-000

$11.72

8

BAND B, INSULATOR

16220-MM4-000

$11.72

10

BOLT, FLANGE (9X93)

90007-ML7-920

$11.45

11

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

12

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

13

WASHER (9MM)

90445-MM4-000

$4.30

14

WASHER, SEALING (5MM)

90452-323-000

$1.59

15

BOLT 2, STUD (6X20)

92900-06020-0E

$2.40

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

PIN, DOWEL (12X20)

94301-12200

$2.29

18

CLIP, TUBE (B7)

95002-02070

$1.80

21

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-20M

$9.67

22

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-20M

$9.67

23

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

24

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$8.09

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$8.09

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$8.09

24

SPARK PLUG (CR9EH9) (NGK)

98059-59916

$8.09

24

SPARK PLUG (CR9EH9) (NGK) | (Optional).

98059-59916

$8.09

24

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09

24

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$8.09
