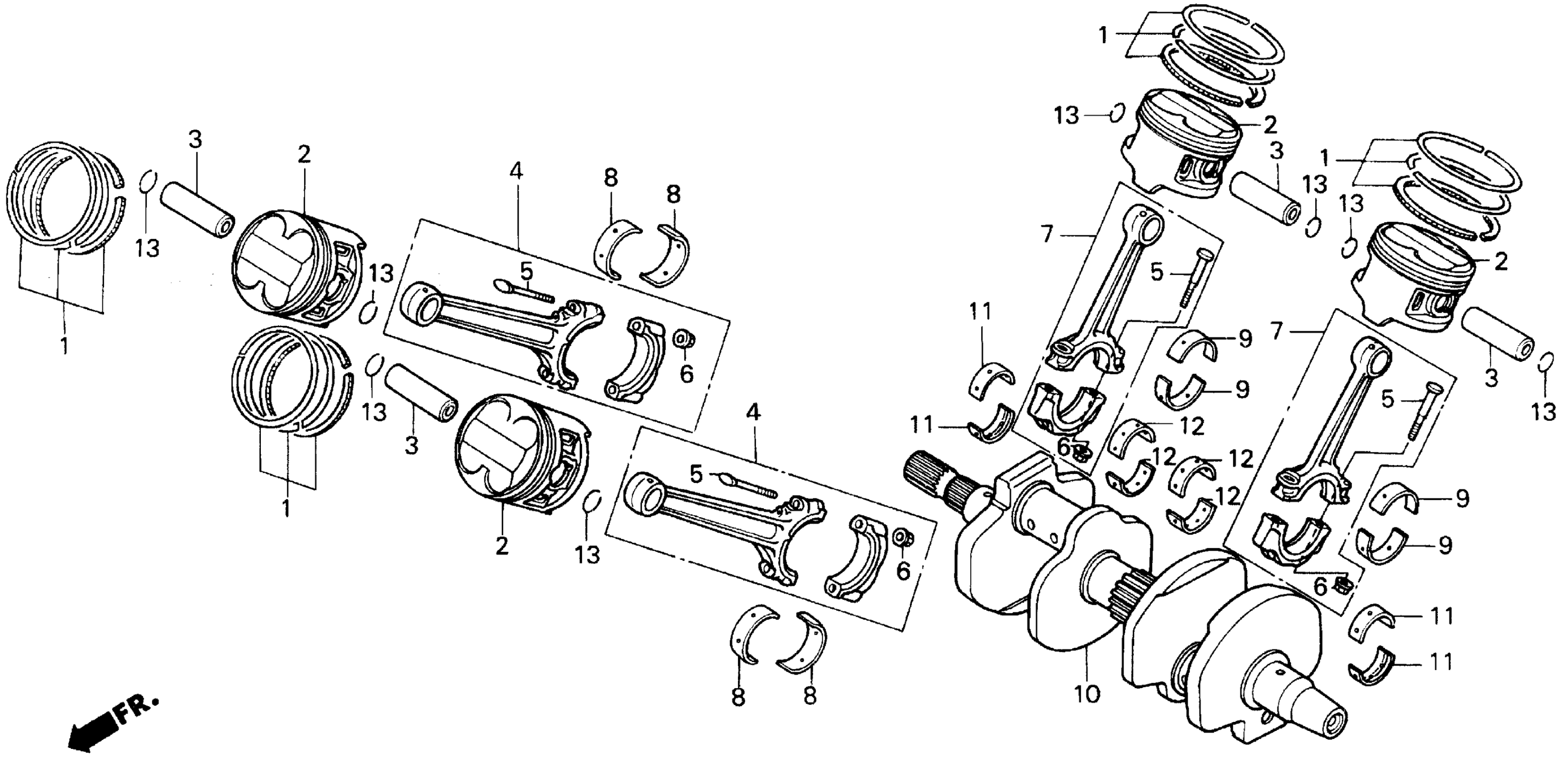

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON

13011-MT4-315

$56.74

1

RING SET, PISTON (OS 0.25) | (Optional).

13021-MT4-315

$49.98

1

RING SET, PISTON (OS 0.50) | (Optional).

13031-MT4-315

$44.61

2

PISTON

13101-MY7-010

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-MY7-305

Unavailable

2

PISTON (OS 0.50) | (Optional).

13103-MY7-305

Unavailable

3

PIN, PISTON

13111-MY5-600

Unavailable

4

ROD ASSY., FR. CONNECTING

13210-ML7-020

$206.95

5

BOLT, CONNECTING ROD

13213-ML7-020

$8.00

6

NUT, CONNECTING ROD

13215-ML7-000

$3.89

7

ROD ASSY., RR. CONNECTING

13220-ML7-020

Unavailable

8

BEARING A, FR. CONNECTING ROD (BLUE)

13224-ML7-690

$12.20

8

BEARING B, FR. CONNECTING ROD (BLACK)

13225-ML7-690

$12.74

8

BEARING C, FR. CONNECTING ROD (BROWN)

13226-ML7-690

Unavailable

8

BEARING D, FR. CONNECTING ROD (GREEN)

13227-ML7-690

Unavailable

8

BEARING E, FR. CONNECTING ROD (YELLOW)

13228-ML7-690

$13.73

9

BEARING A, RR. CONNECTING ROD (BLUE/BLUE)

13234-ML7-690

$12.74

9

BEARING B, RR. CONNECTING ROD (BLACK/BLACK)

13235-ML7-690

Unavailable

9

BEARING C, RR. CONNECTING ROD (BROWN/BROWN)

13236-ML7-690

$13.62

9

BEARING D, RR. CONNECTING ROD (GREEN/GREEN)

13237-ML7-690

$12.74

9

BEARING E, RR. CONNECTING ROD (YELLOW/YELLOW)

13238-ML7-690

Unavailable

10

CRANKSHAFT

13310-MZ7-000

Unavailable

11

BEARING A, CRANKSHAFT SIDE (BLUE)

13313-ML7-691

$14.62

11

BEARING B, CRANKSHAFT SIDE (BLACK)

13314-ML7-691

Unavailable

11

BEARING C, CRANKSHAFT SIDE (BROWN)

13315-ML7-691

$15.46

11

BEARING D, CRANKSHAFT SIDE (GREEN)

13316-ML7-691

$15.46

11

BEARING E, CRANKSHAFT SIDE (YELLOW)

13317-ML7-691

$15.46

12

BEARING A, CRANKSHAFT CENTER (BLUE)

13323-MR7-013

$15.46

12

BEARING B, CRANKSHAFT CENTER (BLACK)

13324-MR7-013

Unavailable

12

BEARING C, CRANKSHAFT CENTER (BROWN)

13325-MR7-013

$15.46

12

BEARING D, CRANKSHAFT CENTER (GREEN)

13326-MR7-013

Unavailable

12

BEARING E, CRANKSHAFT CENTER (YELLOW)

13327-MR7-013

$15.46

13

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
