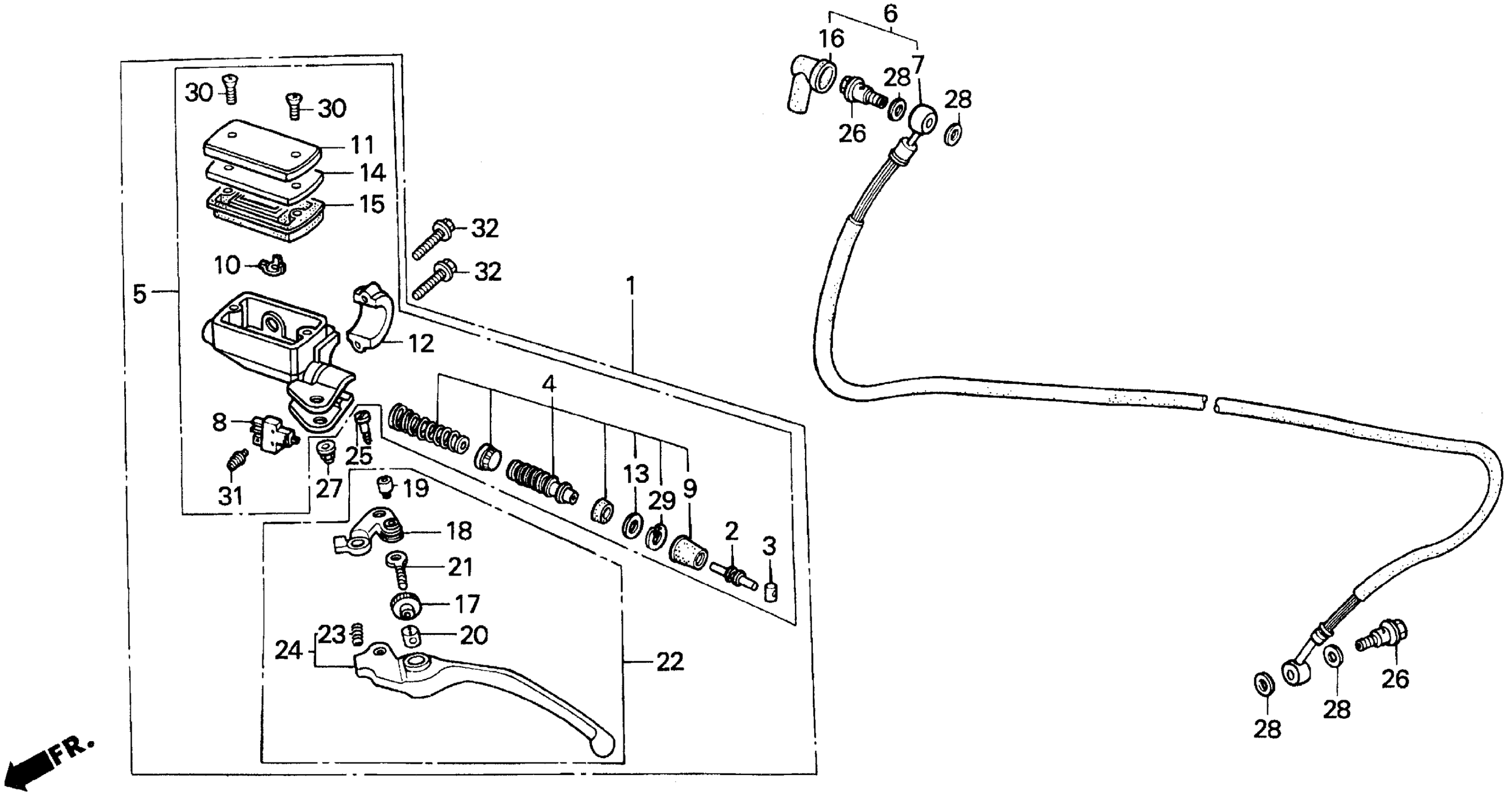

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MZ7-305

Unavailable

HOSE, CLUTCH

22900-MZ7-003

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM4-006.

45513-MM4-016

$18.48

CAP, MASTER CYLINDER (NISSIN)

45513-MM4-016

$18.48

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

ADJUSTER, R. HANDLEBAR

53172-KV0-006

Unavailable

KNOCKER, CLUTCH

53172-MJ4-701

Unavailable

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

JOINT, LEVER

53179-KV0-006

Unavailable

BOLT, ADJUSTING

53180-KV0-006

Unavailable

LEVER ASSY., L. HANDLE This part replaces 53180-ML7-691.

53180-ML7-692

Unavailable

LEVER ASSY., L. HANDLE

53180-ML7-692

Unavailable

SPRING, HANDLEBAR

53181-KV0-006

$4.00

LEVER SET, L. HANDLE

53188-ML7-305

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
