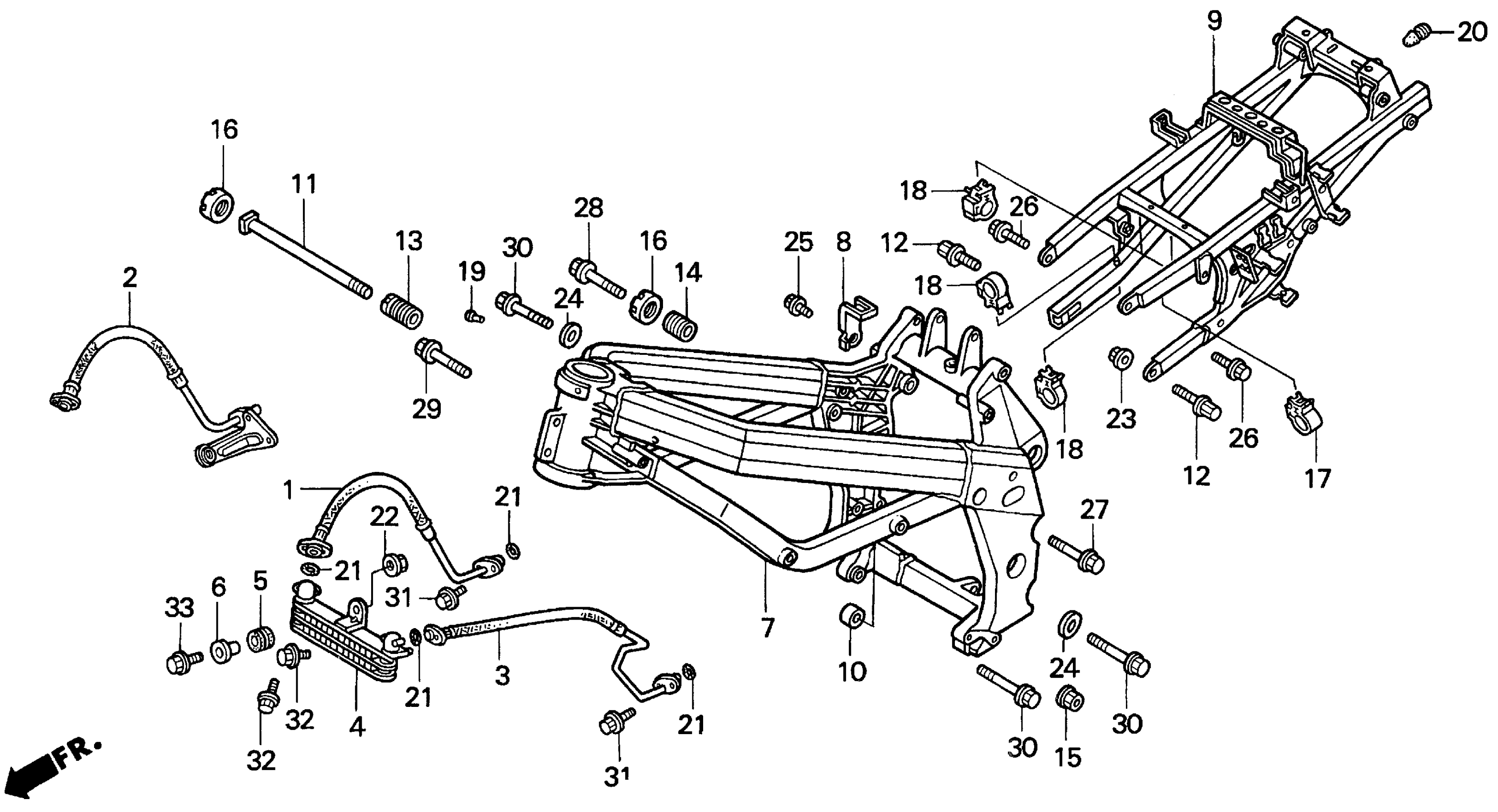

Honda VFR750FA (96) VFR, JPN, VIN# JH2RC360-TM600001 FRAME 94-97 Diagram

#

Description
Price

1

PIPE, R. OIL HOSE

15510-MT4-000

Unavailable

3

PIPE, L. OIL HOSE

15515-MT4-000

Unavailable

4

COOLER, OIL

15600-MT4-003

Unavailable

5

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

6

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

7

FRAME

50100-MZ7-730

Unavailable

8

CLAMP, MAIN HARNESS

50175-MT4-000

Unavailable

9

RAIL, SEAT

50240-MZ7-000

Unavailable

10

COLLAR, FR. ENGINE HANGER (LOWER)

50356-KT8-000

Unavailable

11

BOLT A, RR. ENGINE HANGER (LOWER)

90104-MT4-000

Unavailable

12

BOLT, SPECIAL (10X37)

90110-MZ7-000

Unavailable

13

BOLT B, RR. ENGINE HANGER (LOWER)

90119-MR8-000

$22.86

14

BOLT, RR. HANGER ADJUSTING (UPPER)

90125-MR8-000

Unavailable

15

NUT, FLANGE (12MM)

90306-181-761

$5.66

16

NUT, LOCK (22X2.0)

90310-MR7-000

$24.36

17

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

18

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

20

PLUG, CONE TYPE

90899-422-610

$1.81

21

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.12

22

NUT, FLANGE (6MM)

94050-06070

$1.32

23

NUT, FLANGE (10MM)

94050-10080

$2.93

24

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.71

25

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

26

BOLT, FLANGE (10X30)

95701-10030-08

$2.03

26

BOLT, FLANGE (10X30) This part replaces 95801-10030-08.

95701-10030-08

$2.03

27

BOLT, FLANGE (10X35)

95801-10035-00

$2.03

28

BOLT, FLANGE (10X60)

95801-10060-00

$2.04

29

BOLT, FLANGE (10X65)

95801-10065-08

$3.03

30

BOLT, FLANGE (10X80)

95801-10080-08

$2.90

31

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

32

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

33

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
