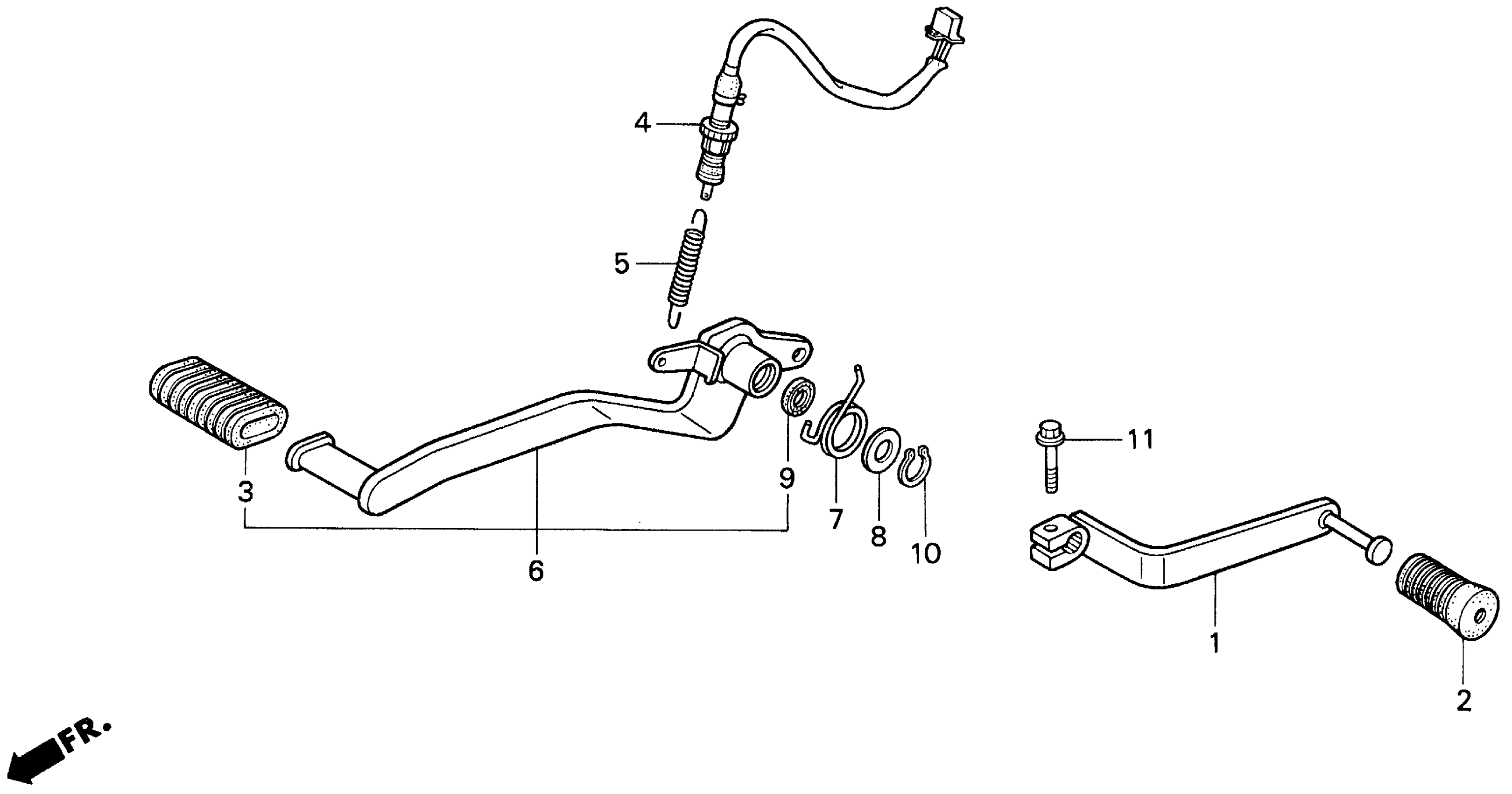

Honda VFR750FA (93) VFR, JPN, VIN# JH2RC360-PM300001 TO JH2RC360-PM300992 PEDAL 90-93 Diagram

PEDAL, GEARSHIFT

24701-MT4-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

SWITCH ASSY., RR. STOP This part replaces 35350-MT4-000.

35350-KR0-405

$19.25

SPRING, STOP SWITCH

35357-ME9-000

$4.74

PEDAL, BRAKE

46500-MT4-000

Unavailable

SPRING, BRAKE PEDAL

46514-MS2-000

Unavailable

WASHER, BUSH

53312-657-000

$6.70

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
