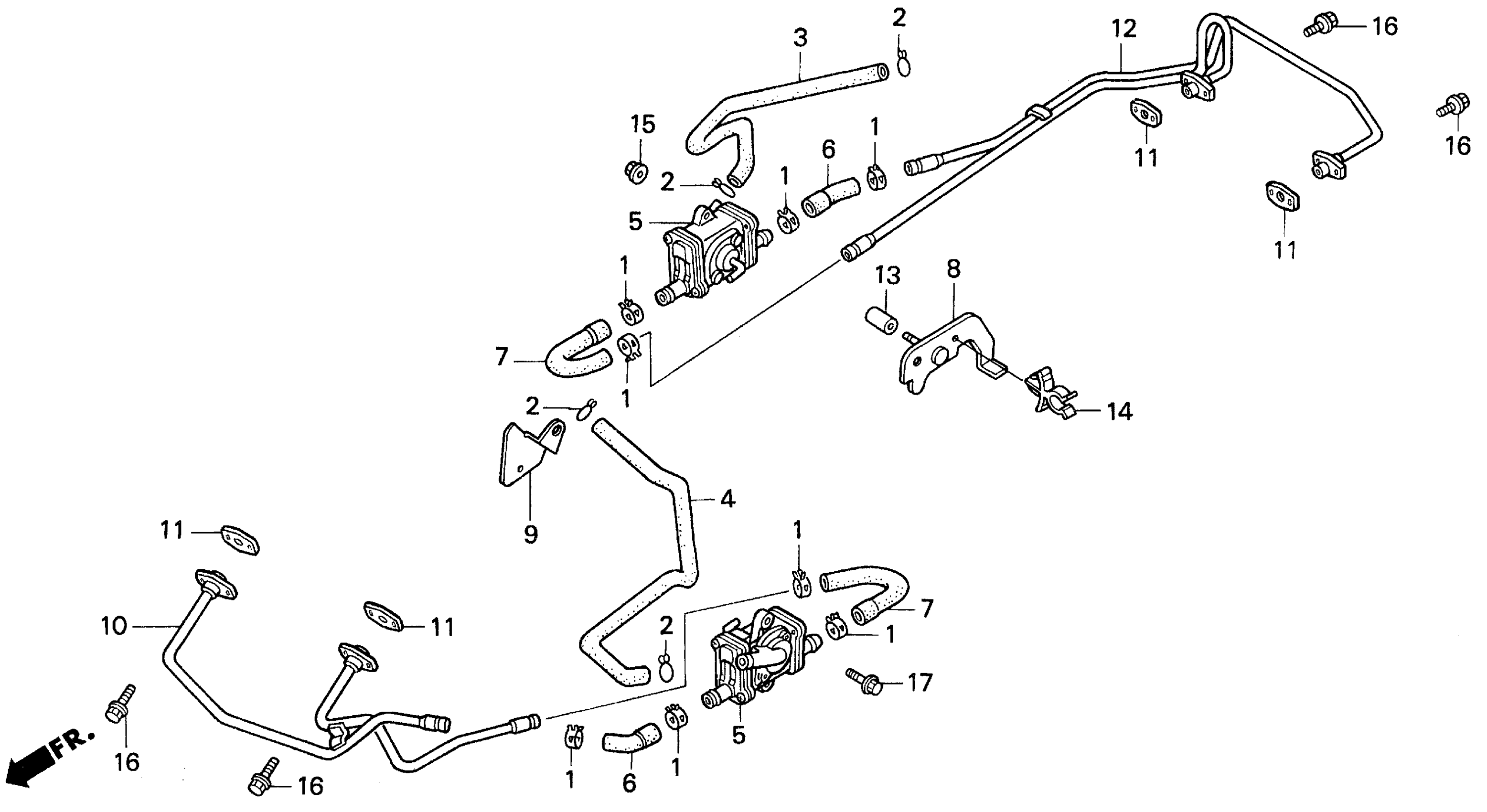

Honda VFR750FA (93) VFR, JPN, VIN# JH2RC360-PM300001 TO JH2RC360-PM300992 AIR SUCTION VALVE 90-93 Diagram

CLIP B, FUEL HOSE

16968-MC7-000

$6.89

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

HOSE, R. AIR SUCTION

17460-MT4-730

Unavailable

HOSE, L. AIR SUCTION

17470-MT4-730

Unavailable

VALVE ASSY., AIR SUCTION

18600-MY7-650

Unavailable

TUBE A, FR.

18618-MT4-730

Unavailable

TUBE B, FR.

18619-MT4-730

Unavailable

BRACKET, R. AIR SUCTION VALVE

18626-MT4-731

Unavailable

BRACKET, L. AIR SUCTION VALVE

18627-MT4-731

Unavailable

PIPE, FR. AIR

18640-MT4-730

Unavailable

GASKET, AIR FEED PIPE

18645-MT4-730

$2.90

PIPE, RR. AIR

18650-MT4-730

Unavailable

COLLAR, FAN

19512-ZA7-000

$2.83

CLIP, TUBE This part replaces 91405-750-800.

90602-ZG5-003

$2.78

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X18)

95701-06018-08

$1.62
