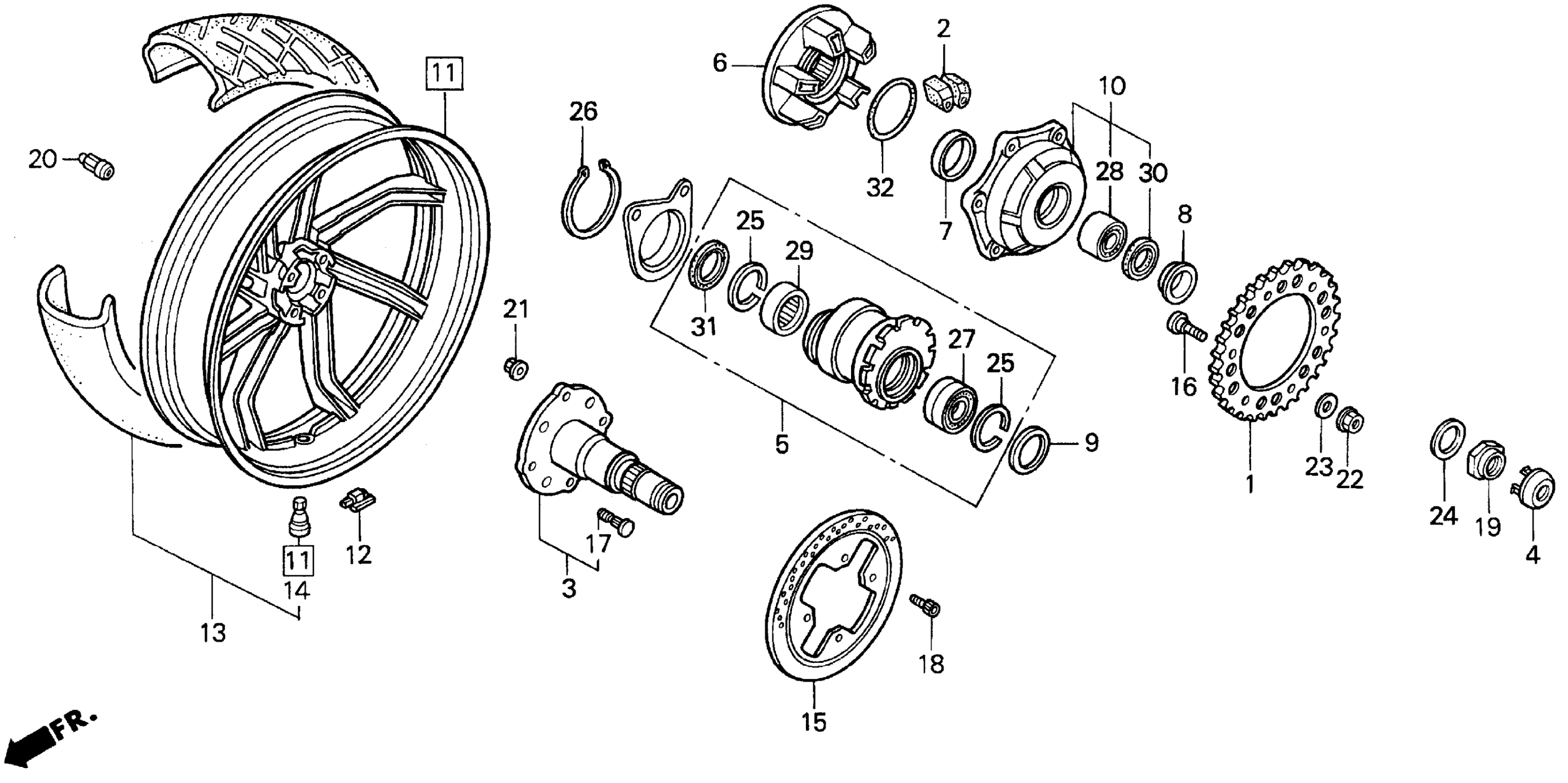

Honda VFR750FA (92) VFR, JPN, VIN# JH2RC360-NM200008 TO JH2RC360-NM200817 REAR WHEEL 90-93 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (43T) This part replaces 41201-MT4-000.

41201-MBG-000

Unavailable

1

SPROCKET, FINAL DRIVEN (43T) This part replaces 41201-MZ7-000.

41201-MBG-000

Unavailable

2

DAMPER, FINAL DRIVEN

41241-MT4-000

Unavailable

3

AXLE, RR. This part replaces 42300-MT4-000.

42300-MZ7-000

Unavailable

3

AXLE, RR.

42300-MZ7-000

Unavailable

4

CAP, RR. AXLE

42303-MT4-000

$10.43

5

HOLDER, BEARING

42500-MN8-000

Unavailable

6

FLANGE, FINAL DRIVEN

42605-MT4-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42621-MT4-000

$19.77

8

COLLAR, RR. AXLE SIDE

42622-MT4-000

$21.89

9

COLLAR, RR. AXLE

42623-MT4-000

Unavailable

10

HUB, SPROCKET

42630-MT4-000

Unavailable

11

WHEEL SET, RR. *NH167MU* (IRON NAIL SILVER METALLIC-U)

42650-MT4-305ZC

Unavailable

12

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

13

TIRE (170/60-17) This part replaces 42710-MT4-861.

42711-MS2-872

Unavailable

14

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

15

DISK, RR. BRAKE

43251-MT4-000

Unavailable

16

BOLT, DRIVEN SPROCKET FIXING

90107-MT4-000

$7.60

17

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-005.

90113-SM1-005

$2.78

17

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-015.

90113-SM1-005

$2.78

17

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-023.

90113-SM1-005

$2.78

17

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-025.

90113-SM1-005

$2.78

18

BOLT, SOCKET (8X18)

90152-MR8-000

Unavailable

19

NUT, LOCK (35MM)

90306-MN8-000

Unavailable

20

NUT, WHEEL

90307-MT4-010

$11.70

21

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

21

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

22

NUT, FLANGE (8MM)

90309-MR8-003

$5.04

23

WASHER (8MM)

90465-MC4-000

$2.51

24

WASHER, CONICAL SPRING (35)

90501-MN8-000

Unavailable

25

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

26

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$10.43

27

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

28

BEARING, RADIAL BALL (35X55X10)

91061-MT4-003

$88.96

29

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

30

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

30

DUST SEAL (45X55X5) (ARAI) This part replaces 91258-ML7-004.

91258-ML7-003

$8.66

31

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

32

O-RING, SPROCKET HUB (52X2)

91352-MN8-003

$2.61
