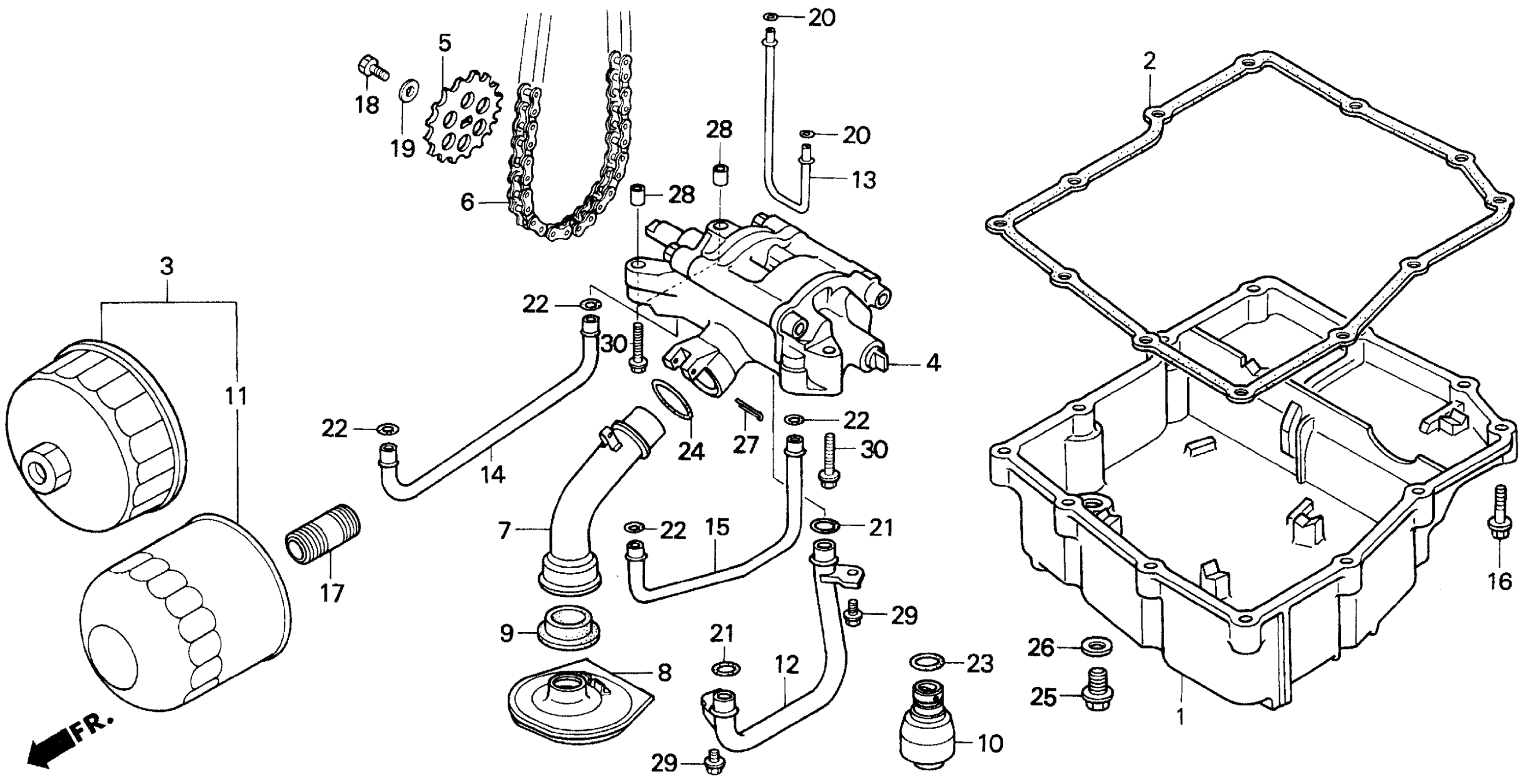

Honda VFR750FA (92) VFR, JPN, VIN# JH2RC360-NM200008 TO JH2RC360-NM200817 OIL PUMP 90-93 Diagram

#

Description
Price

1

PAN, OIL

11211-MY7-000

Unavailable

2

GASKET, OIL PAN

11315-MY7-000

Unavailable

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

3

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

4

PUMP ASSY., OIL

15100-ML7-690

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MB0-010

Unavailable

6

CHAIN, OIL PUMP

15140-ML7-003

$35.67

7

PIPE, OIL STRAINER

15151-ML7-000

Unavailable

8

STRAINER, OIL

15153-ML7-690

Unavailable

9

GASKET, OIL STRAINER

15154-ML7-000

Unavailable

10

VALVE ASSY., RELIEF

15220-MJ6-000

Unavailable

11

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 2207831 This part replaces 15410-MM9-003.

15410-MFJ-D02

$15.84

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

12

PIPE A, OIL

15511-ML7-000

Unavailable

13

PIPE B, OIL

15512-ML7-000

Unavailable

14

PIPE C, OIL

15521-ML7-000

Unavailable

15

PIPE D, OIL

15522-ML7-000

Unavailable

16

BOLT, FLANGE (6X28) (NSHF) This part replaces 90001-GHB-680.

90004-GHB-680

$3.33

16

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

17

BOSS, OIL FILTER

90019-MB0-000

$8.61

18

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

19

WASHER (6X2.3)

90488-MB0-000

$4.37

20

O-RING (6X2) (NOK)

91307-ML7-004

$2.90

21

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

22

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

23

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

23

O-RING (14.8X2.2)

91313-MG7-004

$3.67

24

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

24

O-RING (21.2X2.4) (ARAI) This part replaces 91331-PC9-004.

91331-PC9-003

$3.13

25

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, DOWEL (8X14)

94301-08140

$2.25

29

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

30

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
