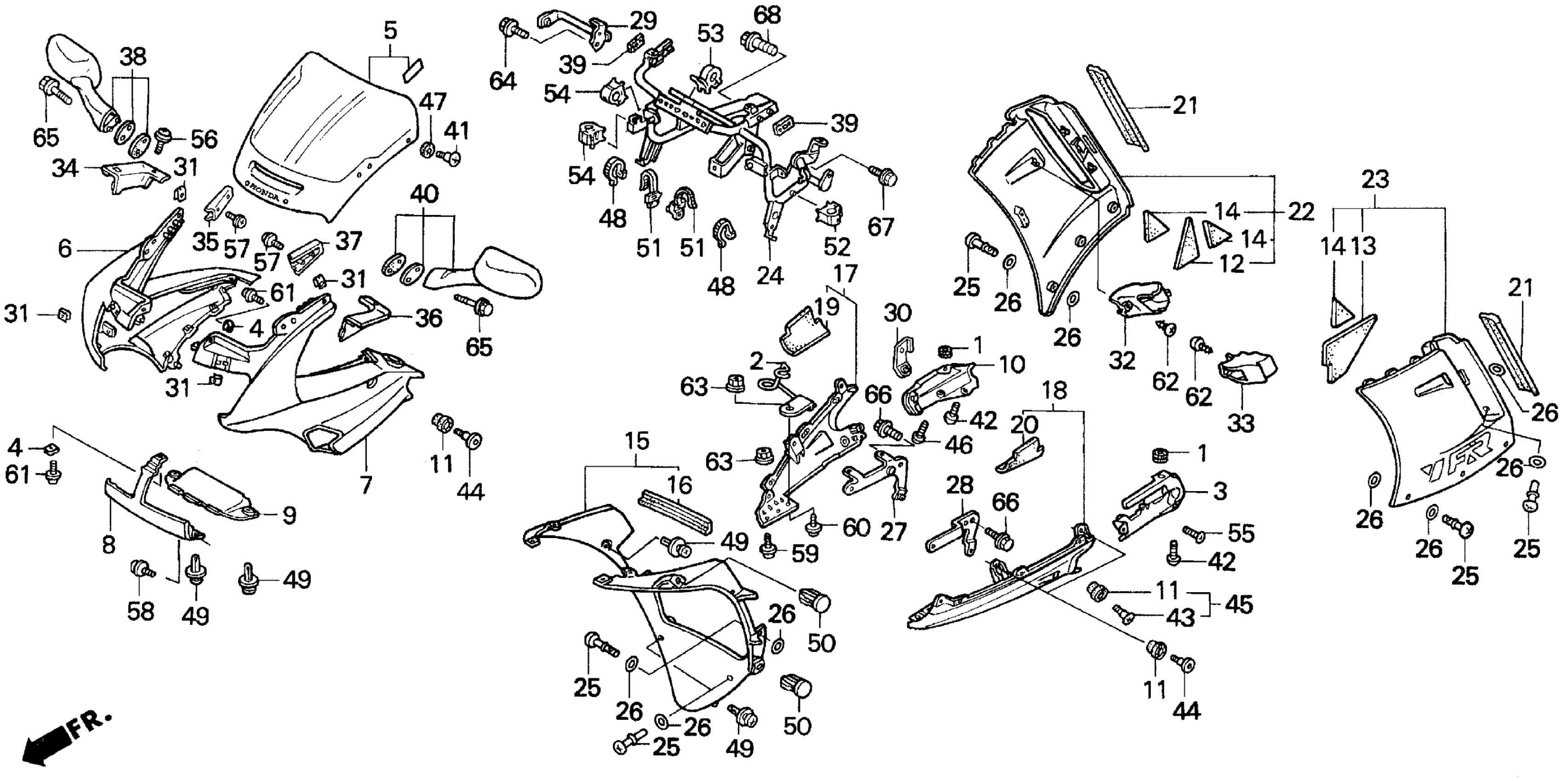

Honda VFR750FA (92) VFR, JPN, VIN# JH2RC360-NM200008 TO JH2RC360-NM200817 COWL 90-93 Diagram

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.75

COVER, L. (LOWER) *PB184MU* (GRANITE BLUE METALLIC-U)

50536-MY7-000ZB

Unavailable

NUT, SPEEDOMETER BODY SETTING

61306-167-000

$5.04

WINDSCREEN SET (TYPE2) (WL)

64180-MY7-670ZA

Unavailable

COWL, R. (UPPER) *PB184MU* (WOL) (GRANITE BLUE METALLIC-U)

64211-MY7-000ZB

Unavailable

COWL, L. (UPPER) *PB184MU* (GRANITE BLUE METALLIC-U)

64212-MY7-670ZA

Unavailable

COWL, FR. CENTER *PB184MU* (GRANITE BLUE METALLIC-U)

64213-MT4-000ZC

Unavailable

GUIDE, OIL COOLER AIR

64216-MT4-880

Unavailable

COVER, R. (LOWER) *PB184MU* (GRANITE BLUE METALLIC-U)

64221-MY7-650ZB

Unavailable

RUBBER, FAIRING MOUNTING

64246-MJ4-670

$4.80

MAT, COWL (LOWER) (A)

64251-MR8-300

Unavailable

MAT, MIDDLE COWL

64251-MT4-300

Unavailable

MAT, COWL (LOWER) (B)

64252-MR8-300

Unavailable

COWL, HALF (INNER) *PB184MU* (GRANITE BLUE METALLIC-U)

64270-MT4-730ZC

Unavailable

RUBBER, HALF HEAT (INNER)

64276-MT4-730

Unavailable

COWL, R. (LOWER) *PB184MU* (GRANITE BLUE METALLIC-U) (NOT AVAILABLE)

64311-MT4-730ZC

Unavailable

COWL, L. (LOWER) *PB184MU* (GRANITE BLUE METALLIC-U)

64312-MT4-730ZC

Unavailable

MAT, R. COWL (LOWER)

64315-MT4-730

Unavailable

MAT, L. COWL (LOWER)

64316-MT4-730

Unavailable

RUBBER, MIDDLE COWL

64415-MT4-000

Unavailable

COWL SET, R. MIDDLE (TYPE2) (WL)

64430-MY7-650ZB

Unavailable

COWL SET, L. MIDDLE (TYPE2) (WL)

64470-MY7-650ZB

Unavailable

STAY, COWL MAIN (UPPER)

64500-MT4-020

Unavailable

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.52

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

STAY, R. FR. COWL (LOWER)

64511-MT4-010

Unavailable

STAY, L. FR. COWL (LOWER)

64512-MT4-010

Unavailable

STAY, COWL SUB (UPPER)

64515-MT4-000

Unavailable

STAY, R. RR. COWL (LOWER)

64516-MT4-000

Unavailable

NUT, CLIP (4MM) This part replaces 64527-ML7-000.

64527-KY2-700

$4.46

DUCT, R. AIR *NH280R* (ARMOR BLACK)

64570-MT4-000ZA

Unavailable

DUCT, L. AIR *NH280R* (ARMOR BLACK)

64580-MT4-000ZA

Unavailable

PANEL, R. (INNER) *NH280* (ARMOR BLACK) This part replaces 64590-MT4-000ZA.

64590-MT4-000ZB

Unavailable

PANEL, R. (INNER) *NH280* (ARMOR BLACK)

64590-MT4-000ZB

Unavailable

COVER, R. COWL (UPPER) *NH280* (ARMOR BLACK) This part replaces 64591-MT4-000ZA.

64591-MT4-000ZB

Unavailable

COVER, R. COWL (UPPER) *NH280* (ARMOR BLACK)

64591-MT4-000ZB

Unavailable

PANEL, L. (INNER) *NH280* (ARMOR BLACK) This part replaces 64595-MT4-000ZA.

64595-MT4-000ZB

Unavailable

PANEL, L. (INNER) *NH280* (ARMOR BLACK)

64595-MT4-000ZB

Unavailable

COVER, L. COWL (UPPER) *NH280* (ARMOR BLACK) This part replaces 64596-MT4-000ZA.

64596-MT4-000ZB

Unavailable

COVER, L. COWL (UPPER) *NH280* (ARMOR BLACK)

64596-MT4-000ZB

Unavailable

MIRROR, R. BACK *NH1* (BLACK)

88110-MV9-003ZA

Unavailable

MIRROR, R. BACK *NH1* (BLACK) This part replaces 88110-MV9-003ZB.

88110-MV9-003ZA

Unavailable

RUBBER, MIRROR MOUNTING

88111-MT4-000

Unavailable

MIRROR, L. BACK *NH1* (BLACK)

88120-MV9-003ZA

Unavailable

MIRROR, L. BACK *NH1* (BLACK) This part replaces 88120-MV9-003ZB.

88120-MV9-003ZA

Unavailable

SCREW, SCREEN SETTING

90101-MT4-000

$1.79

SCREW, PAN (6X10)

90105-MM4-000

$2.21

SCREW, FAIRING SETTING

90112-ML7-920

Unavailable

BOLT, COWL SETTING

90112-MT4-000

$3.31

SCREW ASSY., FAIRING SETTING

90113-ML7-920

Unavailable

SCREW, PAN (6X14)

90118-MR1-000

$3.10

RUBBER, WINDSCREEN

90501-MT4-700

Unavailable

BAND, WIRE HARNESS

90650-MA6-720

$4.15

CLIP, BODY COVER

90683-GR1-003

$2.92

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

SCREW, PAN (6X16)

93500-06016-0A

$1.49

SCREW, PAN (6X16) This part replaces 93500-06016-1A.

93500-06016-0A

$1.49

SCREW-WASHER (4X12)

93891-04012-07

$1.49

SCREW-WASHER (5X10)

93891-05010-07

$1.49

SCREW-WASHER (5X10)

93894-05010-08

$1.49

SCREW-WASHER (5X12)

93894-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93894-05012-10.

93894-05012-00

$1.49

SCREW-WASHER (5X12)

93894-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93894-05012-10.

93894-05012-00

$1.49

SCREW-WASHER (5X18)

93894-05018-08

$1.49

SCREW, TAPPING (4X10)

93903-34280

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (10X22)

95701-10022-08

$2.30

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

BOLT, FLANGE (8X30)

95801-08030-08

$2.28
