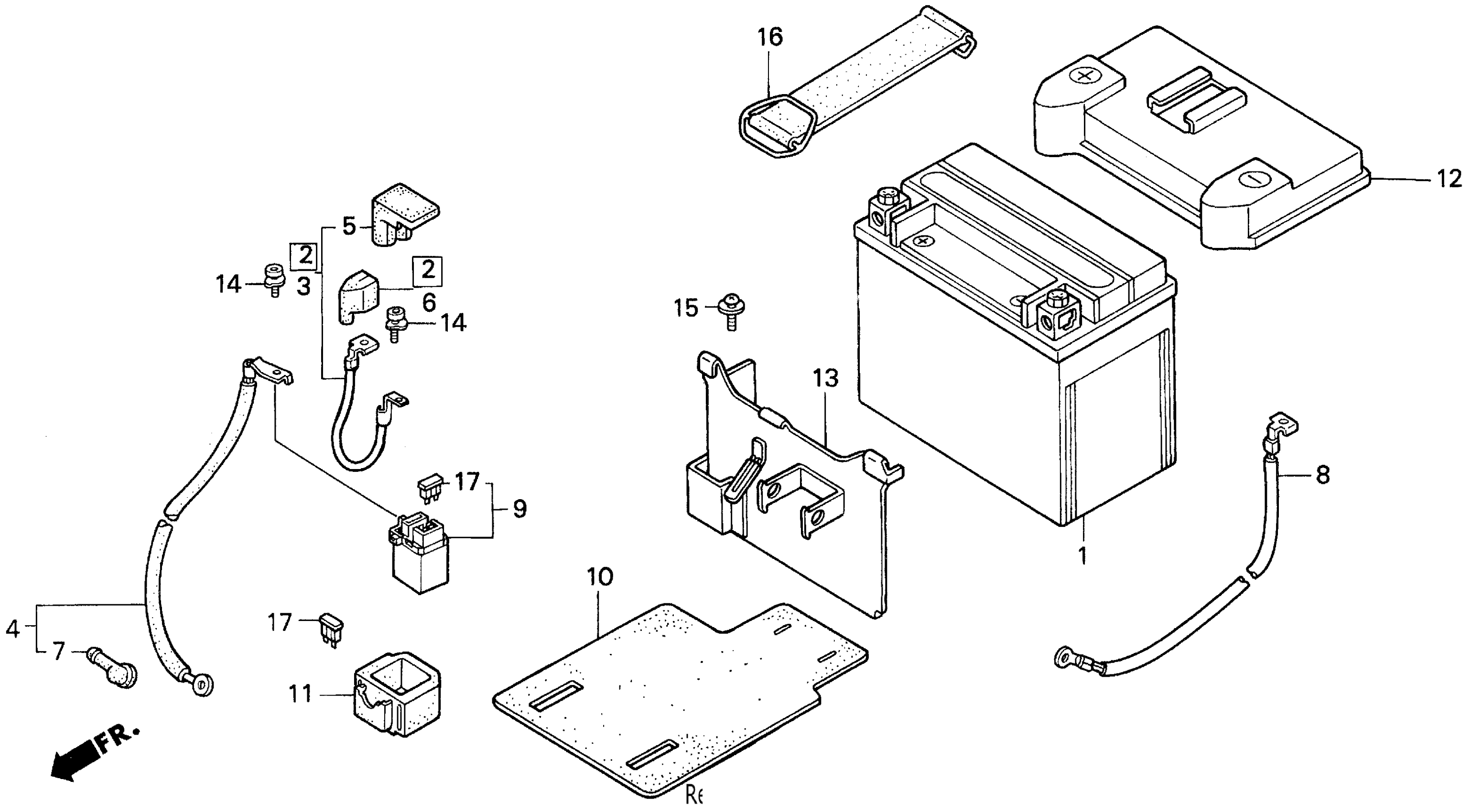

Honda VFR750FA (92) VFR, JPN, VIN# JH2RC360-NM200008 TO JH2RC360-NM200817 BATTERY 90-93 Diagram

#

Description
Price

1

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

3

CABLE, STARTER BATTERY

32401-MT4-880

Unavailable

4

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-MT4-000

Unavailable

5

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$6.39

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32419-ML0-000.

32411-230-000

$6.40

8

CABLE, BATTERY GROUND

32601-MT4-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

10

RUBBER, STARTER MAGNETIC SWITCH HEAT

35853-MT4-730

Unavailable

11

RUBBER, SHOCK ABSORBER

35856-MR5-000

$9.74

12

COVER, BATTERY

50327-MT4-000

Unavailable

13

PLATE, FR. BATTERY

50328-MT4-730

Unavailable

14

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

15

SCREW-WASHER (5X12)

93891-05012-07

$1.49

16

BAND C, BATTERY

95012-14001

Unavailable

17

FUSE, BLADE (30A)

98200-33000

$1.49
