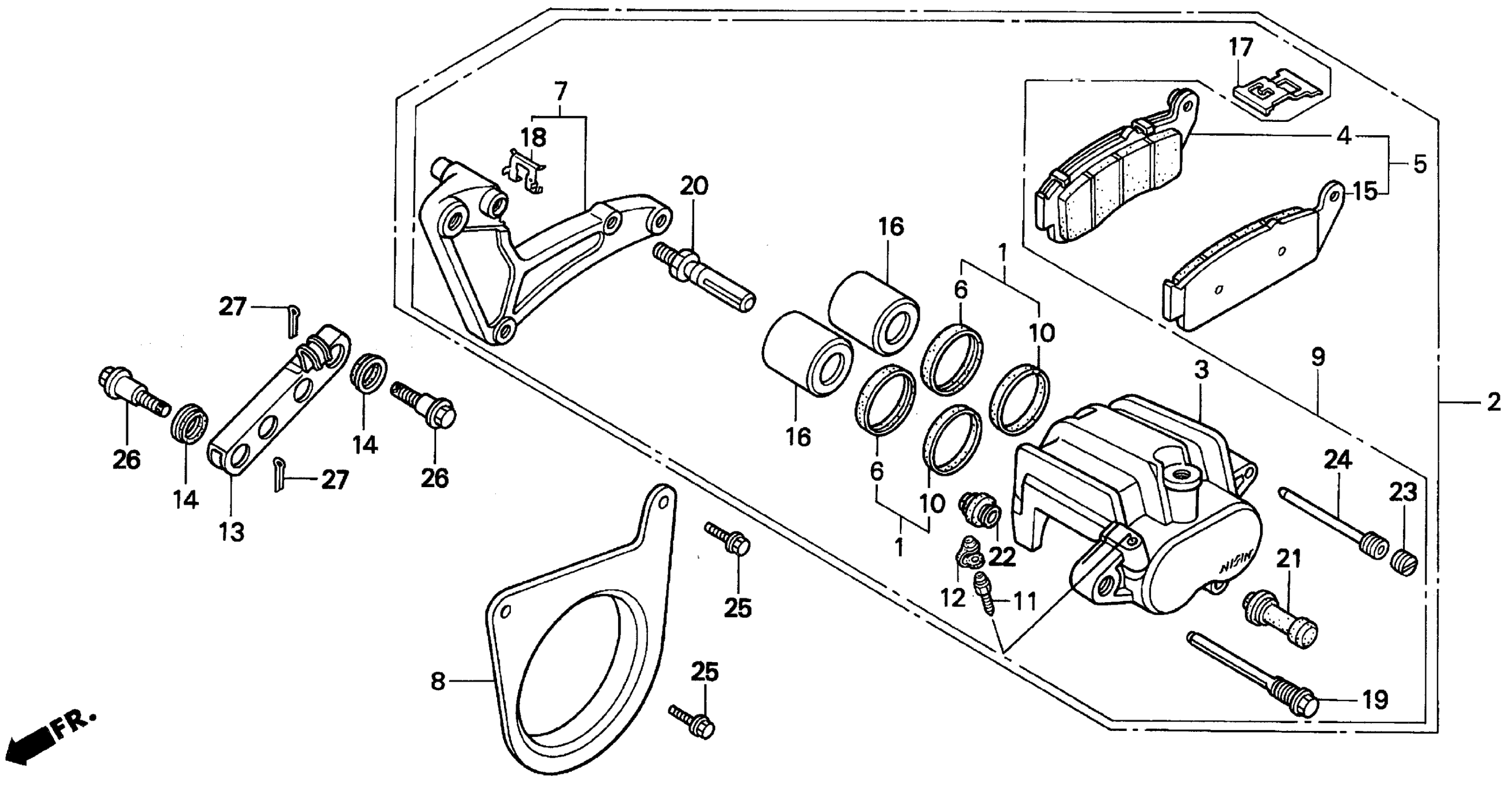

Honda VFR750FA (91) VFR, JPN, VIN# JH2RC360-MM100001 TO JH2RC360-MM101581 REAR BRAKE CALIPER Diagram

PAD SET, RR. BRAKE This part replaces 431A0-MT4-670.

43105-MY7-405

Unavailable

PAD SET, RR. BRAKE

43105-MY7-405

Unavailable

CALIPER ASSY., RR. (NA USE ALT:43150-MT4-305)

43100-MT4-007

Unavailable

BODY, RR. CALIPER

43101-MT4-006

Unavailable

PAD A, RR. (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43105-MT4-007

Unavailable

DUST SEAL

43109-MA3-006

$5.73

BRACKET, RR.

43110-MT4-006

Unavailable

STAY, RR. CALIPER

43111-MT4-000

Unavailable

SEAL, PISTON

43209-MA3-006

$7.04

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

LINK, TORQUE

43431-MN8-000

Unavailable

WASHER, TORQUE LINK

43434-MA3-640

Unavailable

PAD B, B (NISSIN) (NOT AVAILABLE)

45106-MN8-671

Unavailable

PISTON

45107-ML4-006

$37.87

SPRING, PAD (NISSIN) This part replaces 45108-ML7-921.

45108-ML7-922

$6.19

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MT4-006

$5.80

BOLT, PIN

45131-MA3-006

$17.59

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, FLANGE (8X18)

90106-MR8-000

Unavailable

BOLT, TORQUE LINK

90124-ML7-000

Unavailable

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49
