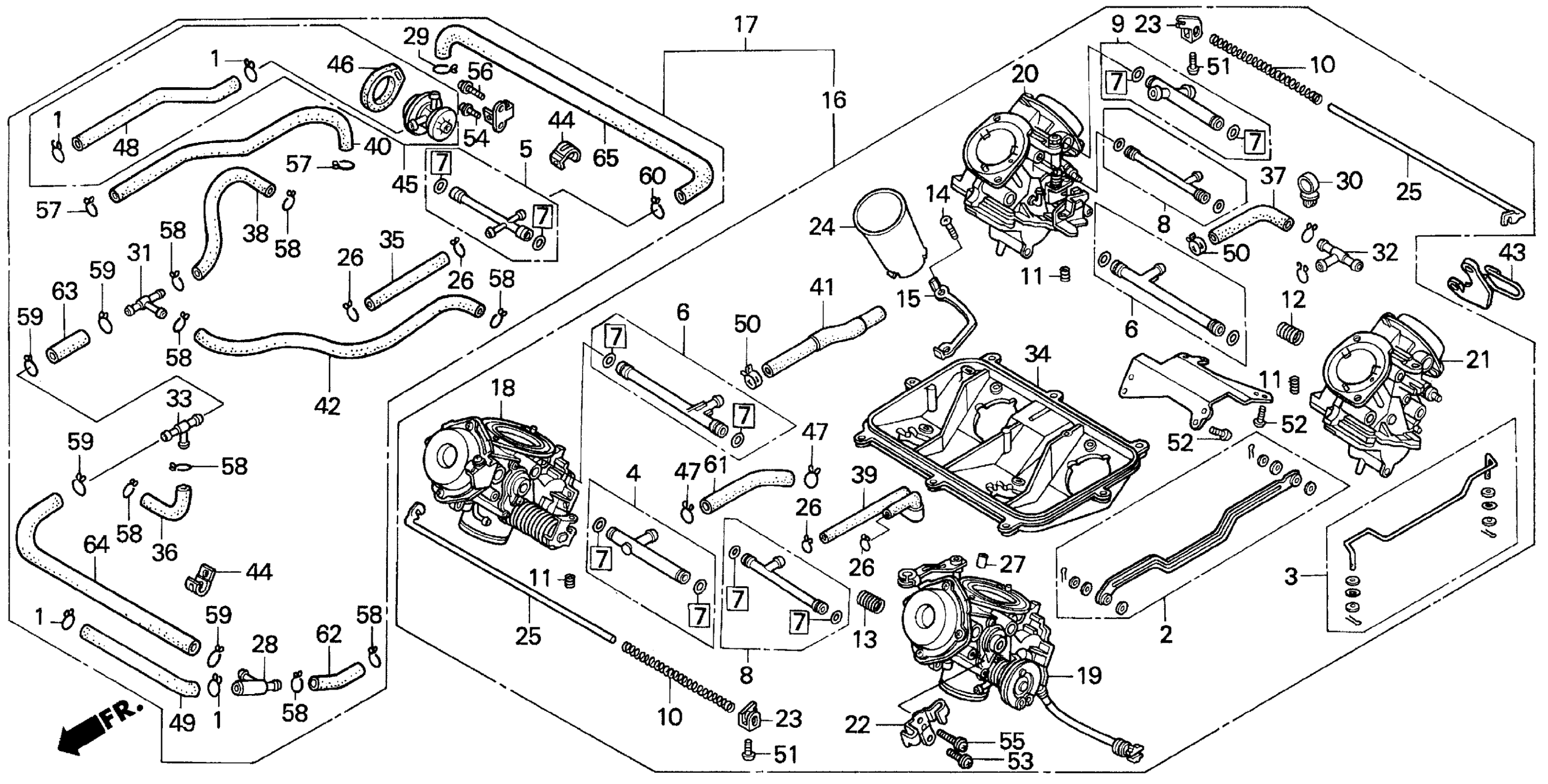

Honda VFR750FA (91) VFR, JPN, VIN# JH2RC360-MM100001 TO JH2RC360-MM101581 CARBURETOR ASSY. 90-93 Diagram

#

Description
Price

2

LEVER SET, LINK

16017-MT4-000

Unavailable

3

ROD SET, STARTER LINK

16019-MR7-004

Unavailable

4

JOINT SET, FUEL (E)

16026-MR7-004

Unavailable

6

JOINT SET, FUEL

16027-MT4-000

Unavailable

7

GASKET B SET

16040-MR7-004

Unavailable

8

JOINT SET, FUEL

16047-KE7-003

Unavailable

9

JOINT SET, FUEL (D)

16047-MR7-004

Unavailable

10

SPRING, COMPRESSOR COIL

16051-MT4-000

Unavailable

11

SPRING

16052-KG4-003

$5.81

11

SPRING

16052-MB0-671

$6.23

12

SPRING

16053-MB0-671

$10.30

13

SPRING

16053-MG9-004

Unavailable

14

SCREW, PAN

16080-MB0-671

$2.16

15

WASHER, TONGUED

16090-ML7-004

$3.25

16

CARBURETOR ASSY. (VDJBA A)

16100-MT4-309

Unavailable

18

CARBURETOR ASSY., R. FR.

16101-MT4-670

Unavailable

19

CARBURETOR ASSY., L. FR.

16102-MT4-670

Unavailable

20

CARBURETOR ASSY., R. RR.

16103-MT4-670

Unavailable

21

CARBURETOR ASSY., L. RR.

16104-MT4-670

Unavailable

22

STAY, WIRE

16119-ML0-722

Unavailable

23

LEVER, STARTER

16120-MR7-004

Unavailable

24

FUNNEL, AIR

16141-MT4-000

Unavailable

25

SHAFT, STARTER LINK

16145-MT4-000

Unavailable

26

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.73

27

PIN, KNOCK

16178-MB0-671

$4.98

30

BINDER

16179-MT4-000

Unavailable

32

T-JOINT

16180-ML7-004

Unavailable

34

BASE, AIR CLEANER

16188-MT4-010

Unavailable

37

TUBE

16143-KV0-405

$7.11

37

TUBE This part replaces 16197-MT4-000.

16143-KV0-405

$7.11

39

TUBE

16198-MT4-000

Unavailable

41

TUBE

16199-MT4-000

Unavailable

43

CLAMP (A)

16221-MT4-000

Unavailable

47

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

50

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

51

SCREW, PAN (4X8)

93500-04008-0A

$1.49

51

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

52

SCREW, PAN (5X12)

93500-05012-0G

$1.49

53

SCREW-WASHER (4X16)

93892-04016-00

$1.49

55

SCREW-WASHER (5X12)

93892-05012-00

$1.49

61

BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)

95005-12001-10M

$61.17
