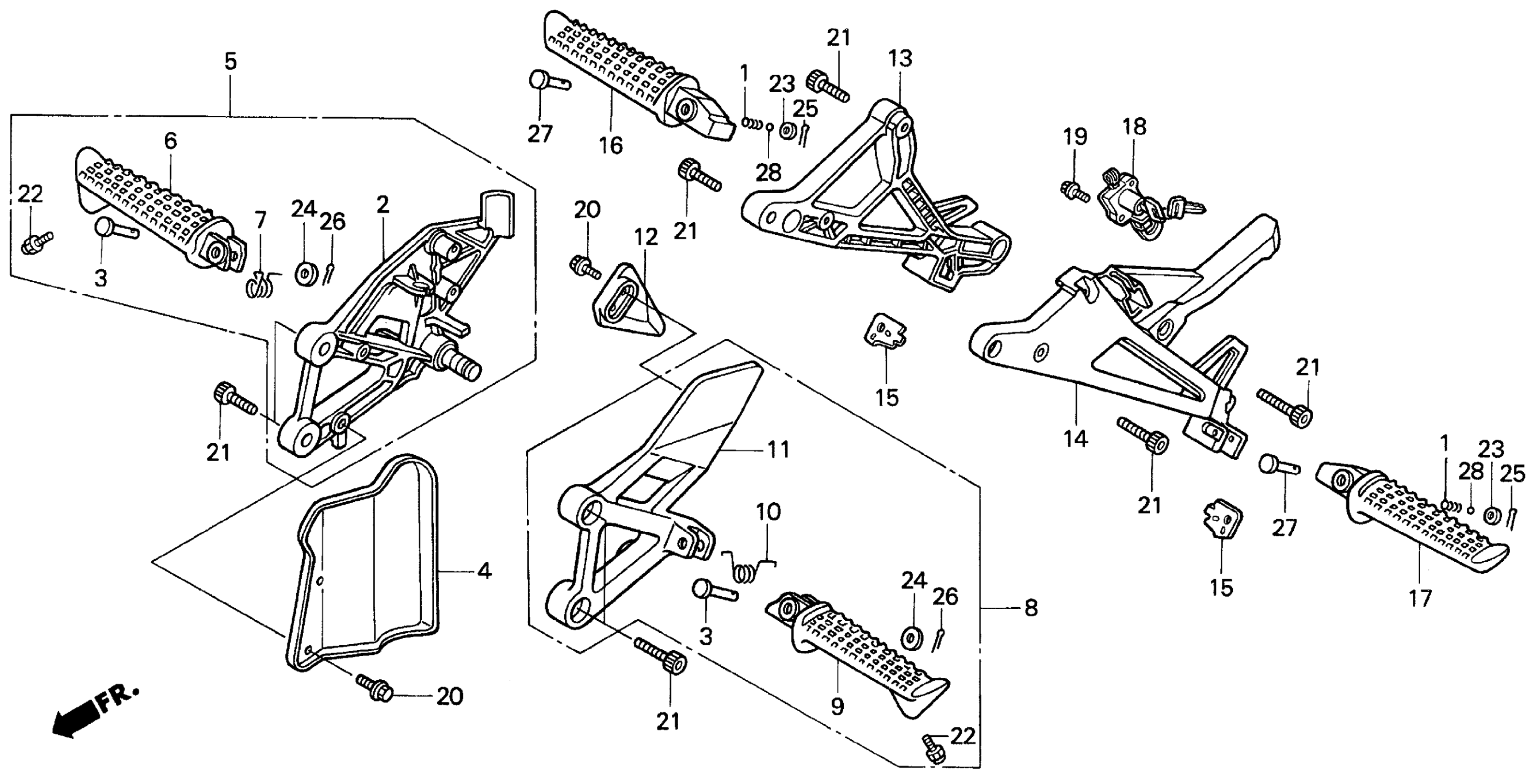

Honda VFR750FA (90) VFR, JPN, VIN# JH2RC360-LM000009 TO JH2RC360-LM000788 STEP 90-93 Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. MAIN STEP

50600-MT4-000

Unavailable

3

PIN, STEP BAR JOINT

50603-033-010

$3.30

4

GUARD, STEP HEAT

50606-MT4-000

$33.97

5

BAR ASSY., R. MAIN STEP (NOT AVAILABLE)

50630-MT4-000

Unavailable

6

ARM, R. MAIN STEP

50631-KT7-760

Unavailable

7

SPRING, R. STEP RETURN

50635-ML7-700

Unavailable

8

BAR ASSY., L. MAIN STEP | Use up to Frame SN LM000787 This part replaces 50640-MT4-000.

50640-MT4-700

Unavailable

8

BAR ASSY., L. MAIN STEP

50640-MT4-700

Unavailable

9

ARM, L. MAIN STEP

50641-KT7-760

Unavailable

10

SPRING, L. STEP RETURN

50645-KAF-000

Unavailable

10

SPRING, L. STEP RETURN This part replaces 50645-ML7-700.

50645-KAF-000

Unavailable

11

HOLDER, L. MAIN STEP | Use up to Frame SN LM000787 This part replaces 50700-MT4-000.

50700-MT4-700

Unavailable

11

HOLDER, L. MAIN STEP

50700-MT4-700

Unavailable

12

WEIGHT, L. STEP

50703-MT4-000

Unavailable

13

HOLDER, R. PILLION STEP

50711-MT4-000

Unavailable

14

HOLDER, L. PILLION STEP

50712-MT4-000

Unavailable

15

PLATE, PILLION STEP CLICK

50718-KT7-761

$4.01

16

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$46.30

16

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$46.30

17

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$46.30

17

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$46.30

18

LOCK ASSY., SEAT

77110-MT4-007

Unavailable

19

BOLT, BREAK OFF (6MM)

90008-MB6-630

Unavailable

20

BOLT, FLANGE (6X12)

90029-MT4-000

$2.70

21

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

22

BOLT, CAP (8X12)

92501-08012-0A

$3.05

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94102-08800

$1.49

25

PIN, SPLIT (1.6X12)

94201-16120

$1.49

26

PIN, SPLIT (2.0X15)

94201-20150

$1.49

27

PIN C, PILLION FOOTPEG

95015-83000

$2.41

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
