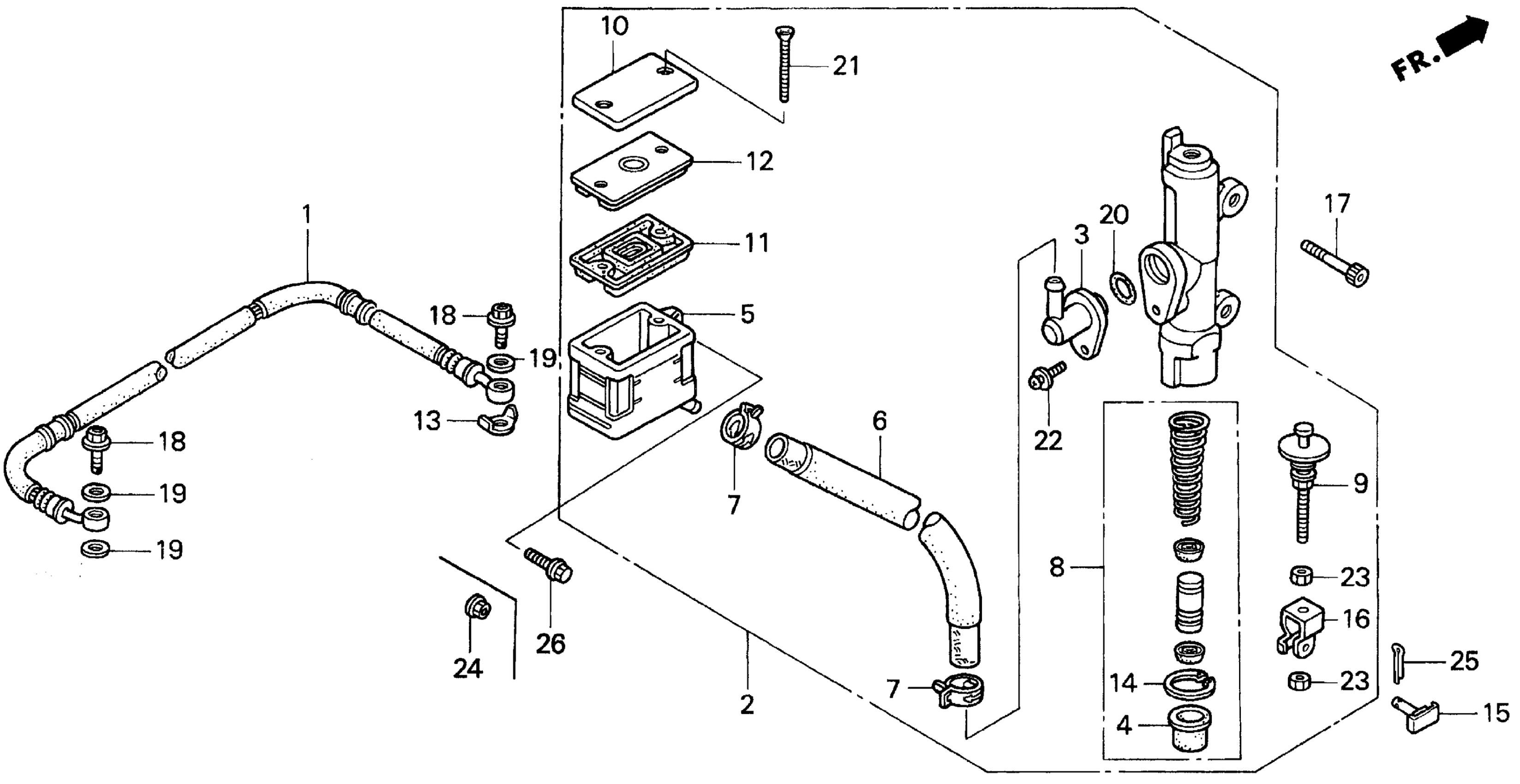

Honda VFR750FA (90) VFR, JPN, VIN# JH2RC360-LM000009 TO JH2RC360-LM000788 RR. BRAKE MASTER CYL. 90-93 Diagram

HOSE, RR. BRAKE

43310-MT4-003

Unavailable

MASTER CYLINDER ASSY., RR.

43500-MT4-006

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

CUP, OIL

43511-KT8-006

$35.77

HOSE, MASTER CYLINDER

43512-MT4-006

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

ROD, PUSH

43530-KV3-701

$19.84

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

STOPPER, OIL BOLT

45535-MJ4-000

Unavailable

CIRCLIP

46182-500-013

$4.90

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.24

PIN D, JOINT

95015-54000

$4.24

JOINT, BRAKE ROD This part replaces 46504-KV6-701.

46504-KV6-702

$7.84

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, SOCKET (6X30)

90118-MT4-000

Unavailable

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49
