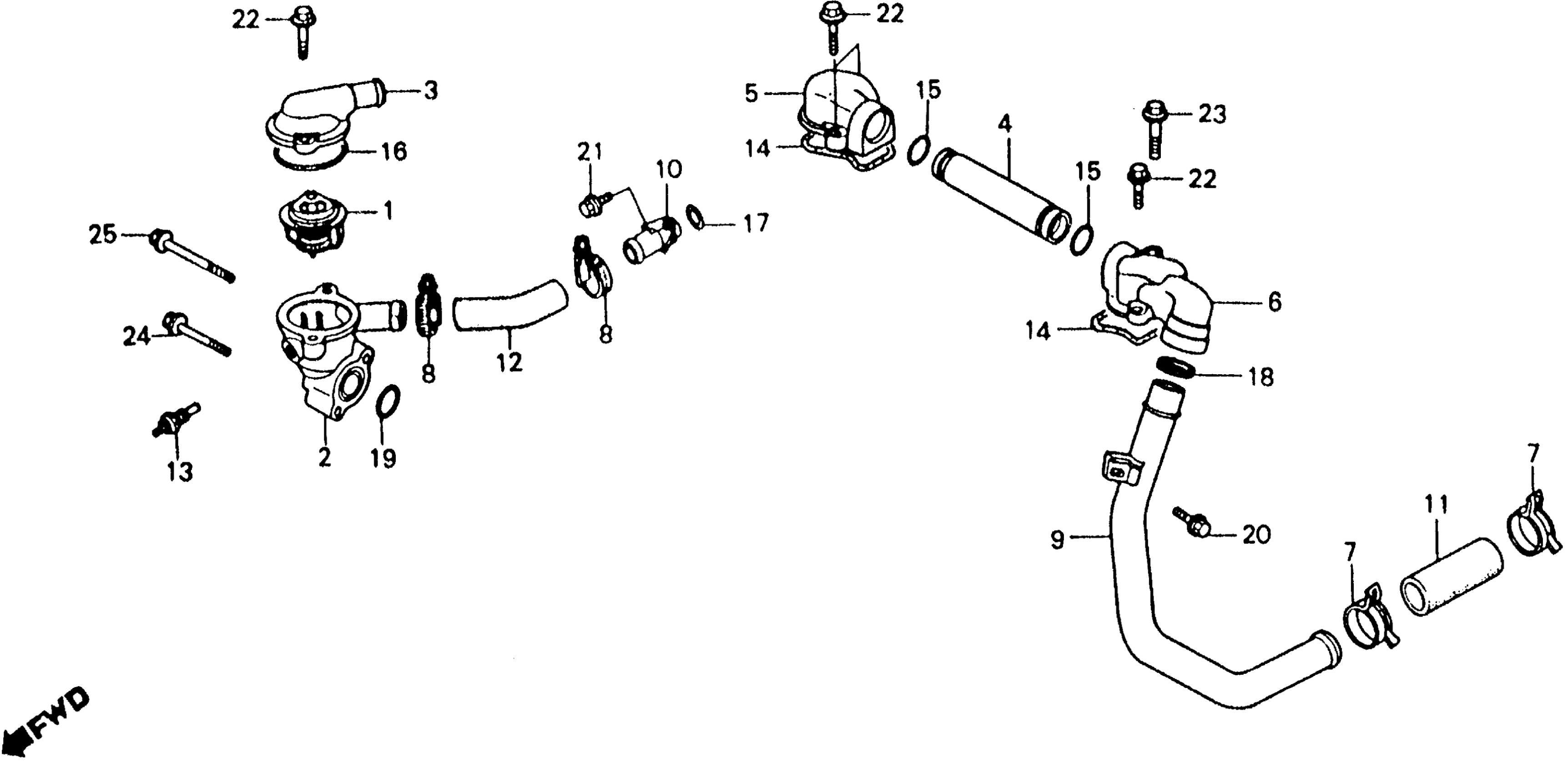

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT ASSY.

19300-ML7-003

$49.22

2

CASE, THERMOSTAT

19311-ML7-000

Unavailable

3

COVER, THERMOSTAT

19315-ML7-000

Unavailable

4

PIPE, CONNECTING

19507-MB0-000

Unavailable

5

CAP A, CONNECTING

19508-MB0-000

Unavailable

6

CAP B, CONNECTING PIPE

19509-MB0-000

Unavailable

7

CLAMP, WATER HOSE

19503-MB1-870

$12.56

7

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

8

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

9

PIPE A, WATER

19521-ML7-000

Unavailable

10

JOINT, WATER

19523-ML7-000

Unavailable

11

HOSE A, WATER

19525-ML7-000

Unavailable

12

HOSE B, WATER

19526-ML7-000

Unavailable

13

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

14

GASKET, CONNECTING CAP

91301-MB0-000

$4.10

15

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

16

O-RING (47.5X2)

91311-KE8-000

$2.39

17

O-RING (17X3) (ARAI)

91312-KE8-003

$2.84

18

SEAL, WATER PIPE

91315-MB0-013

$2.70

19

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

19

O-RING (21.2X2.4) (ARAI) This part replaces 91331-PC9-004.

91331-PC9-003

$3.13

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

23

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

23

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

24

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

24

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

25

BOLT, FLANGE (6X55) This part replaces 96000-06055-07.

96001-06055-07

$2.23

25

BOLT, FLANGE (6X55)

96001-06055-07

$2.23
