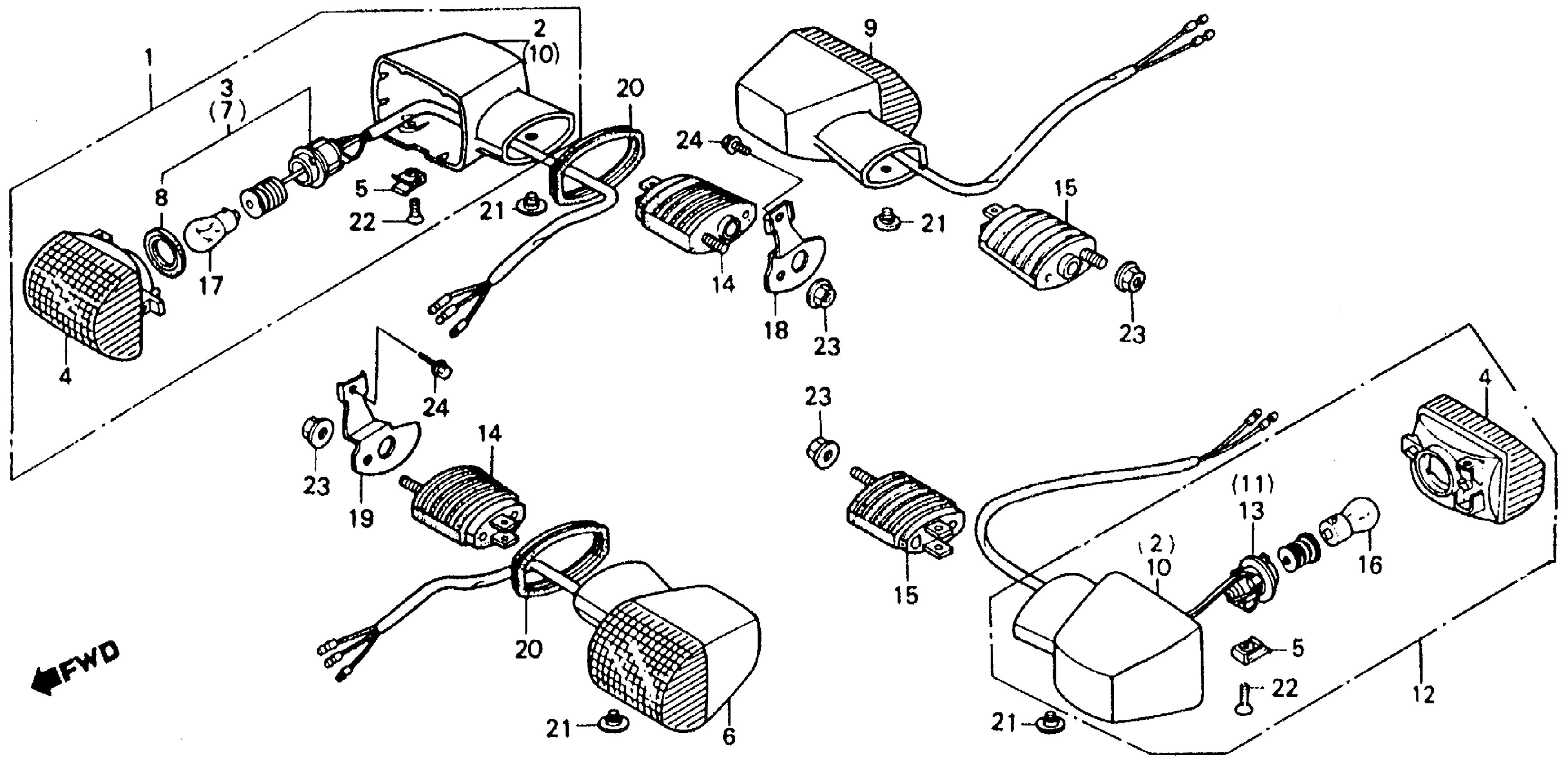

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. *NH1* (BLACK)

33400-MB6-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. *NH1* (BLACK) This part replaces 33400-ML7-671.

33400-MB6-406

Unavailable

2

BASE, R. TURN SIGNAL *NH1* (BLACK)

33401-MB6-003

Unavailable

3

SOCKET, R. FR. TURN SIGNAL

33405-ML7-671

Unavailable

4

LENS, TURN SIGNAL

33406-MB2-671

Unavailable

5

NUT, SPECIAL

33407-MB2-003

$3.81

6

TURN SIGNAL ASSY., R. FR.

33400-KM9-405

Unavailable

6

TURN SIGNAL ASSY., R. FR. This part replaces 33450-ML7-671.

33400-KM9-405

Unavailable

7

SOCKET, L. FR. TURN SIGNAL

33455-ML7-671

Unavailable

8

GASKET, SEAL

33518-MB2-003

$3.51

9

TURN SIGNAL ASSY., R. RR.

33600-MF2-405

Unavailable

9

TURN SIGNAL ASSY., R. RR. This part replaces 33600-ML7-671.

33600-MF2-405

Unavailable

10

BASE, L. TURN SIGNAL *NH1* (BLACK)

33601-MB6-003

Unavailable

11

SOCKET, R. RR. TURN SIGNAL This part replaces 33605-ML4-611.

33605-MS9-600

Unavailable

11

SOCKET, R. RR. TURN SIGNAL

33605-MS9-600

Unavailable

12

TURN SIGNAL ASSY. *NH1* (BLACK)

33600-MJ0-405

Unavailable

12

TURN SIGNAL ASSY. *NH1* (BLACK) This part replaces 33650-ML7-671.

33600-MJ0-405

Unavailable

13

SOCKET, L. RR. TURN SIGNAL

33655-ML7-671

Unavailable

14

STAY, TURN SIGNAL

33691-MB2-003

Unavailable

15

STAY, FR. TURN SIGNAL

33691-MJ0-003

$32.16

16

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

17

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

18

PLATE, R. FR. TURN SIGNAL SETTING (NOT AVAILABLE)

64134-ML7-000

Unavailable

19

PLATE, L. FR. TURN SIGNAL SETTING

64135-ML7-000

Unavailable

20

RUBBER, FR. TURN SIGNAL

64136-ML7-600

$11.32

21

SCREW, SPECIAL (6X8)

90380-MB2-000

$3.38

22

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93700-04012-1G.

93891-04012-07

$1.49

22

SCREW-WASHER (4X12)

93891-04012-07

$1.49

23

NUT, FLANGE (6MM)

94050-06080

$1.49

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
