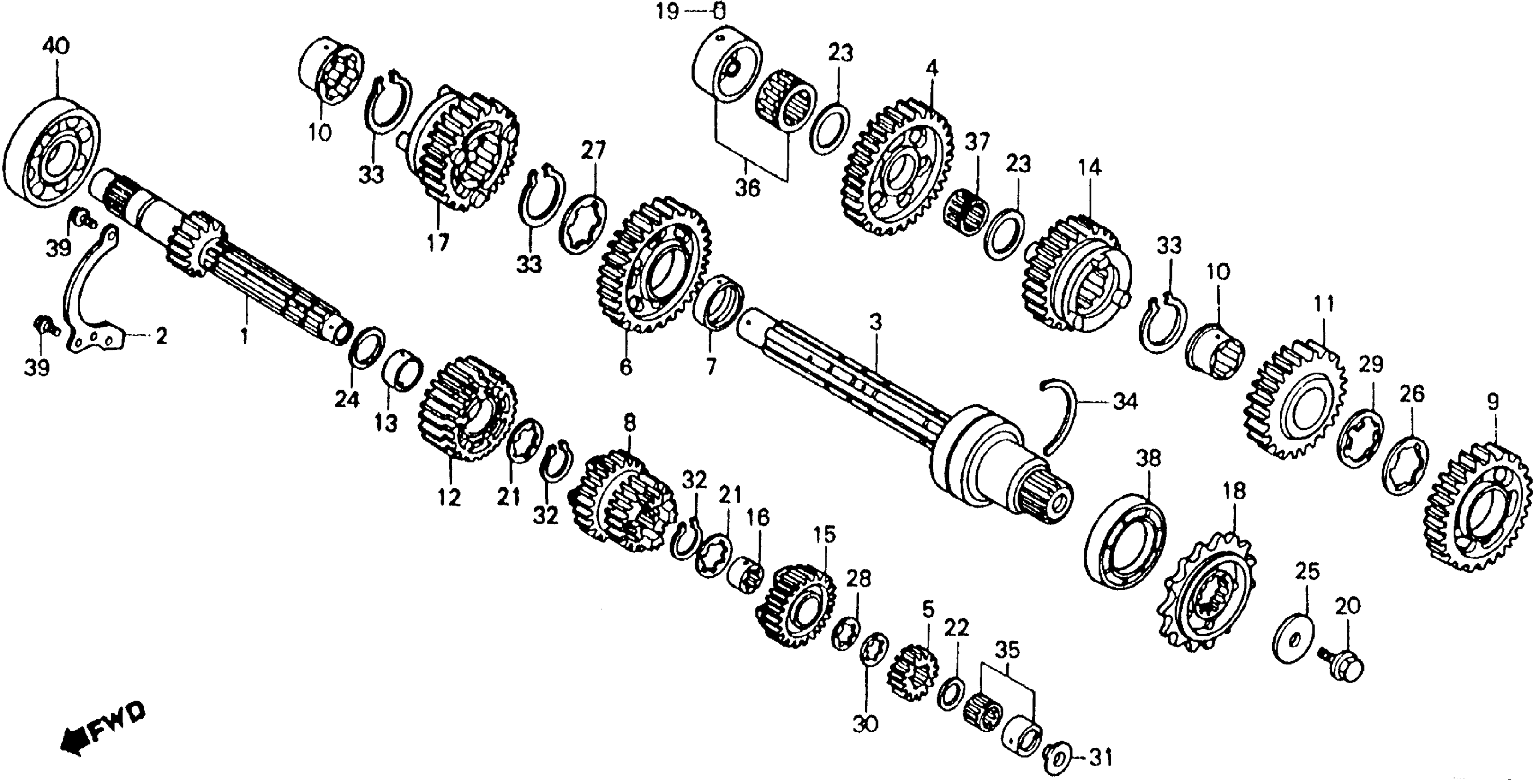

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23211-ML7-000

Unavailable

2

PLATE, BEARING SETTING

23212-ML7-000

$12.21

3

COUNTERSHAFT This part replaces 23220-ML7-000.

23220-ML7-690

Unavailable

3

COUNTERSHAFT

23220-ML7-690

Unavailable

4

GEAR, COUNTERSHAFT LOW (37T)

23421-ML7-000

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23431-ML7-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-ML7-000

Unavailable

7

COLLAR (28MM)

23442-ML7-000

$27.93

8

GEAR, MAINSHAFT THIRD & FOURTH (19T/21T)

23451-ML7-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (31T)

23461-ML7-000

Unavailable

10

COLLAR (28X15.5)

23462-MB2-010

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (28T)

23481-MBG-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (28T) This part replaces 23481-ML7-000.

23481-MBG-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (28T) This part replaces 23481-ML7-010.

23481-MBG-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (26T)

23491-ML7-000

Unavailable

13

COLLAR (25X12)

23495-MB0-000

$26.23

14

GEAR, COUNTERSHAFT FIFTH (30T) This part replaces 23501-ML7-010.

23501-ML7-020

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (30T)

23501-ML7-020

Unavailable

15

GEAR, MAINSHAFT SIXTH (28T)

23511-ML7-000

Unavailable

16

COLLAR, SPLINE (25X16)

23512-ML7-000

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (29T)

23521-ML7-010

Unavailable

18

SPROCKET, DRIVE (16T) This part replaces 23800-ML7-000.

23801-ML7-P00

Unavailable

18

SPROCKET, DRIVE (16T)

23801-ML7-P00

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (25MM) This part replaces 90451-ML7-000.

90451-413-000

$3.26

21

WASHER, THRUST (25MM)

90451-413-000

$3.26

22

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

23

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

23

WASHER A, THRUST (22MM)

90456-ML7-000

$5.62

23

WASHER C, THRUST (22MM)

90457-ML7-000

$5.62

24

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

25

WASHER (10.2MM)

90459-438-000

$5.83

26

WASHER, THRUST (29MM)

90461-MB2-000

$6.46

27

WASHER, SPLINE (28MM)

90461-ML7-000

Unavailable

28

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

29

WASHER, LOCK (28MM)

90462-ML7-000

Unavailable

30

WASHER, LOCK (25MM)

90462-323-000

$3.77

31

PLATE, ORIFICE This part replaces 90558-MB0-000.

90558-MJ0-000

$6.11

31

PLATE, ORIFICE

90558-MJ0-000

$6.11

32

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

33

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

34

SET-RING (62MM)

90602-ML7-000

$9.05

35

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

36

BEARING, NEEDLE (22MM)

91023-ML7-004

Unavailable

37

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

38

OIL SEAL (40X62X8.4)

91207-MAL-601

$13.51

38

OIL SEAL (40X62X8.4) This part replaces 91207-ML7-003.

91207-MAL-601

$13.51

39

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

40

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
