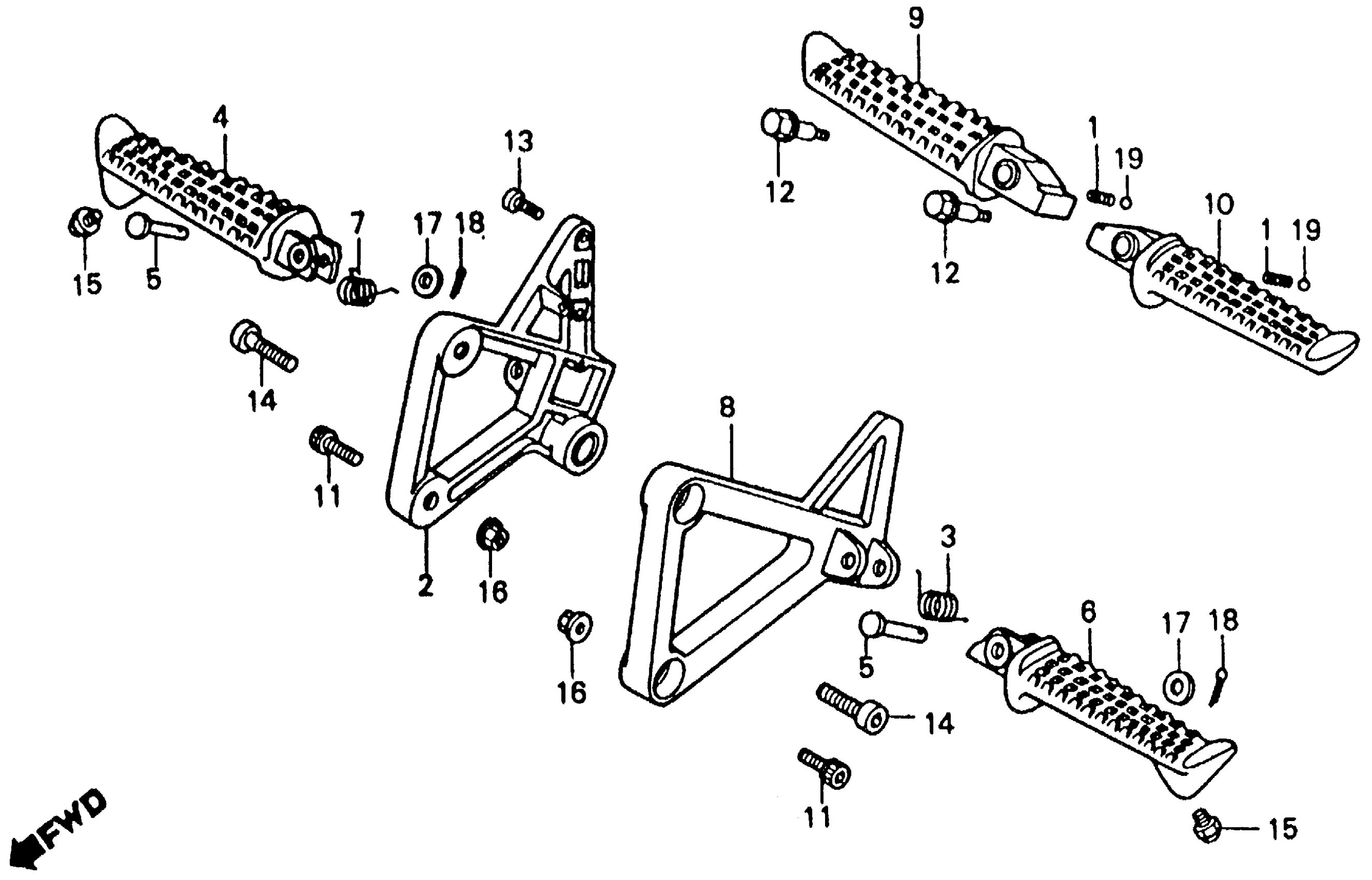

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. MAIN STEP This part replaces 50600-ML7-000.

50600-ML7-700

Unavailable

2

HOLDER, R. MAIN STEP

50600-ML7-700

Unavailable

3

SPRING, R. STEP RETURN

50617-445-840

$5.44

4

ARM, R. MAIN FOOTPEG (NOT AVAILABLE)

50630-ML7-000

Unavailable

5

PIN, STEP BAR JOINT

50639-MB2-000

Unavailable

6

ARM, L. MAIN FOOTPEG

50640-ML7-000

Unavailable

7

SPRING, L. STEP RETURN

50644-445-840

$5.44

8

HOLDER, L. MAIN STEP This part replaces 50700-ML7-000.

50700-ML7-700

Unavailable

8

HOLDER, L. MAIN STEP

50700-ML7-700

Unavailable

9

ARM, R. PILLION FOOTPEG

50720-ML7-000

Unavailable

10

ARM, L. PILLION FOOTPEG

50730-ML7-000

Unavailable

11

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

12

BOLT, PILLION STEP

90115-ML7-000

Unavailable

13

BOLT, SOCKET (6X20)

90118-ML7-000

Unavailable

14

BOLT, SOCKET (10X30)

90152-ML7-000

Unavailable

15

BOLT, SPECIAL CAP (8X10)

90176-MJ4-670

Unavailable

16

NUT, FLANGE (8MM)

94050-08080

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

18

PIN, COTTER (1.6X25)

94201-16250

$1.49

19

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
