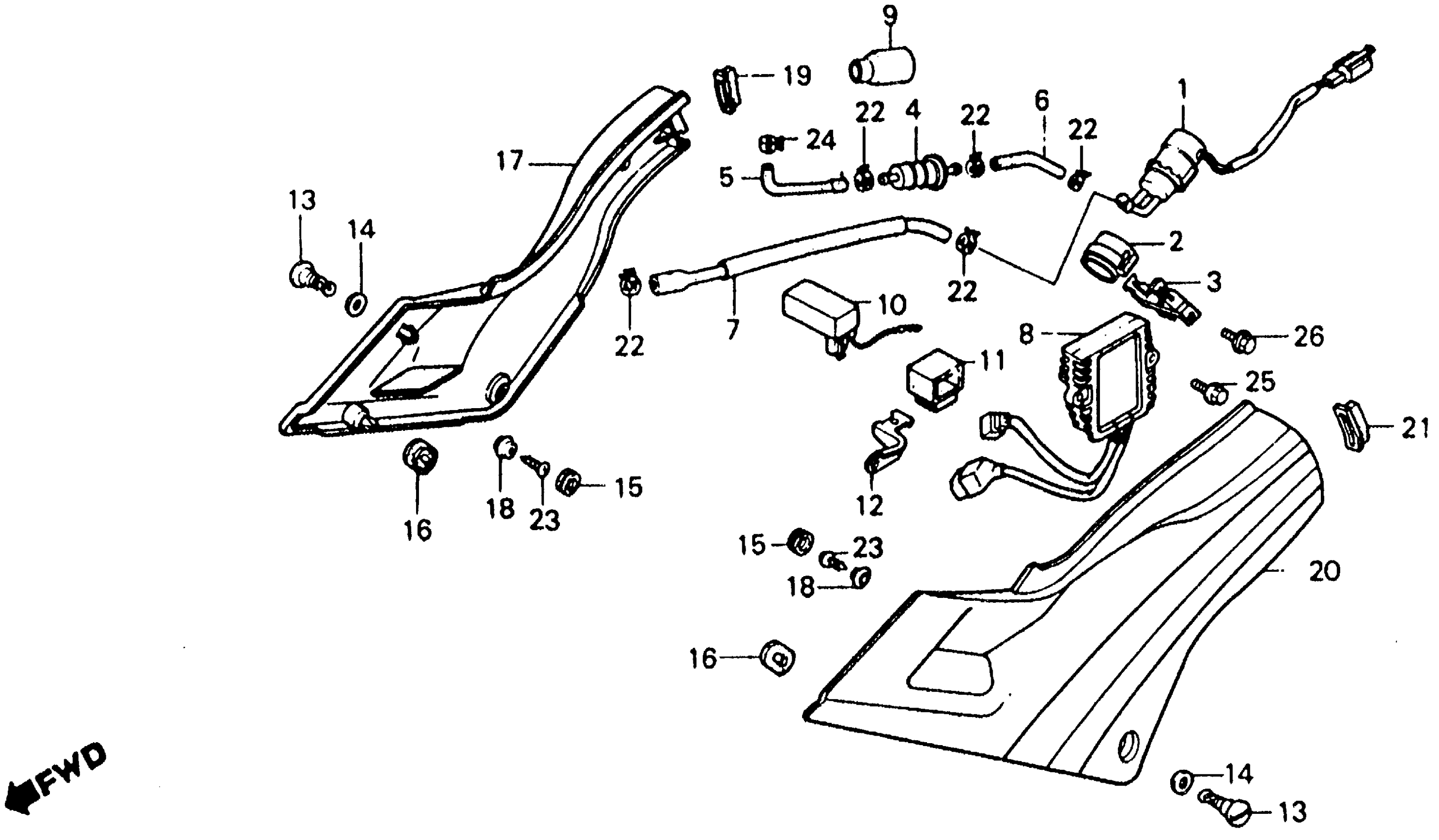

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 SIDE COVER + FUEL PUMP + RECTIFIER Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MITSUBISHI)

16710-ML7-005

Unavailable

2

RUBBER, FUEL PUMP SHOCK This part replaces 16711-ML7-000.

16711-KAF-305

$14.40

3

STAY, FUEL PUMP (NOT AVAILABLE)

16712-ML7-000

Unavailable

4

FILTER, FUEL

16900-MG8-003

$23.49

5

TUBE, FUEL STRAINER

16956-ML7-000

Unavailable

6

TUBE, FUEL PUMP

16957-ML7-000

Unavailable

7

TUBE, FUEL CARBURETOR This part replaces 16958-ML7-000.

16958-ML7-920

Unavailable

7

TUBE, FUEL CARBURETOR

16958-ML7-920

Unavailable

8

RECTIFIER ASSY.

31600-ML7-008

Unavailable

9

COVER, CONNECTOR

32108-473-000

Unavailable

10

RELAY, FUEL CUT (NOT AVAILABLE)

36100-ML7-013

Unavailable

11

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

12

STAY, FUEL CUT RELAY

36105-ML7-000

Unavailable

13

STUD (9X14)

64507-ML7-000

Unavailable

14

WASHER (9X17X1) This part replaces 64509-MK4-000.

90511-MCS-G50

$1.85

15

GROMMET

83551-MB9-000

$2.44

16

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

17

COVER SET, R. SIDE *NH138* (WL) (SHASTA WHITE) (NOT AVAILABLE)

836A0-ML7-670ZA

Unavailable

18

BOSS, SIDE COVER

83601-ML7-000

$4.56

19

RUBBER, R. SIDE COVER

83602-ML7-000

Unavailable

20

COVER SET, L. SIDE *NH138* (WL) (SHASTA WHITE)

837A0-ML7-670ZA

Unavailable

21

RUBBER, L. SIDE COVER

83702-ML7-000

Unavailable

22

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

23

SCREW, TAPPING (4X12)

93901-24310

$1.49

24

CLIP, TUBE (D12)

95002-41200-08

$2.34

25

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
