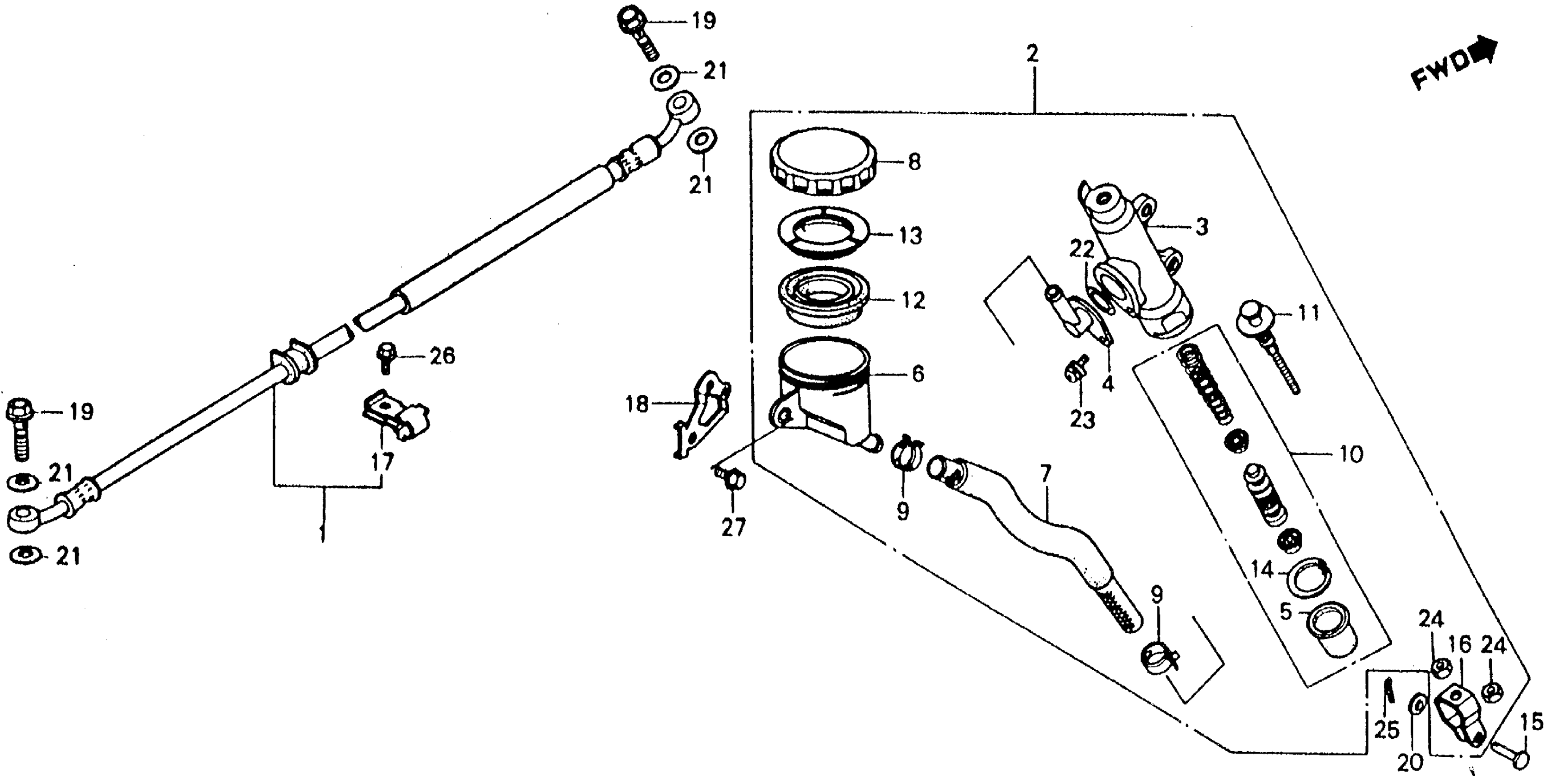

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 RR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE) This part replaces 43310-ML7-003.

43310-ML7-691

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-ML7-601

Unavailable

3

BODY, RR. MASTER CYLINDER

43501-MJ6-006

Unavailable

4

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

5

BOOT

43504-MB2-006

$10.04

6

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

7

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-ML7-000

Unavailable

8

CAP, OIL CUP

43513-MB4-672

Unavailable

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

10

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

11

ROD, PUSH

43530-MB2-006

$34.74

12

DIAPHRAGM

45520-300-000

$9.05

13

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

14

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

15

PIN, BRAKE ROD

46503-371-000

Unavailable

16

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

17

CLAMP, RR. BRAKE HOSE

52115-MB6-630

Unavailable

18

STAY, OIL CUP

84110-ML7-000

Unavailable

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

19

BOLT, OIL (10X22)

90145-KM3-751

$11.02

20

WASHER (7X12)

90501-310-000

$1.74

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

O-RING (14.8X2.4)

91212-422-006

$2.56

23

SCREW-WASHER (4X12)

93893-04012-08

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

PIN, COTTER (1.6X10)

94201-16100

$1.49

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
