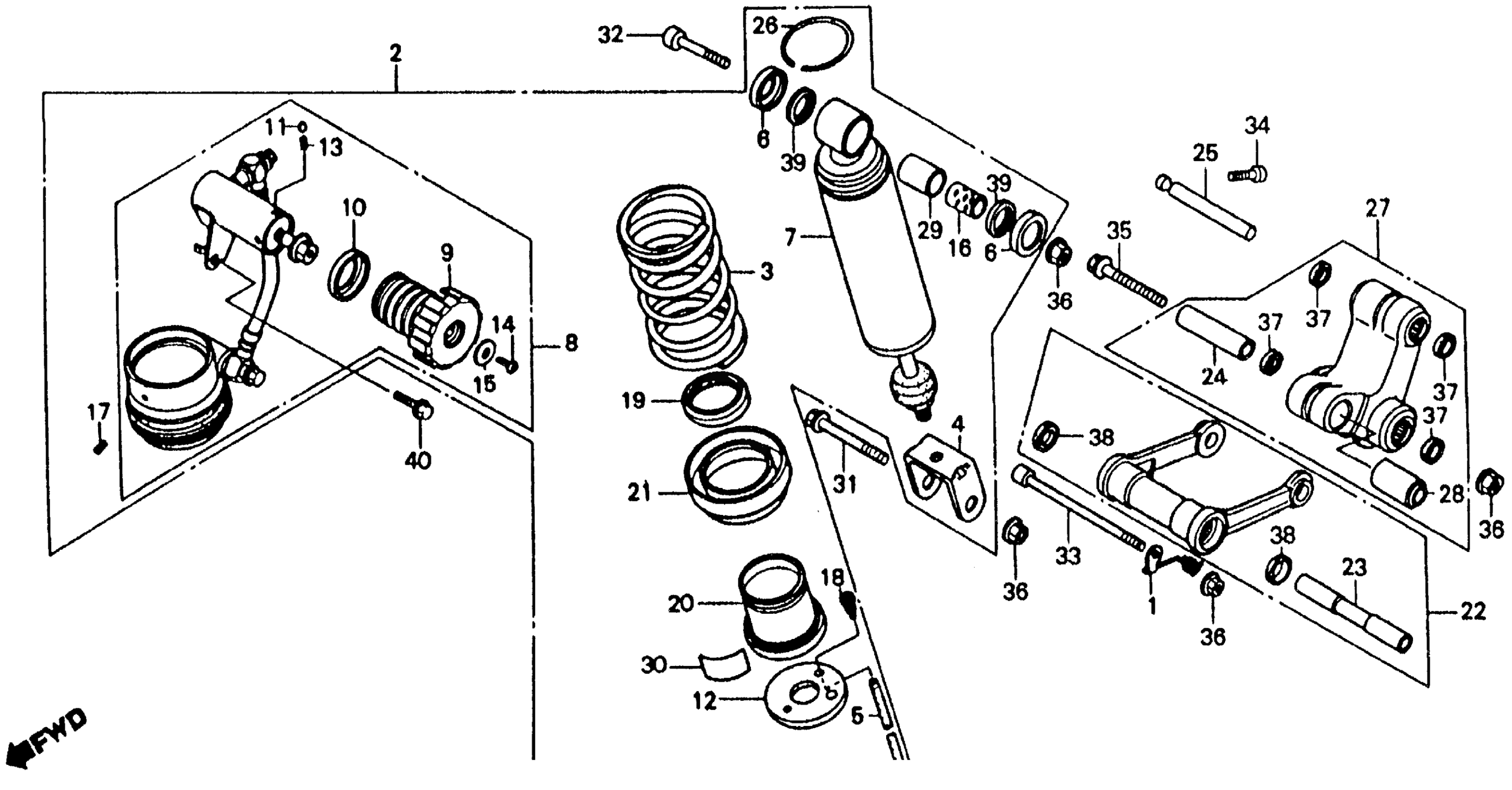

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

GUIDE, TUBE

50731-ML7-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. This part replaces 52400-ML7-003.

52400-ML7-013

Unavailable

2

SHOCK ABSORBER ASSY., RR.

52400-ML7-013

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-ML7-003

Unavailable

4

METAL (LOWER)

52403-ML7-003

Unavailable

5

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

6

CAP, DUST SEAL

52406-KB7-003

$6.48

7

DAMPER, RR. (NOT AVAILABLE)

52410-ML7-003

Unavailable

8

ADJUSTER, SPRING

52420-ML7-003

Unavailable

9

PLATE, LEVELING

52421-ML7-003

Unavailable

10

DUST SEAL

52422-KM4-003

Unavailable

11

BALL, LEVELING PLATE (NOT AVAILABLE)

52423-KM4-003

Unavailable

12

STOPPER, SPRING SEAT

52424-ML7-003

Unavailable

13

SPRING, COIL

52425-KM4-003

Unavailable

14

SCREW, CROSS-RECESSED HEAD MACHINE

52426-KM4-003

$2.39

15

WASHER, PLAIN

52427-KM4-003

Unavailable

16

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

17

SCREW, SOCKET SETTING

52455-ML7-003

Unavailable

18

JOINT, PIPE

52456-KB7-003

Unavailable

19

DUST SEAL

52457-ML7-003

$11.46

20

GUIDE, SPRING

52458-ML7-003

Unavailable

21

SEAT, SPRING

52459-ML7-003

Unavailable

22

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52460-ML7-000

Unavailable

23

COLLAR, CONNECTING ROD PIVOT

52462-ML7-000

Unavailable

24

COLLAR, CONNECTING ROD (LOWER)

52463-MB2-700

Unavailable

25

SHAFT, CUSHION ARM (UPPER)

52463-ML7-000

Unavailable

26

RING, STOPPER

52464-ML7-003

$4.72

27

ARM ASSY., SHOCK ABSORBER

52470-ML7-000

Unavailable

28

BUSH, SHOCK ABSORBER

52485-KE8-003

Unavailable

29

COLLAR, BUSH

52486-ML7-003

Unavailable

30

LABEL, RR. DAMPER CAUTION

87516-ML7-003

Unavailable

31

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

31

BOLT, FLANGE (10X62) This part replaces 90109-KE8-003.

90101-MBB-000

$4.04

32

BOLT, SOCKET (10X55)

90110-ML7-000

$5.43

33

BOLT, SOCKET (10X148)

90111-ML7-000

Unavailable

34

BOLT, SOCKET (8X32)

90116-KE7-000

Unavailable

35

BOLT, FLANGE (10X123)

90181-MB2-000

Unavailable

36

NUT, U (10MM)

90304-GE8-003

$3.67

37

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

38

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

38

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

39

DUST SEAL B

91351-KB7-003

$3.49

40

BOLT, FLANGE (8X20)

96300-08020-08

Unavailable
