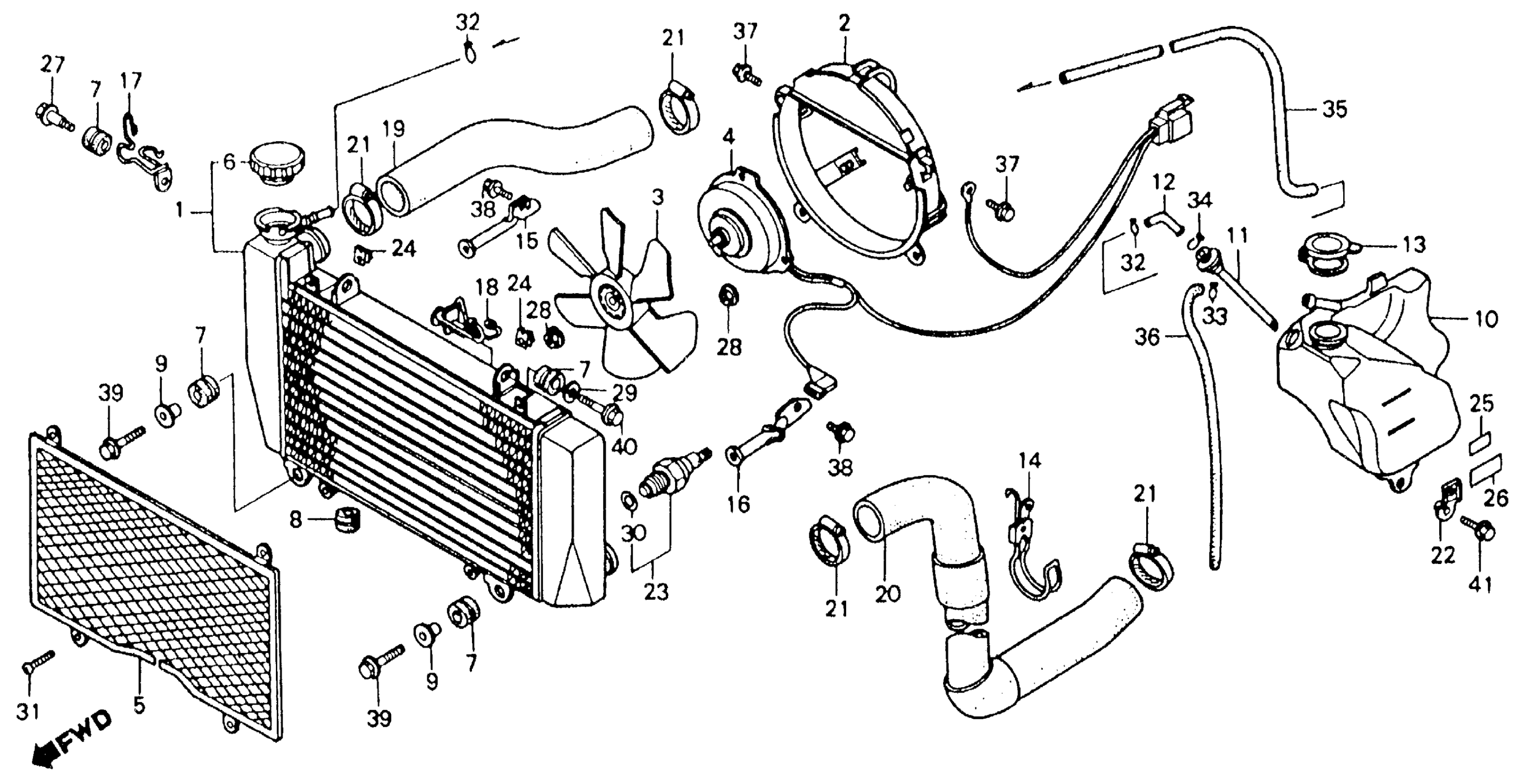

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 RADIATOR Diagram

#

Description
Price

1

RADIATOR This part replaces 19010-ML7-003.

19010-ML7-701

Unavailable

1

RADIATOR

19010-ML7-701

Unavailable

2

SHROUD

19015-ML7-003

Unavailable

3

FAN, COOLING

19020-MG8-003

$62.31

4

MOTOR, FAN (MATSUSHITA) This part replaces 19030-ML7-004.

19030-ML7-024

Unavailable

4

MOTOR, FAN (MATSUSHITA) This part replaces 19030-ML7-014.

19030-ML7-024

Unavailable

4

MOTOR, FAN (MATSUSHITA)

19030-ML7-024

Unavailable

5

GRILLE, RADIATOR

19032-ML7-000

Unavailable

6

CAP, RADIATOR This part replaces 19045-MB6-631.

19045-MY3-621

$40.44

6

CAP, RADIATOR

19045-MY3-621

$40.44

7

RUBBER, RADIATOR SETTING (B)

19052-HA2-000

Unavailable

8

GROMMET, RADIATOR

19053-MB2-000

$4.52

9

COLLAR, RADIATOR SETTING (B)

19056-HA2-000

$6.82

10

TANK, RESERVE

19101-ML7-000

Unavailable

11

TUBE, LEVEL (NOT AVAILABLE)

19102-MG9-000

Unavailable

12

JOINT, TUBE

19103-ML7-000

$6.22

13

CAP, RESERVE TANK

19104-MB0-700

$12.16

14

STAY, WATER HOSE

19120-ML7-000

Unavailable

15

STAY, R. RADIATOR (LOWER)

19130-ML7-000

Unavailable

16

STAY, L. RADIATOR (LOWER)

19131-ML7-000

Unavailable

17

CLAMP, R. OIL HOSE

19140-ML7-000

Unavailable

18

CLAMP, L. OIL HOSE

19145-ML7-000

Unavailable

19

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19500-ML7-000

Unavailable

20

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19501-ML7-000

Unavailable

21

CLAMP, WATER HOSE

19516-MB6-000

$14.41

22

CLAMP, WIRE HARNESS

19517-ML7-000

Unavailable

23

SWITCH ASSY., THERMO This part replaces 37760-ML7-003.

37760-MR1-003

$71.91

23

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

24

NUT, CLIP (4MM) This part replaces 64527-ML7-000.

64527-KY2-700

$4.46

25

LABEL, PRELOAD ADJUSTMENT

87503-KM4-300

Unavailable

26

LABEL, RESERVE TANK

87507-MB4-670

Unavailable

27

BOLT, SPECIAL (6X22)

90119-ML7-000

Unavailable

28

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

29

WASHER, PLAIN (6MM)

94103-06000

$1.49

30

O-RING (13.5X1.4)

91307-PH7-660

$2.83

30

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

31

SCREW, PAN (4X10)

93500-04010-0A

$1.49

32

CLIP, TUBE (B10) | Use from Frame SN GM000666

95002-02100

$1.90

32

CLIP, TUBE (C9) | Use up to Frame SN GM000665

95002-50000

$1.49

33

CLIP, TUBE (C11)

95002-70000

$1.56

34

CLIP, TUBE (C12)

95002-80000

$1.49

35

BULK HOSE, VACUUM (5X3000) (5X800) | Use up to Frame SN GM000665

95005-50003-30M

$20.85

35

BULK HOSE, VACUUM (5.5X3000) (5.3X800) | Use from Frame SN GM000666

95005-55003-20M

$34.09

36

BULK HOSE, VACUUM (7X3000) (7X600)

95005-70003-30M

$23.45

37

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

37

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

38

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

38

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

39

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

39

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

40

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

40

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

41

BOLT, FLANGE (6X14)

96300-06014-00

$1.49
