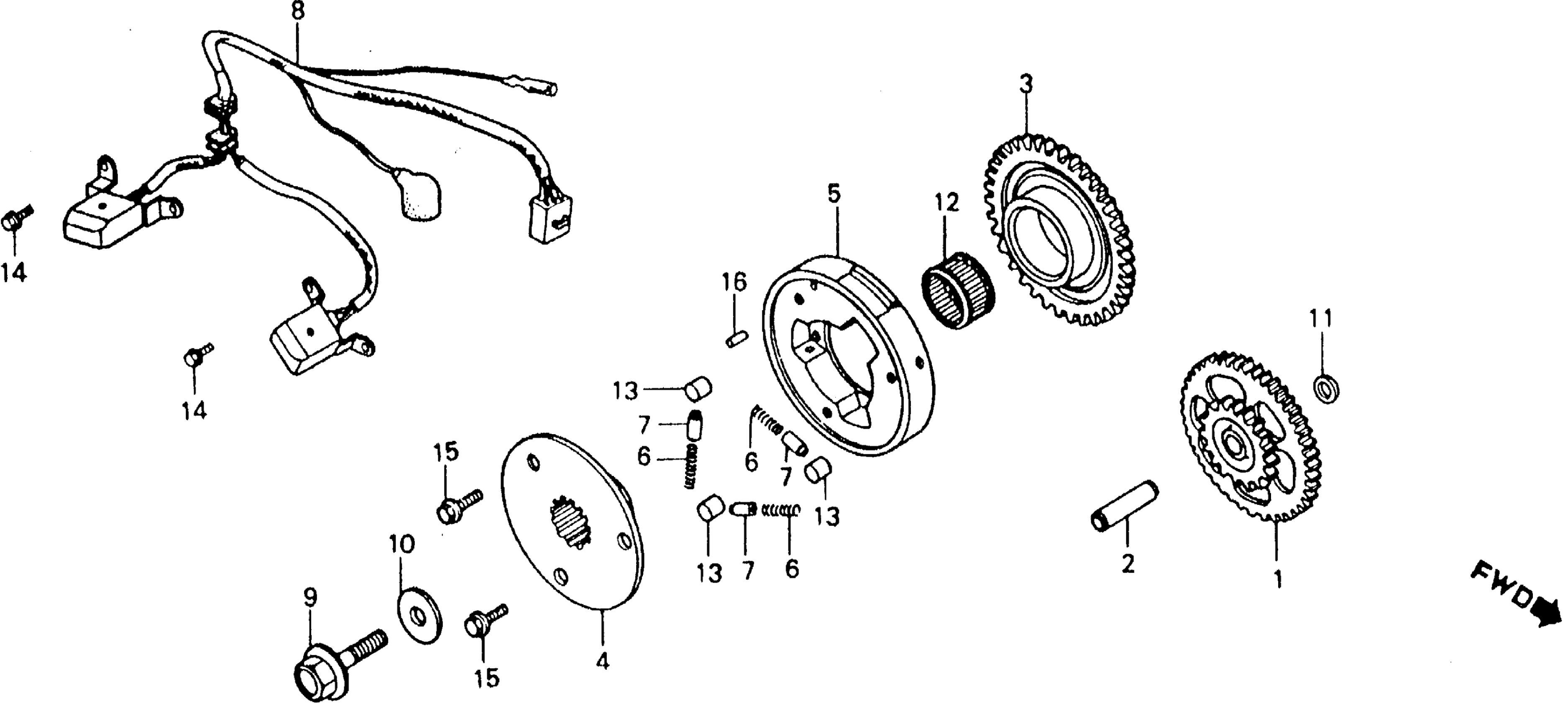

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 PULSE GENERATOR + STARTER CLUTCH Diagram

GEAR, STARTER REDUCTION (21T/82T)

28101-MB0-000

Unavailable

PIN (10X36.5)

28102-ML7-000

$8.66

GEAR, STARTING CLUTCH (48T) (NOT AVAILABLE)

28110-ML7-000

Unavailable

FLANGE, STARTER CLUTCH

28115-ML7-000

Unavailable

CLUTCH, STARTER (OUTER)

28120-ML7-000

Unavailable

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

GENERATOR ASSY., PULSE (TOYO) (NOT AVAILABLE)

30300-ML7-003

Unavailable

BOLT, FLANGE (12X45)

90023-MA6-000

$11.13

WASHER (12X30X4.5)

90401-KK9-960

Unavailable

WASHER (18X10.2)

90405-ML7-000

Unavailable

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.97

BEARING, NEEDLE (30X35X17)

91022-MB0-004

Unavailable

ROLLER (15X13)

91101-516-000

$6.32

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.80

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

BOLT, FLANGE (8X14) This part replaces 95900-08014-08.

95701-08014-08

$1.80

ROLLER (6X15)

96220-60150

$1.49
