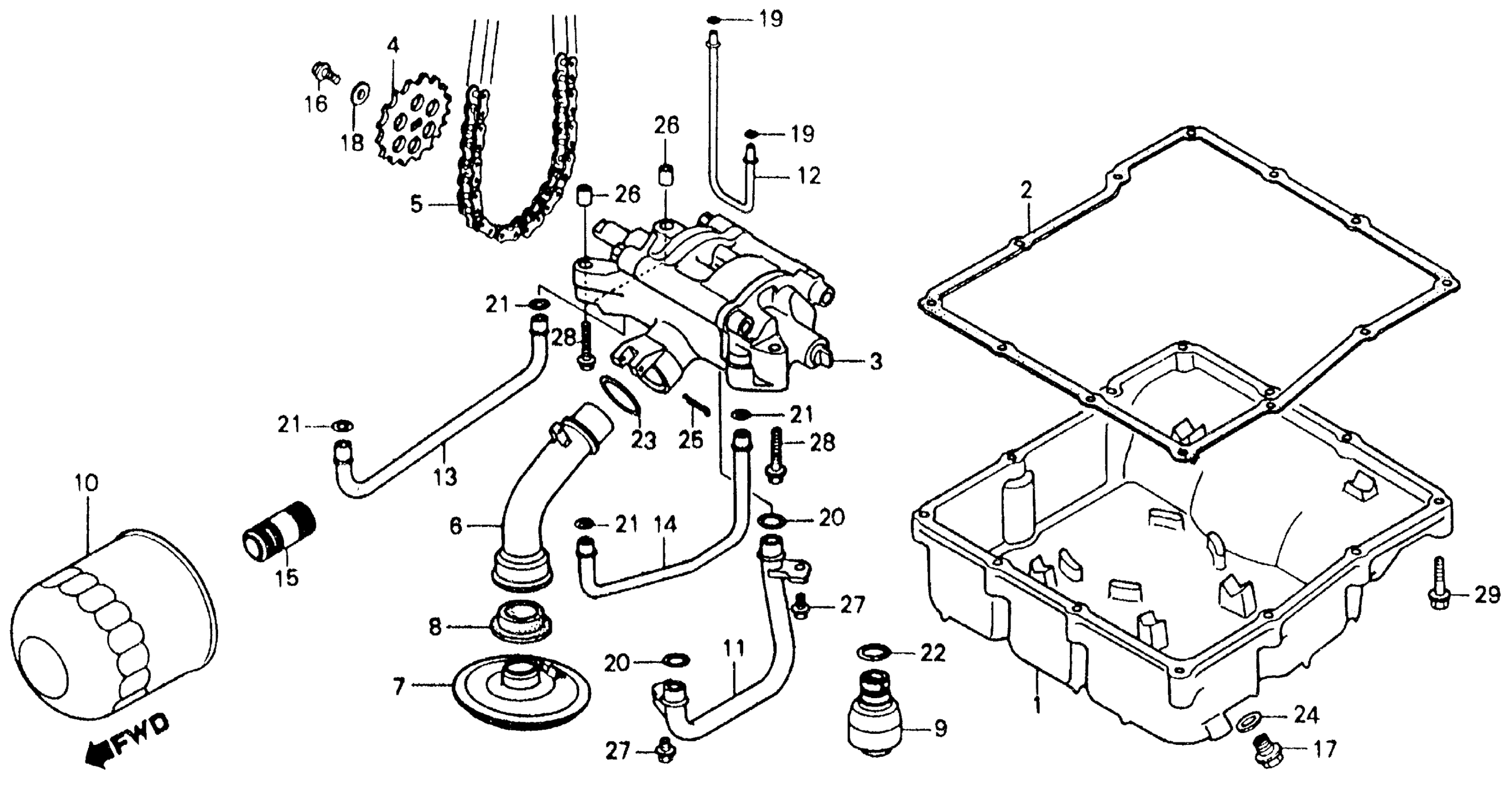

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 OIL FILTER + OIL PAN + OIL PUMP Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-ML7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-ML7-000.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-ML7-306.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN This part replaces 11315-MR7-780.

11315-MY7-000

Unavailable

2

GASKET, OIL PAN

11315-MY7-000

Unavailable

3

PUMP ASSY., OIL This part replaces 15100-ML7-000.

15100-ML7-690

Unavailable

3

PUMP ASSY., OIL

15100-ML7-690

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (25T)

15134-ML7-000

Unavailable

5

CHAIN, OIL PUMP

15140-ML7-003

$35.67

6

PIPE, OIL STRAINER

15151-ML7-000

Unavailable

7

STRAINER, OIL

15153-ML7-000

Unavailable

8

GASKET, OIL STRAINER

15154-ML7-000

Unavailable

9

VALVE ASSY., RELIEF

15220-MJ6-000

Unavailable

10

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

10

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

10

FILTER, OIL

15410-MJ0-405

$13.44

11

PIPE A, OIL

15511-ML7-000

Unavailable

12

PIPE B, OIL

15512-ML7-000

Unavailable

13

PIPE C, OIL

15521-ML7-000

Unavailable

14

PIPE D, OIL

15522-ML7-000

Unavailable

15

BOSS, OIL FILTER

90019-MB0-000

$8.61

16

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

17

BOLT, DRAIN PLUG (12MM) This part replaces 90083-ML7-003.

92800-12000

$3.23

17

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

18

WASHER (6X2.3)

90488-MB0-000

$4.37

19

O-RING (6X2) (NOK)

91307-ML7-004

$2.90

20

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

21

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

22

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

22

O-RING (14.8X2.2)

91313-MG7-004

$3.67

23

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

23

O-RING (21.2X2.4) (ARAI) This part replaces 91331-PC9-004.

91331-PC9-003

$3.13

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, COTTER (2.0X35)

94201-20350

$1.49

26

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

27

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

28

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

29

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

29

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
