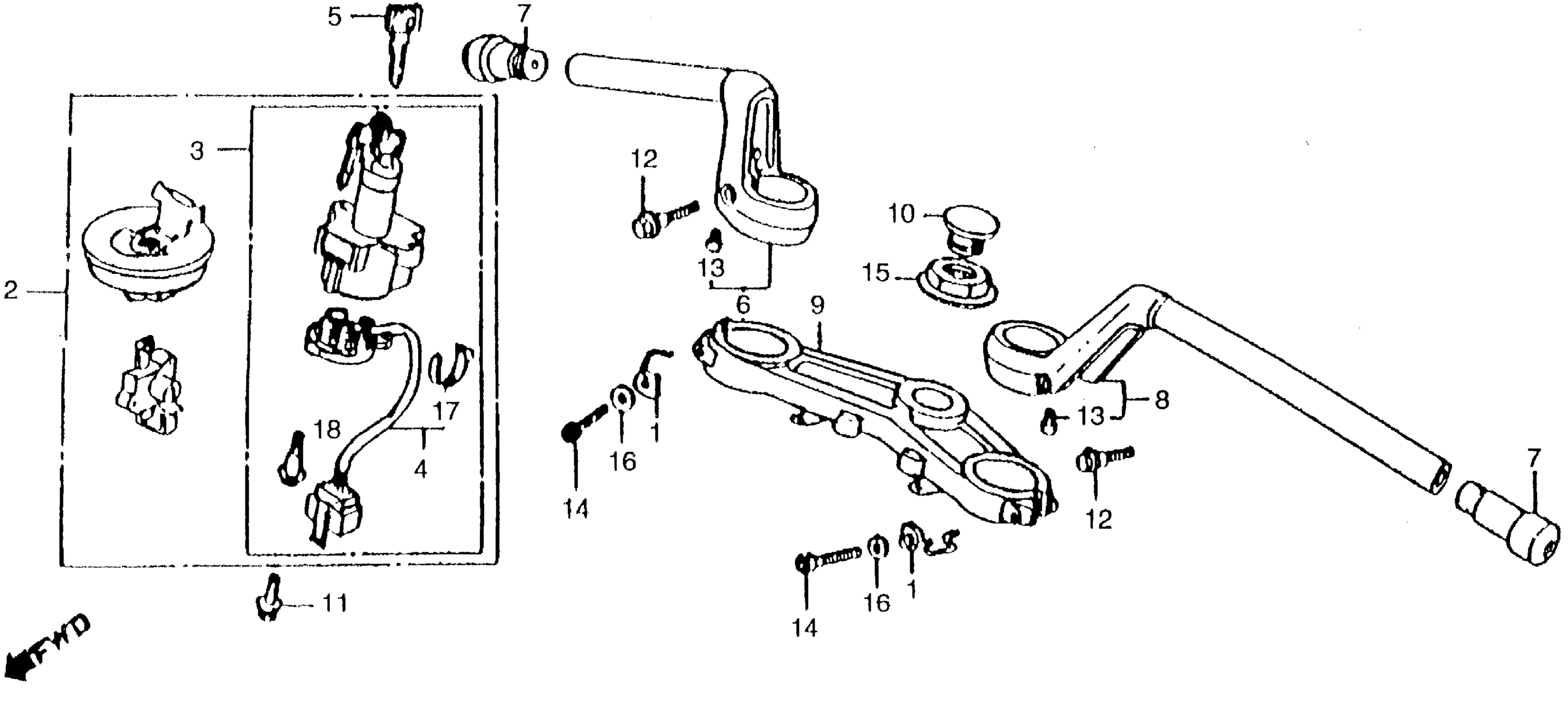

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

GUIDE, CABLE

17908-MB2-010

Unavailable

2

LOCK SET (NOT AVAILABLE)

35010-ML7-670

Unavailable

3

SWITCH ASSY., COMBINATION This part replaces 35100-ML7-671.

35100-ML7-672

Unavailable

3

SWITCH ASSY., COMBINATION

35100-ML7-672

Unavailable

4

BASE, CONTACT

35101-ML7-671

Unavailable

5

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

6

HANDLEBAR (CLEAR)

53100-ML7-000ZB

Unavailable

7

WEIGHT, HANDLEBAR *NH146M* (ACCURATE SILVER METALLIC)

53105-ML7-000ZA

Unavailable

8

HANDLEBAR, L. *CLEAR* (CLEAR) (NOT AVAILABLE)

53150-ML7-000ZB

Unavailable

9

BRIDGE, FORK TOP

53230-ML7-670

Unavailable

10

CAP, STEERING STEM

53232-MJ4-670

$13.43

11

BOLT, SPECIAL (8X16)

90101-MK4-300

Unavailable

12

BOLT, SPECIAL FLANGE (8X35) This part replaces 90106-KM9-000.

90107-ME7-000

$5.16

13

BOLT, TORX (8X10)

90111-MJ6-700

Unavailable

14

BOLT, SOCKET (7X46)

90151-MB2-000

Unavailable

15

NUT, STEERING STEM

90304-MJ4-670

$15.40

16

WASHER, PLAIN (7MM)

90511-MB2-000

Unavailable

17

BAND, SELF-LOCK

91058-MG9-681

$2.21

18

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

18

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97
