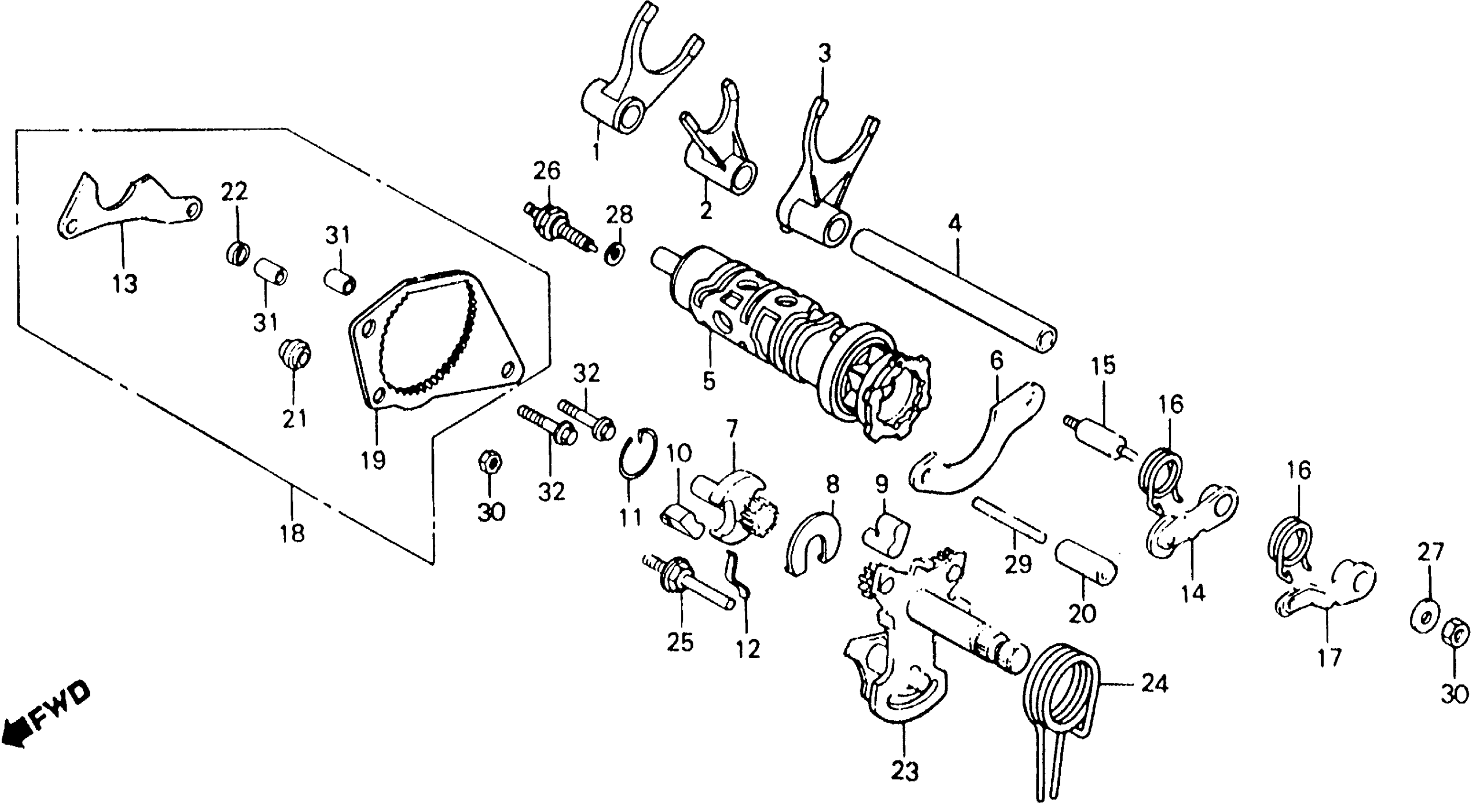

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-ML7-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-ML7-000

Unavailable

3

FORK, L. GEARSHIFT

24213-ML7-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-ML7-000

Unavailable

5

DRUM, GEARSHIFT

24310-ML7-000

Unavailable

6

PLATE, DRUM SETTING

24315-KE8-000

$5.20

7

SHIFTER, DRUM

24321-ML7-000

Unavailable

8

PLATE, SHIFTER GEAR SIDE

24322-MJ8-000

Unavailable

9

PAWL A, RATCHET

24324-KE7-000

Unavailable

10

PAWL B, RATCHET

24325-KE7-000

Unavailable

11

SPRING, RATCHET

24326-KE8-000

Unavailable

12

SPRING, RATCHET (B)

24327-KE7-003

Unavailable

13

PLATE, RATCHET GUIDE

24328-KE7-000

Unavailable

14

STOPPER, GEARSHIFT DRUM

24430-KE8-000

$13.13

15

BOLT, GEARSHIFT DRUM STOPPER

24434-KE8-000

Unavailable

16

SPRING, DRUM STOPPER | Use up to Engine SN 2009503 This part replaces 24435-ML7-000.

24435-ML7-010

Unavailable

16

SPRING, DRUM STOPPER | Use up to Engine SN 2009503

24435-ML7-010

Unavailable

16

SPRING, DRUM STOPPER

24435-ML7-010

Unavailable

17

STOPPER, GEARSHIFT DRUM NEUTRAL

24440-KE8-000

Unavailable

18

GEAR ASSY., SHIFT (INNER)

24450-KE7-000

Unavailable

19

GEAR, SHIFT (INNER) (45T)

24451-KE8-000

Unavailable

20

COLLAR A, SHIFT GEAR SETTING (INNER)

24452-KE8-000

Unavailable

21

COLLAR B, SHIFT GEAR SETTING (INNER)

24453-KE8-000

Unavailable

22

SPACER, SHIFT GEAR SETTING (INNER)

24454-KE8-000

Unavailable

23

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-ML7-000

Unavailable

24

SPRING, GEARSHIFT RETURN

24651-ML7-000

Unavailable

25

PIN, GEARSHIFT RETURN SPRING

24652-KE8-000

Unavailable

26

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-000.

35600-KE8-003

$18.90

26

SWITCH ASSY., NEUTRAL

35600-KE8-003

$18.90

26

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-010.

35600-KE8-003

$18.90

27

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

28

WASHER, OIL BOLT

90545-300-000

$3.99

29

BOLT, STUD (6X55)

92700-06055-0B

$1.54

30

NUT, HEX. (6MM)

94002-06200

Unavailable

31

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

32

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
