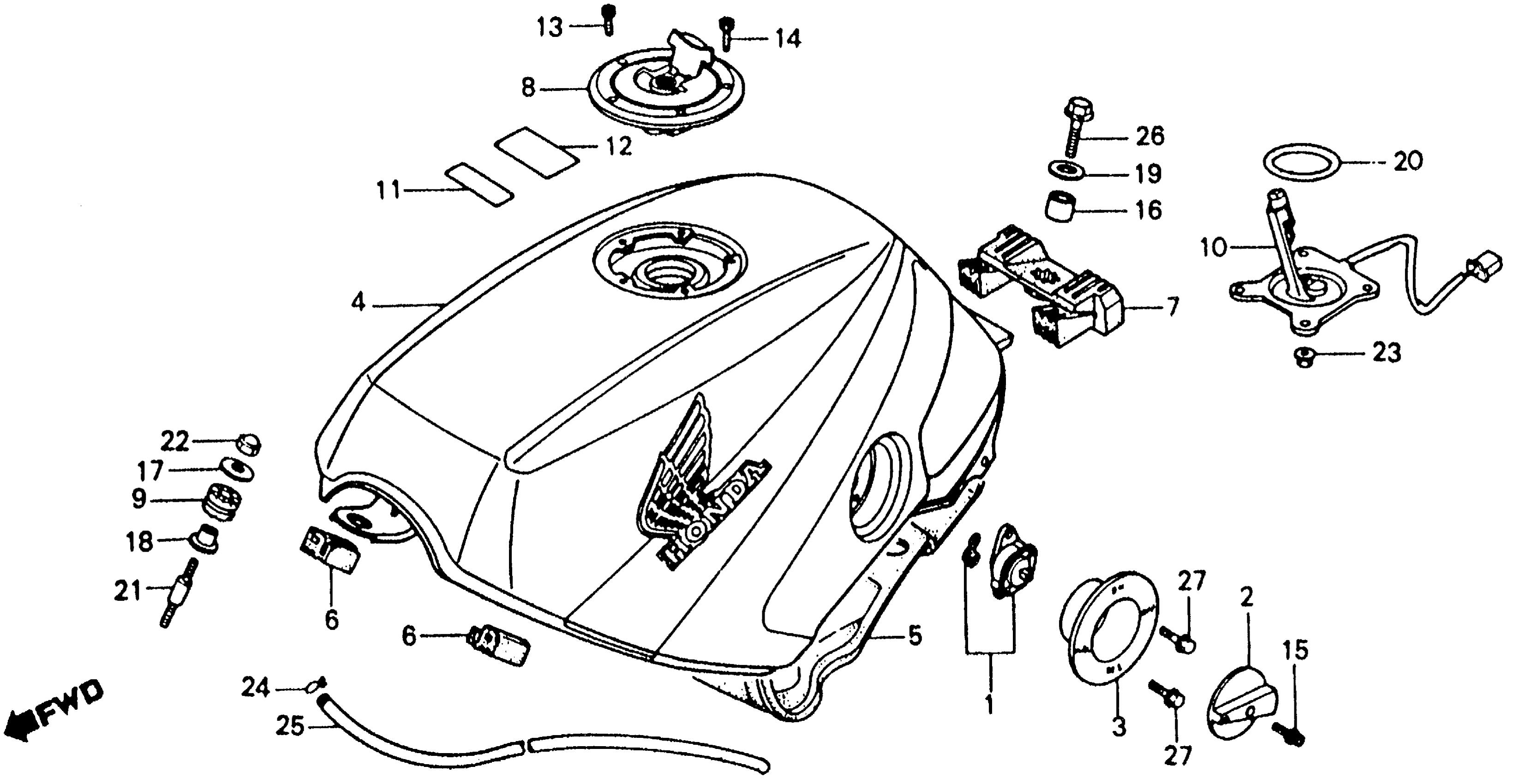

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-MB2-013

$60.22

2

LEVER, PETCOCK This part replaces 16952-MJ4-870.

16952-MJ4-871

Unavailable

2

LEVER, PETCOCK

16952-MJ4-871

Unavailable

3

BASE, PETCOCK | Use up to Frame SN GM000522 This part replaces 16953-MB2-010.

16953-ML7-010

Unavailable

3

BASE, PETCOCK | Use from Frame SN GM000523 This part replaces 16953-ML7-000.

16953-ML7-010

Unavailable

3

BASE, PETCOCK

16953-ML7-010

Unavailable

3

BASE, PETCOCK This part replaces 16953-ML7-700.

16953-ML7-010

Unavailable

4

TANK SET, FUEL *NH138* (WL) (SHASTA WHITE) (NOT AVAILABLE)

175A1-ML7-670ZA

Unavailable

5

PROTECTOR, FUEL TANK HEAT (NOT AVAILABLE)

17570-ML7-000

Unavailable

6

RUBBER, FUEL TANK

17611-ML7-000

$8.53

7

RUBBER, RR. FUEL TANK

17613-473-000

$25.42

8

CAP, FUEL FILLER This part replaces 17620-GT4-691.

17620-GT4-692

Unavailable

8

CAP, FUEL FILLER This part replaces 17620-ML7-007.

17620-GT4-692

Unavailable

8

CAP, FUEL FILLER This part replaces 17620-ML7-701.

17620-GT4-692

Unavailable

9

RUBBER, HEADLIGHT BRACKET

33157-MJ0-000

$5.79

10

SENSOR, FUEL RESERVE (NOT AVAILABLE)

37810-ML7-008

Unavailable

11

LABEL, FR. FORK CAUTION

87517-KM9-640

Unavailable

12

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)

87560-ME9-670ZA

$5.22

13

BOLT, SOCKET (4X6)

90073-ML7-000

Unavailable

14

BOLT, SOCKET (4X23)

90074-ML7-000

Unavailable

15

BOLT, SOCKET (4X13) This part replaces 90102-MB2-000.

90102-MB2-505

Unavailable

15

BOLT, SOCKET (4X13)

90102-MB2-505

Unavailable

16

COLLAR (8MM)

90324-300-000

$4.35

17

WASHER, PLAIN (22X6X1.6)

90404-PD1-000

$2.44

18

COLLAR (6.2X12)

90501-425-000

$4.69

19

WASHER (8.3MM)

90534-011-000

$1.49

20

O-RING (39.5X5)

91305-MC7-000

$3.31

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 90038-250-000.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 90051-200-000.

92900-06028-0B

$1.89

21

BOLT, STUD (6X32) | Use up to Frame SN GM000343

92700-06032-0B

$1.69

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 92700-06040.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

21

BOLT 2, STUD (6X20) | Use up to Frame SN GM000343

92900-06020-0B

$1.72

21

BOLT, STUD (6X28) | Use from Frame SN GM000344

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) | Use from Frame SN GM000344 This part replaces 92900-06028-08.

92900-06028-0B

$1.89

22

NUT, CAP (6MM) | Use from Frame SN GM000344

90201-428-900

$2.23

22

NUT, CAP (6MM) | Use up to Frame SN GM000343

94021-06070-0S

$1.62

23

NUT, FLANGE (6MM)

94050-06080

$1.49

24

CLIP, TUBE (B12)

95002-02120

$2.00

25

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

26

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

26

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

27

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
