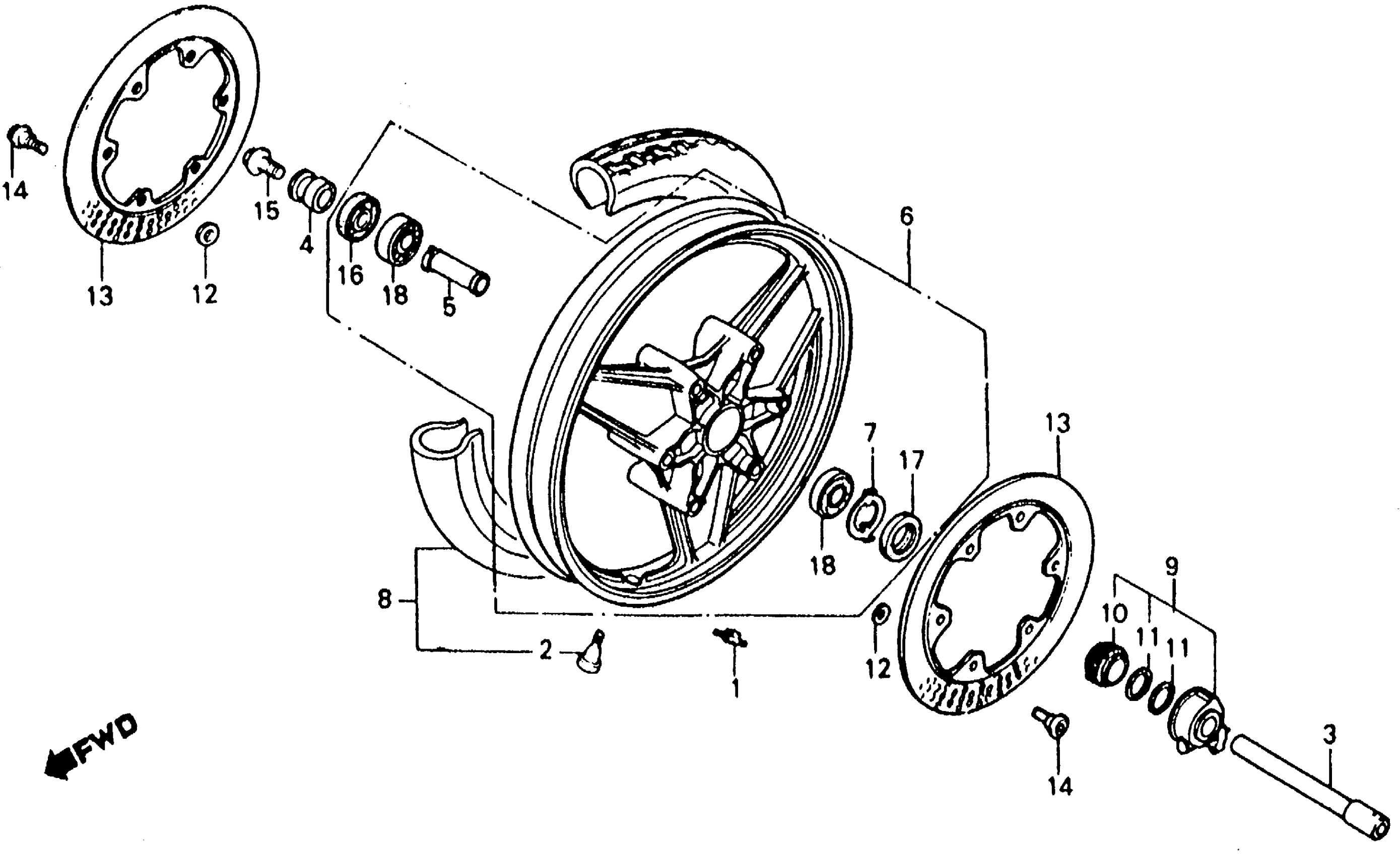

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$11.35

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$14.00

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$12.91

1

WEIGHT, BALANCE (30)

42706-MCF-D60

$12.91

2

VALVE, RIM (BS)

42753-ML7-003

$11.44

2

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

3

AXLE, FR. WHEEL

44301-ML7-000

Unavailable

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-ML7-000.

44311-MM8-000

$17.20

4

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$17.20

5

COLLAR, FR. AXLE DISTANCE

44620-ML7-000

Unavailable

6

WHEEL SET, FR. *NH138* (SHASTA WHITE)

44650-ML7-305ZA

Unavailable

7

RETAINER, GEAR BOX

44680-ML7-000

$4.73

8

TIRE (110/90V16) This part replaces 44710-ML7-671.

44710-ML7-602

Unavailable

8

TIRE (110/90V16) This part replaces 44710-ML7-672.

44710-ML7-602

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR (YAMADA)

44800-ML7-003

$111.91

10

GEAR, SPEEDOMETER (YAMADA)

44806-ML7-003

$31.20

11

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.80

12

SHIM, DAMPING

45128-ME2-003

Unavailable

13

DISK, FR. BRAKE

45251-KT8-000

Unavailable

13

DISK, FR. BRAKE This part replaces 45251-ML7-000.

45251-KT8-000

Unavailable

14

BOLT, FR. DISK (8X24)

90105-KR3-000

$5.64

15

BOLT, FR. AXLE

90305-ML7-000

$9.03

16

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$8.24

16

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$8.24

16

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$8.24

17

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$7.77

17

DUST SEAL (45X55X5) (ARAI) This part replaces 91258-ML7-004.

91258-ML7-003

$7.77

18

BEARING, RADIAL BALL (6004UU)

96150-60040-10

$16.29
