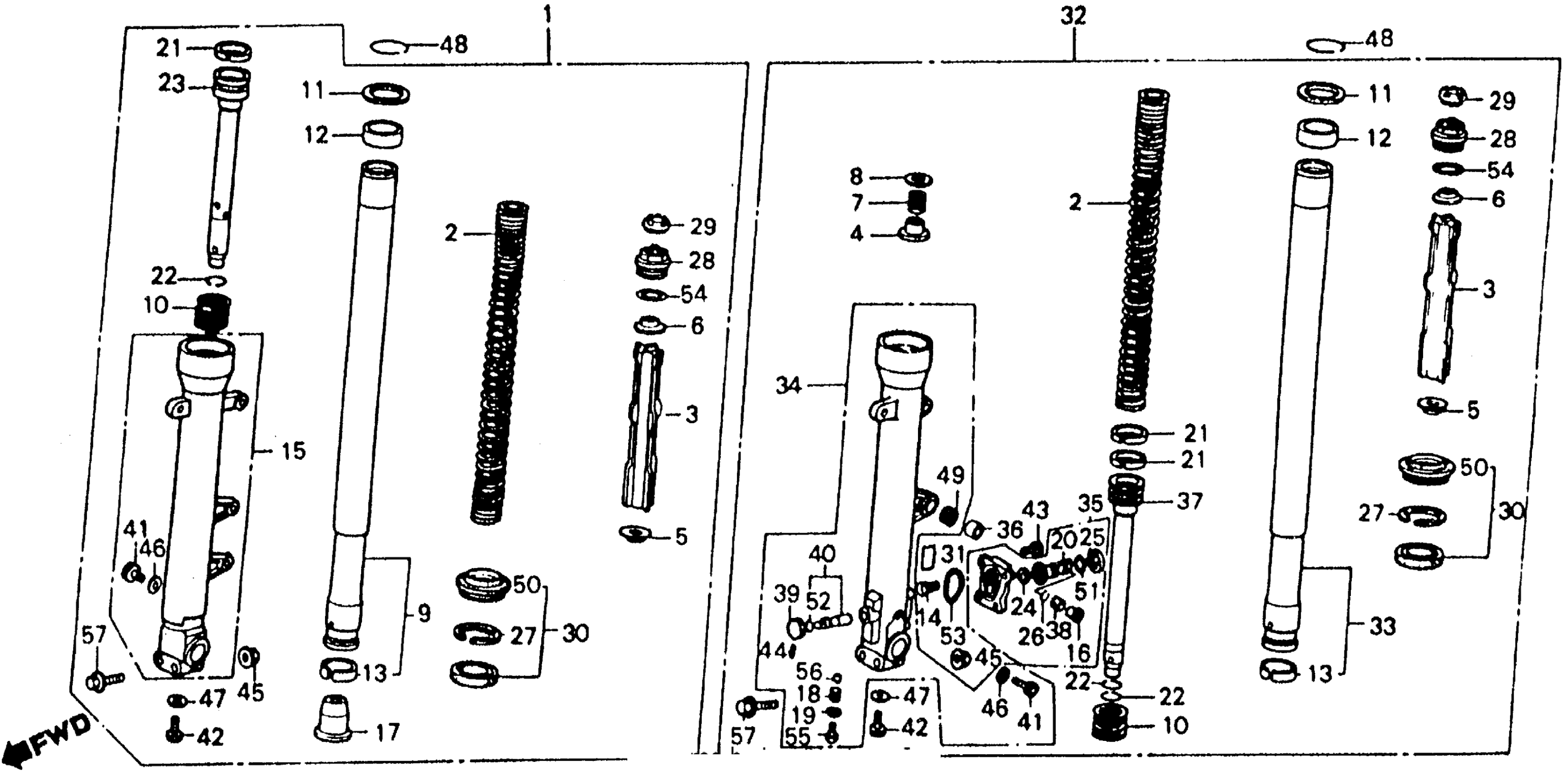

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-ML7-003

Unavailable

2

SPRING, FR. FORK

51401-ML7-003

Unavailable

3

COLLAR, SPRING

51402-ML7-003

Unavailable

4

VALVE, OIL LOCK (NOT AVAILABLE)

51403-MA6-003

Unavailable

5

PLATE, SPRING JOINT

51403-ME4-003

$7.15

6

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-ML7-003

Unavailable

7

SPRING, OIL LOCK VALVE (NOT AVAILABLE)

51404-MA6-003

Unavailable

8

SEAT, SPRING

51405-MA6-003

Unavailable

9

PIPE, R. FR. FORK (NOT AVAILABLE) This part replaces 51410-ML7-003.

51410-ML7-691

Unavailable

10

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.61

11

RING, BACK-UP

51412-461-003

$7.04

12

BUSH, GUIDE

51414-MN4-003

$13.34

12

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

13

BUSH, SLIDER This part replaces 51415-ML7-003.

51415-KSE-A71

$8.89

13

BUSH, SLIDER This part replaces 51415-MN4-003.

51415-KSE-A71

$8.89

14

SPRING, PISTON

51418-ML7-003

Unavailable

15

CASE, R. (LOWER)

51421-ML7-003

Unavailable

16

COLLAR, PISTON

51423-MJ0-003

$11.76

17

PIECE, OIL LOCK

51432-ML7-003

Unavailable

18

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

19

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.92

20

PISTON

51436-ML7-003

Unavailable

21

RING, PISTON

51437-ME4-003

$9.61

22

RING, PISTON STOPPER

51439-340-300

Unavailable

23

PIPE, SEAT

51440-ML7-003

Unavailable

24

RUBBER, STOPPER (NOT AVAILABLE)

51441-ML7-003

Unavailable

25

BOOT, PISTON CASE

51442-MJ0-003

$9.72

26

RING, STOPPER

51445-MJ0-003

$2.59

27

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

28

BOLT ASSY., FR. FORK

51450-ML7-003

Unavailable

29

CAP, AIR VALVE

51457-KM4-003

Unavailable

30

SEAL SET, FR. FORK

51490-KAZ-003

$33.45

30

SEAL SET, FR. FORK This part replaces 51490-ML7-305.

51490-KAZ-003

$33.45

31

MARK, FR. FORK

51496-MC7-670

$4.99

32

CUSHION ASSY., L. FR. (SHOWA) This part replaces 51500-ML7-003.

51500-ML7-033

Unavailable

32

CUSHION ASSY., L. FR. (SHOWA) This part replaces 51500-ML7-023.

51500-ML7-033

Unavailable

32

CUSHION ASSY., L. FR. (SHOWA)

51500-ML7-033

Unavailable

33

PIPE, L. FR. FORK (NOT AVAILABLE) This part replaces 51510-ML7-003.

51510-ML7-691

Unavailable

34

CASE, L. (LOWER)

51521-ML7-003

Unavailable

35

CASE, PISTON This part replaces 51530-ML7-003.

51530-ML7-013

Unavailable

35

CASE, PISTON

51530-ML7-013

Unavailable

36

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

$11.73

37

PIPE B, SEAT

51540-ML7-003

Unavailable

38

BUSH, RUBBER

51545-MJ0-003

$9.38

39

PLATE, ADJUSTER (NOT AVAILABLE)

51558-MK3-003

Unavailable

40

ROD SET, ADJUSTER

51591-MK3-305

Unavailable

41

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

42

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

42

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.89

43

BOLT, SOCKET (5X13.5)

90116-ML7-003

$5.63

44

SCREW, SOCKET

90150-MK3-003

Unavailable

45

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

45

NUT, FLANGE (8MM)

90309-428-731

$3.35

46

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

47

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

48

RING, SNAP

90602-KM9-000

Unavailable

49

BEARING, NEEDLE (1422)

91071-ML7-003

$43.08

50

DUST SEAL

91254-KAZ-003

$17.00

50

DUST SEAL This part replaces 91254-ML7-003.

91254-KAZ-003

$17.00

51

O-RING

91304-ML7-003

Unavailable

52

O-RING

91310-MJ0-003

$2.61

53

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

54

O-RING (30.2X2.4)

91356-MJ6-741

$2.95

55

SCREW, PAN (5X6)

93500-05006-0G

$1.49

55

SCREW, PAN (5X6) This part replaces 93500-05006-1G.

93500-05006-0G

$1.49

56

BALL, STEEL (#5) (5/32)

96211-05000

$1.49

57

BOLT, FLANGE (8X60)

96400-08060-00

Unavailable
