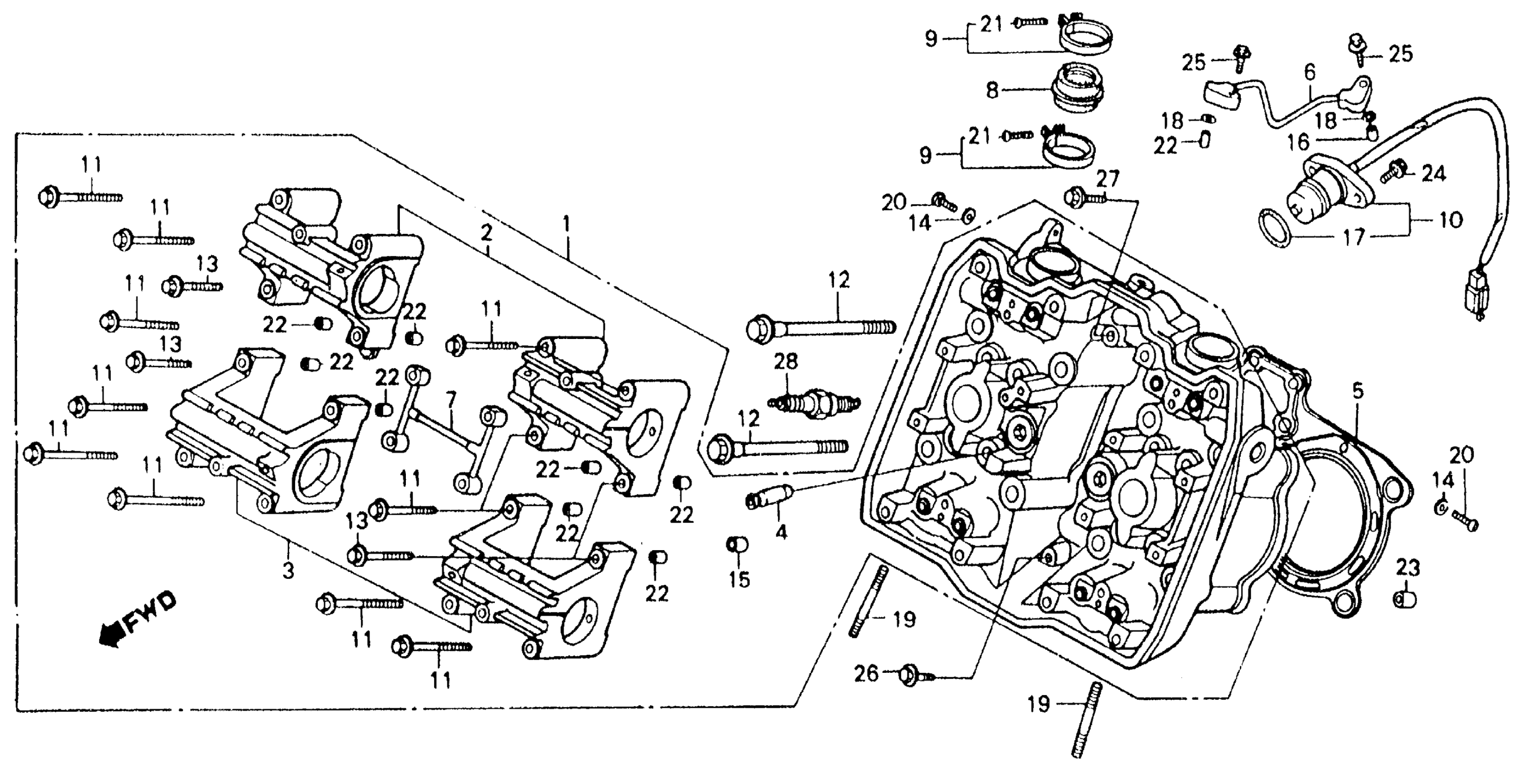

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., FR. (NOT AVAILABLE)

12010-ML7-000

Unavailable

2

HOLDER SET, CAMSHAFT (A-B) (NOT AVAILABLE)

12011-ML7-305

Unavailable

3

HOLDER SET, CAMSHAFT (C-D)

12012-ML7-305

Unavailable

4

GUIDE, VALVE

12204-ML7-305

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-ML7-023.

12251-ML7-921

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-ML7-690.

12251-ML7-921

Unavailable

5

GASKET, CYLINDER HEAD

12251-ML7-921

Unavailable

6

PIPE, FR. FEEDER

15310-ML7-000

Unavailable

7

PIPE, OIL PASSAGE

15330-ML7-000

Unavailable

8

INSULATOR, CARBURETOR

16211-ML7-000

$19.41

9

BAND, INSULATOR (NOT AVAILABLE)

16219-ML7-000

Unavailable

10

PULSER ASSY., CAM (TOYO)

36140-ML7-003

Unavailable

11

BOLT, FLANGE (6X60)

90004-ML7-000

Unavailable

12

BOLT, FLANGE (9X90)

90007-ML7-000

Unavailable

13

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

14

WASHER, SEALING (5MM)

90452-323-000

$1.59

15

PIN, DOWEL (11X14.8)

90702-ML7-000

Unavailable

16

ORIFICE, FEEDER (1.5)

90806-ML7-000

Unavailable

17

O-RING (20.8X2.4) This part replaces 91308-ML7-000.

91351-MG7-003

$2.72

17

O-RING (20.8X2.4)

91351-MG7-003

$2.72

18

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

18

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

18

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

19

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

19

BOLT, STUD (6X25)

92900-06025-0E

$1.49

20

SCREW, PAN (5X8)

93500-05008-0G

$1.49

21

SCREW, PAN (5X28)

93500-05028-0G

$1.49

22

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

23

PIN A, DOWEL (12X20)

94301-12200

$2.29

24

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

25

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

27

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

28

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

28

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

28

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

28

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
