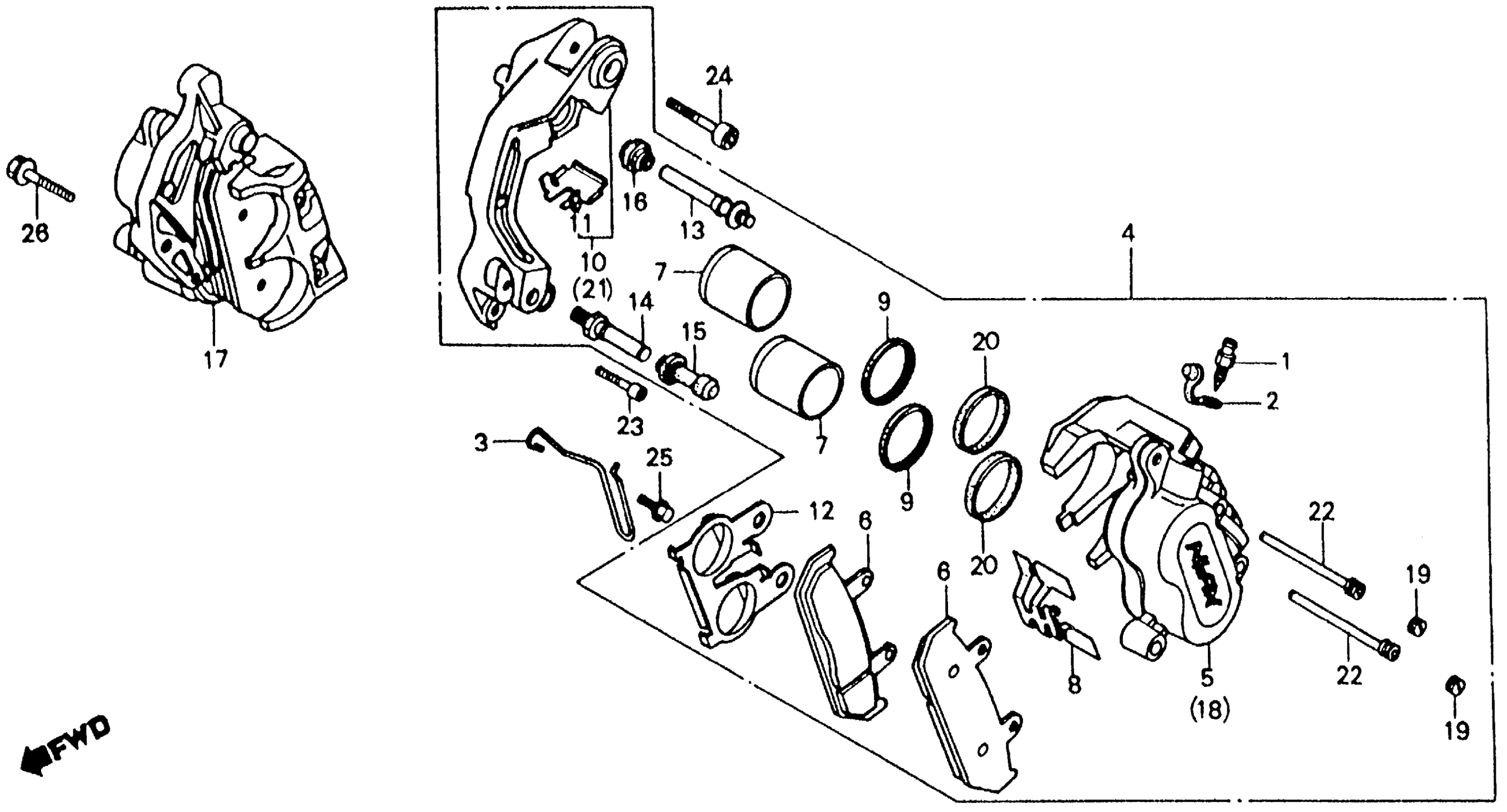

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-ML7-P10

$46.00

NI

PAD SET, FR. This part replaces 451A0-ML7-670.

06455-ML7-P10

$46.00

1

SCREW, BLEEDER

43352-568-003

$7.39

2

CAP, BLEEDER

43353-461-771

$4.70

3

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$8.81

4

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-ML7-017.

45100-ML7-027

Unavailable

4

CALIPER ASSY., L. FR. (NISSIN)

45100-ML7-027

Unavailable

5

BODY, L. CALIPER

45101-ML7-006

Unavailable

6

PAD COMP,FR This part replaces 45105-ML7-007.

45105-ML7-027

Unavailable

6

PAD COMP,FR This part replaces 45105-ML7-017.

45105-ML7-027

Unavailable

7

PISTON This part replaces 45107-ML7-006.

45107-ML7-692

Unavailable

7

PISTON

45107-ML7-692

Unavailable

8

SPRING, PAD

45108-ML4-006

$9.87

9

DUST SEAL

45109-166-006

$5.97

10

BRACKET, L.

45110-ML7-006

Unavailable

11

RETAINER

45112-MG3-006

$6.76

12

PROTECTOR (NOT AVAILABLE)

45116-ML7-006

Unavailable

13

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$13.86

13

BOLT A, BOLT

45131-HA5-672

$13.86

14

PIN, BOLT

45131-166-016

$7.10

15

BUSH, PIN

45132-166-016

$5.07

16

BOOT B

45133-MA3-006

$5.07

17

CALIPER ASSY., R. FR. This part replaces 45200-ML7-017.

45200-ML7-027

Unavailable

17

CALIPER ASSY., R. FR.

45200-ML7-027

Unavailable

18

CALIPER, R.

45201-ML7-006

Unavailable

19

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.76

19

PLUG, PIN

45203-MG3-016

$4.76

20

SEAL, PISTON

45209-166-006

$7.76

21

BRACKET, R.

45210-ML7-006

Unavailable

22

PIN, HANGER This part replaces 45215-KA3-731.

45215-KA3-732

$10.34

22

PIN, HANGER

45215-KA3-732

$10.34

23

BOLT, SOCKET (6X25)

90105-MJ1-000

Unavailable

24

BOLT, SOCKET (8X36)

90131-ML7-000

$5.07

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.48

25

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

26

BOLT, FLANGE (8X32)

96400-08032-07

$1.62
